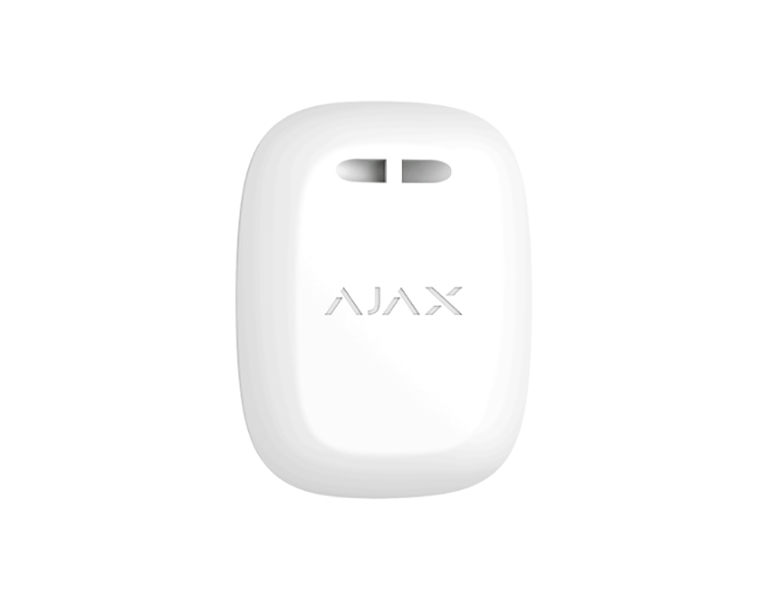

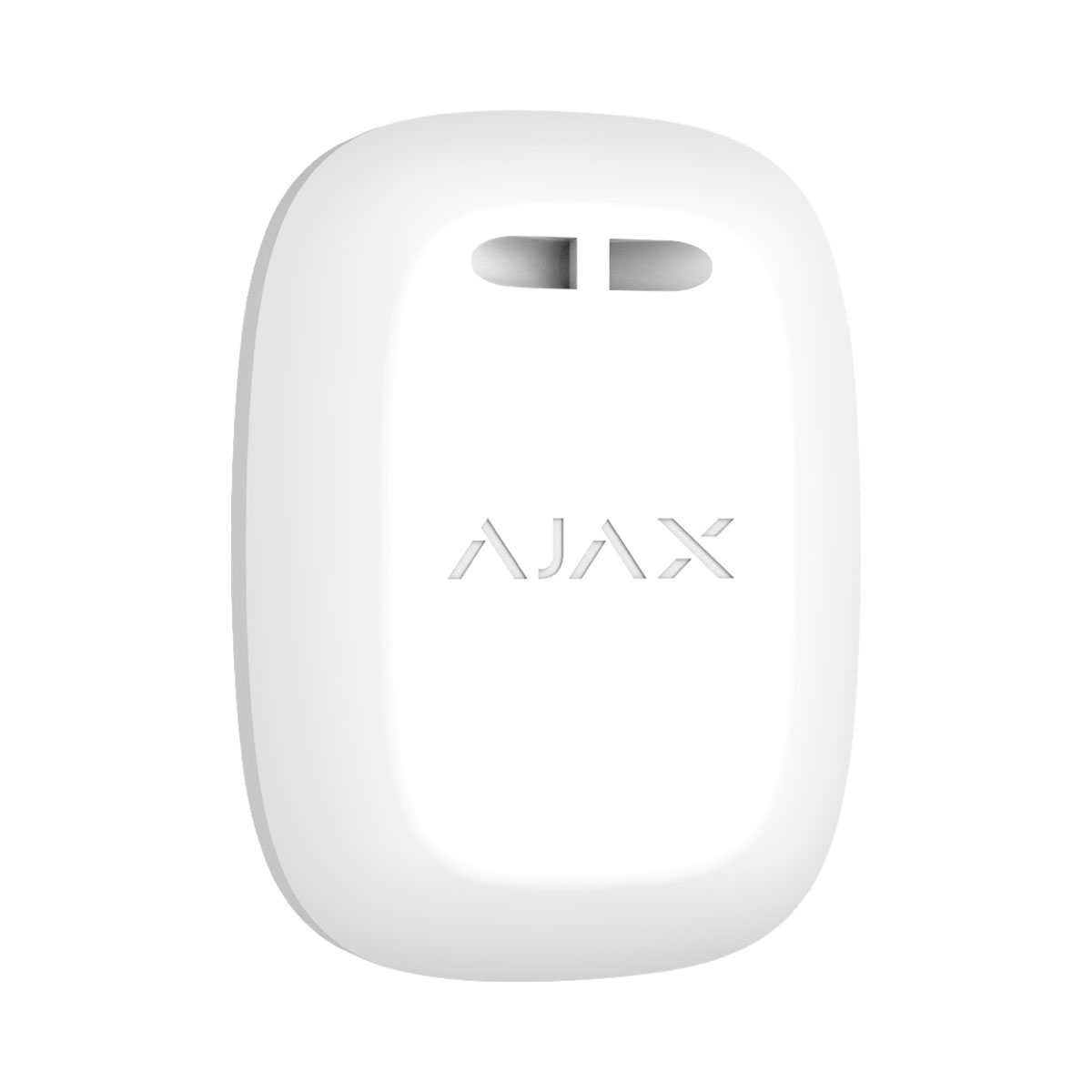

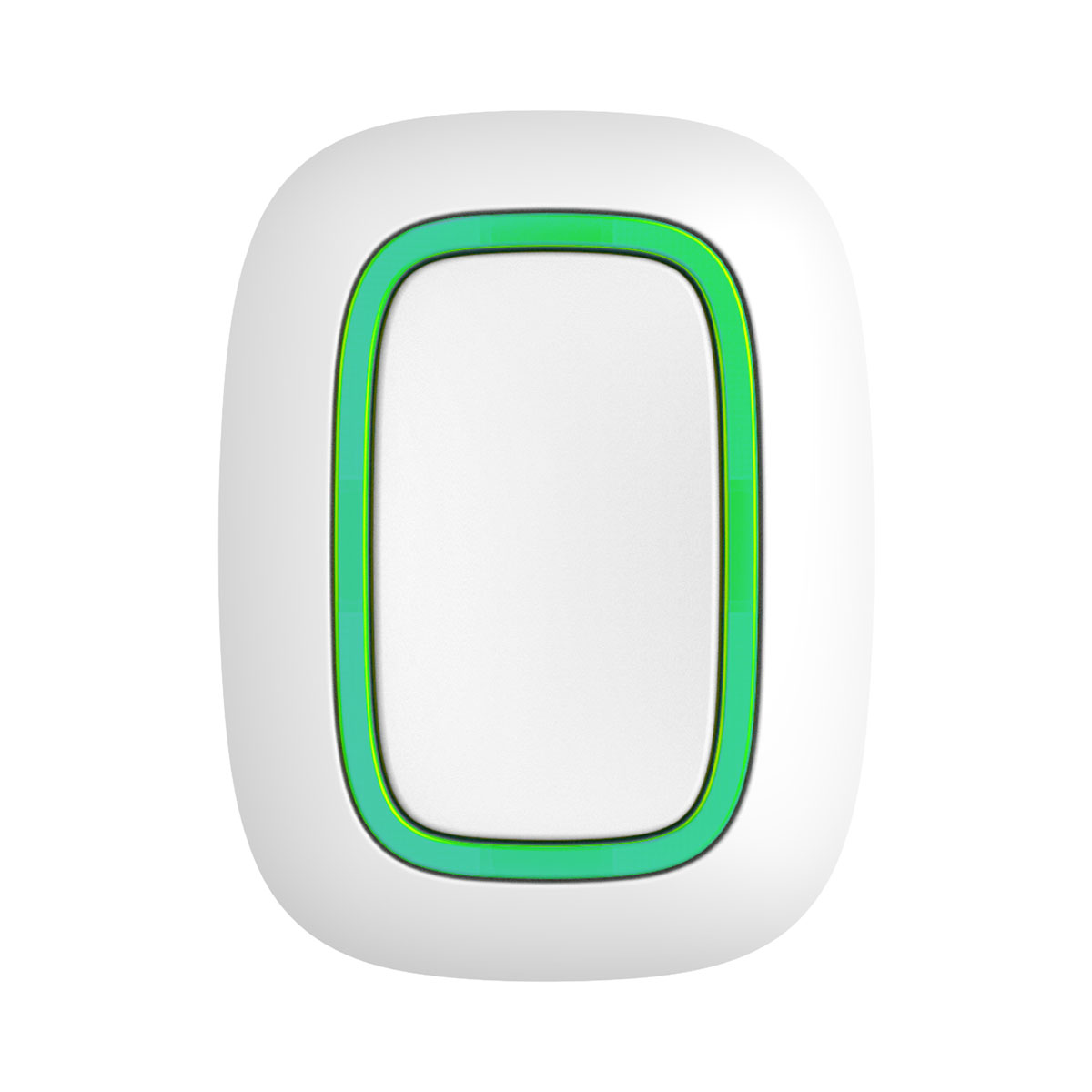

AJAX SYSTEMS AJ-BUT-W - BUTTON WHITE

Κωδικός προϊόντος:
AJ-BUT-W
Άμεσα διαθέσιμο
AJAX SYSTEMS AJ-BUT-W - BUTTON WHITE
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• No need of waking up the device for its triggering
• Configuring in the Ajax mobile and desktop apps
• Protection against accidental alarm activation: double or long press
• Pairing with the security system via QR code

Panic button
In Panic mode, Button supports one of 8 types of events: intrusion, fire, medical help, panic button, gas alarm, malfunction, leakage, or custom. The custom type is used, for example, to notify about switching off the boiler. This event is displayed in the Ajax apps, but is not sent to the monitoring station, and to users via SMS. The event type is configured in the Button settings. The type of event determines the alarm code sent to the security company monitoring station (CMS) and the notification text received by the user. This ensures an accurate response to the threat.

Control of the automation devices
In Control mode, Button activates the automation devices: relays and smart sockets. The button can control one automation device or several devices at once. The automation device can be activated with a long or short press. For example, turn on the light in the store with a Button short press and turn it off with a long one.

Encrypted two-way communication
The security company and users know exactly which button was triggered, the type of button alarm, and when and where it happened. Informative notifications and encrypted two-way communication are provided via the Jeweller radio protocol. The maximum Button radio communication range with a hub or range extender is 1,300 meters in an open space. The protocol uses device authentication for each communication session to protect against spoofing.

Quick pairing and installation
Connecting and configuring process saves time of the installers. To add Button to the system, scan the QR code via Ajax app, assign the name to the device, and select the group. The button is configured remotely. The installer does not need to visit the facility to change the type of alarm or create an automation scenario. Users can carry Button with them. For example, on a string or a key ring. If necessary, the button can be fixed on a flat surface using the Holder bracket. Holder sold separately.

Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.



Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 24 μήνες





Χαρακτηριστικά
Technical Specifications
Compatibility Hub (2G), Hub (4G), Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid(2G), Hub Hybrid(4G), Hub Plus1, ReX 2, ReX
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:
• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Maximum effective radiated power (ERP) up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation GFSK
Radio communication range up to 1,300 m

Between the device and a hub (or a range extender) in an open space.

Key features
Number of buttons 1
Adjustable event types • Intrusion
• Fire
• Auxiliary alarm
• Panic button
• Gas alarm
• Malfunction
• Leakage
• Custom

If the Custom event type is selected, event notifications will not be sent to the security company monitoring station, and system users will not receive an SMS.

Sabotage protection
Protection against spoofing Device authentication
Communication loss detection after 36s
Detection time depends on Jeweller/Fibra settings.
Power supply
Battery 1 x CR2032
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Enclosure

Operating temperature range From -10°С to +40°С
Operating humidity
Up to 75%
Dimensions 65 × 37 × 10 mm
Weight 16 g
Protection class  IP55
Package contents
Button Jeweller
CR2032 battery (pre-installed)
Quick start guide



1Discontinued product
2To install Hub Hybrid (2G) and Hub Hybrid (4G) into Case D (430), use Module Holder (type B). The installation does not meet the Grade (EN 50131) requirements. The compliant version will be available soon.
