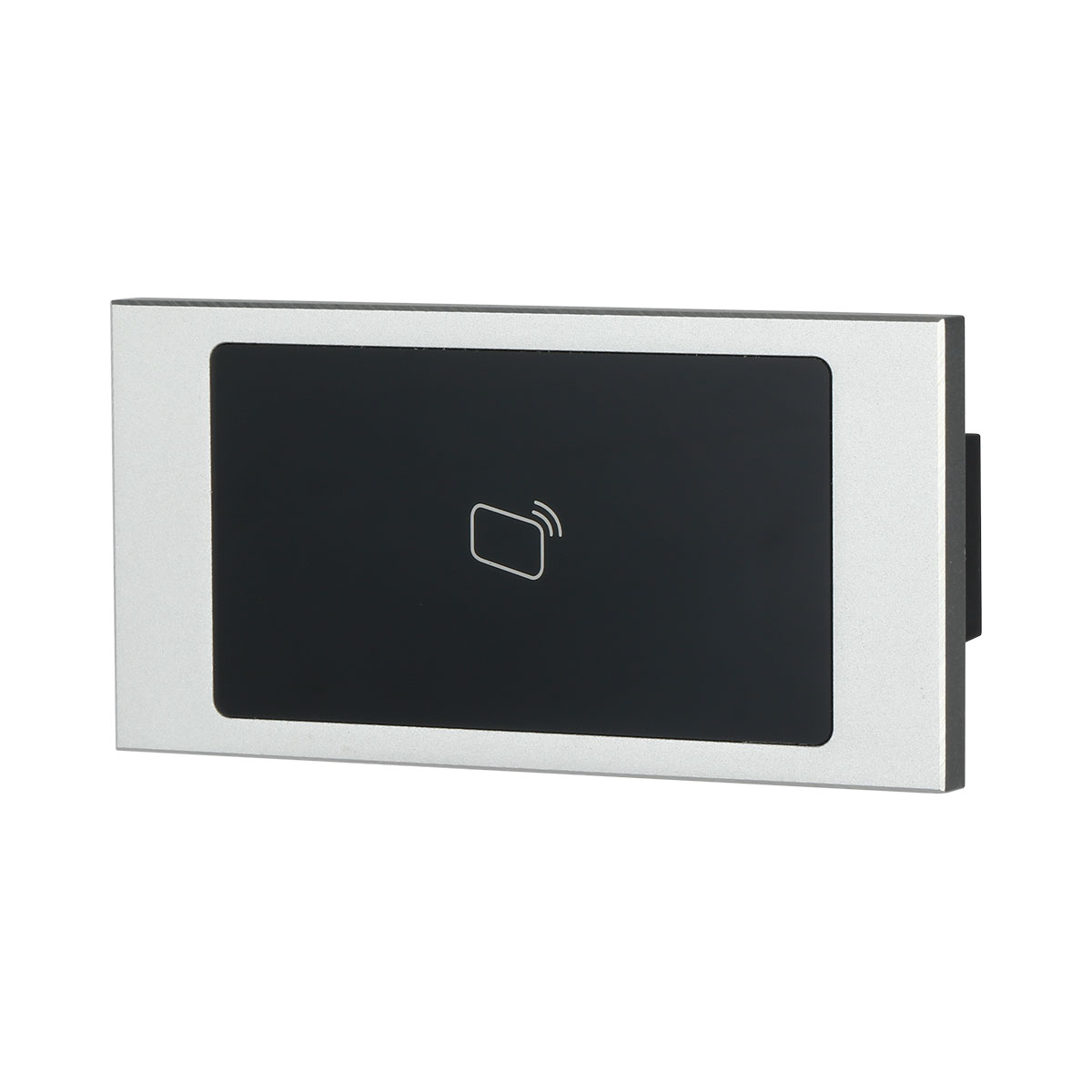

Dahua VTO4202F-MR Card Reader Mifare 13,56MHz Module For Modular Outdoor Station Hybrid
Κωδικός προϊόντος:
VTO4202F-MR
Χαρακτηριστικά
Λήψεις
Χαρακτηριστικά
| System parameters | |
| Main Processor | Embedded Processor |
| Function | |
| Card Type | IC card |
| RFID | |
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42 dBuA/m @10 m |
| Performance | |
| Card Reading Distance | 1 cm–3 cm |
| Casing Material | Aluminum alloy |
| Power consumption | 0.8 W |
| Port | |
| Power Output | 5 VDC (provides power for other modules) |
| General | |
| Appearance Color | Silver |
| Power Supply | 5 VDC (provided by other modules) |
| Installation | Flush Mount; Surface Mount |
| Product Dimensions | 100 mm × 49.90 mm × 28.50 mm |
| Protection | IK07; IP65 (silicone sealant is needed for installation) |
| Operating Temperature | –20 °C to +60 °C |
| Operating Humidity | 10%–90% (RH) |
| Power Consumption | ≤2 W |
| Gross Weight | 0.16 kg |
