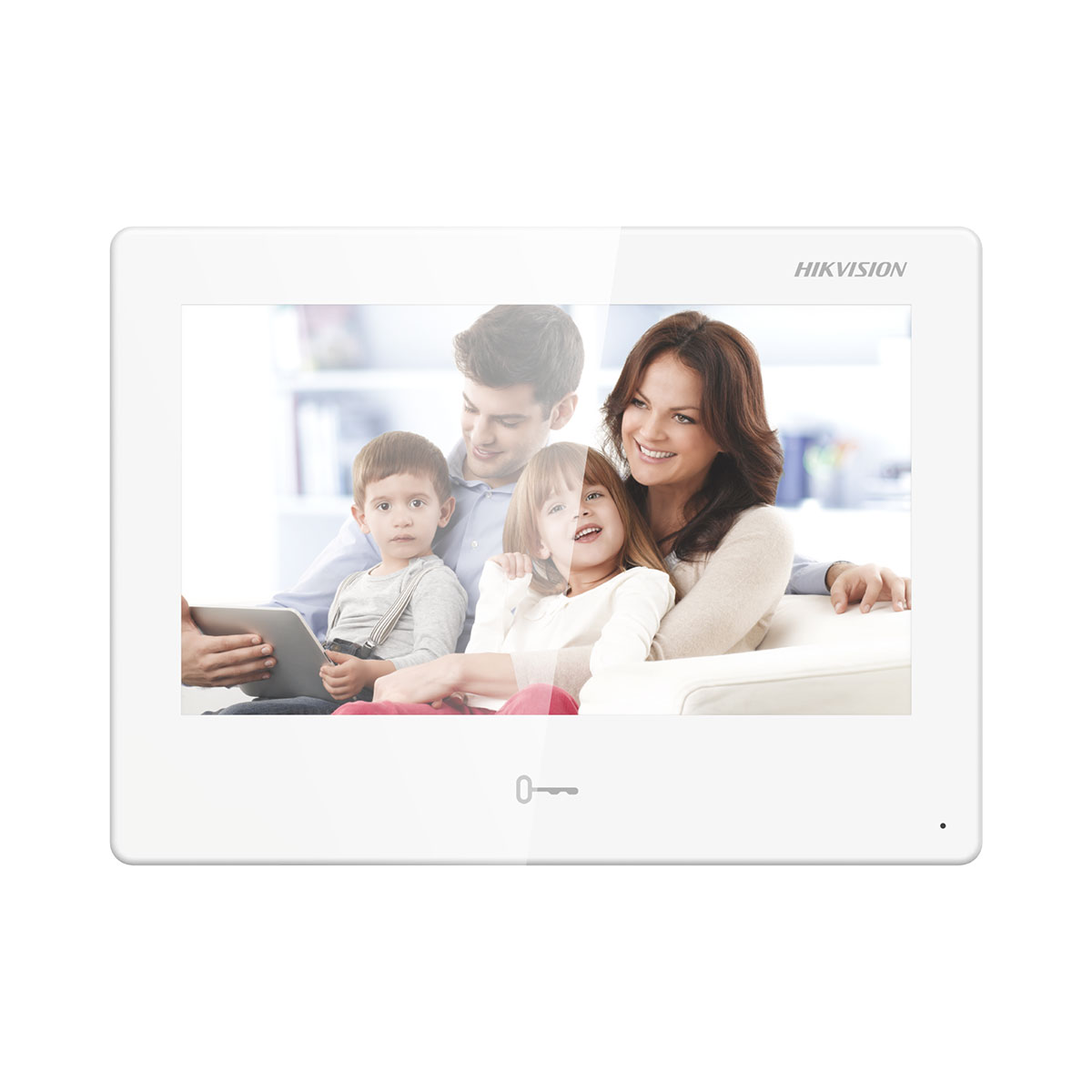

Hikvision DS-KH9310-WTE1(B) All-in-one Indoor Station
.jpg "Hikvision DS-KH9310-WTE1(B) All-in-one Indoor Station")
• 7-inch colorful touch screen with resolution 1024 × 600
• Supports Android app installation
• Open platform for the third-party software integration
• Video intercom & live view on mobile phone all-day
• Built-in Hik-Connect for all-in-one management
• Receives 7 seconds of video verification from alarm systems
| System Parameters | |
| Operating System | Embedded Android operation system |
| ROM | 8 GB Emmc |
| RAM | 2 GB |
| CPU | Embedded processor |
| Display Parameters | |
| Screen Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Video Compression Standard | / |
| Focal Length | / |
| Audio Parameters | |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Event Capacity | 200 |
| Notice Capacity | 16 |
| Linked Indoor Extensions Capacity | 16 |
| Network Parameters | |
| Communication Protocol | TCP/IP, SIP, RTSP |
| Wired Network | Support |
| Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
| Bluetooth Version | / |
| 3G/4G Standard | / |
| Zigbee | / |
| Device Interfaces | |
| Alarm Input | 8 |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| TF Card | Reserved |
| Alarm Output | 1 relay output, 1 alarm output |
| Power Interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Without package: 419.3 g | With package: 694 g |
| Protective Level | / |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 10% to 90% |
| Dimensions | 187 mm × 137 mm × 25.7 mm |
| Battery | / |
| Power Supply | IEEE802.3af, standard PoE 12 VDC, 1 A |
| Application Environment | Indoor |
| Power Consumption | ≤ 8 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Norwegian, Danish |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
