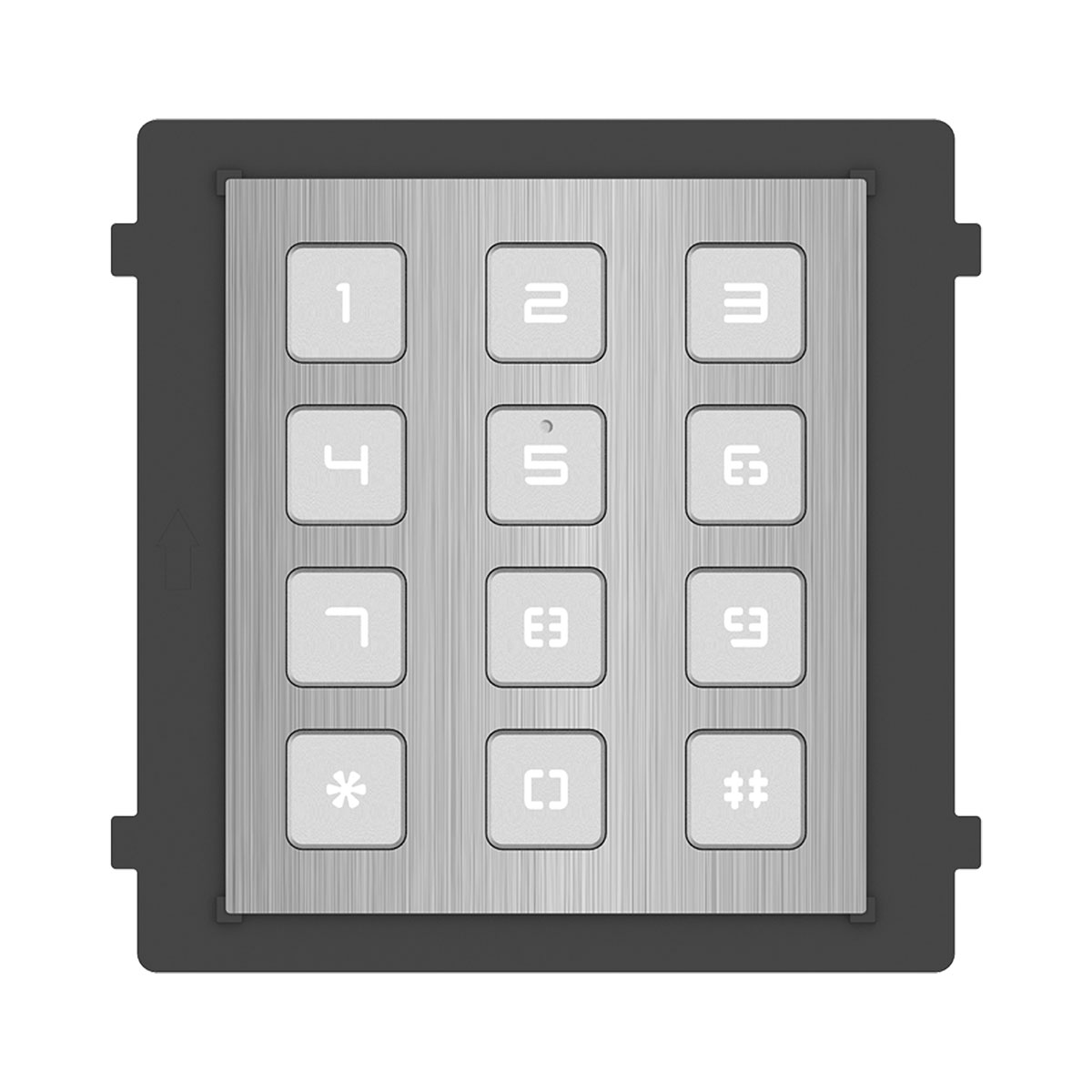

Hikvision DS-KD-KP/S KD8 Series Pro Modular Door Station
Κωδικός προϊόντος:
DS-KD-KP/S
Άμεσα διαθέσιμο
Hikvision DS-KD-KP/S KD8 Series Pro Modular Door Station
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Features:
• Keypad module of modular door station
• Supporting input pin code to open door, call indoor station
• IP65 and IK07 higher protection level
• Backlight compensation behind the keypad buttons
• Easy to use and extend
• Stainless Steel high quality material
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
Χαρακτηριστικά
| Specifications | |
| System parameters | |
| Processor | Embedded MCU Processor |
| Operation | Physical button |
| Interfaces | |
| Moduleconnecting | 2 (1 input, 1 output) |
| Debug | 1 |
| General | |
| Physical button | 12 |
| DIP switch | 8 |
| Power input | 12 VDC (powered by the other module) |
| Power output | 12 VDC (powered for the other module) |
| Power consumption | 1 W |
| Working temperature | -40° C to +55° C |
| Working humidity | 10% to 95% |
| IP protection level | IP65, IK07 |
| Installation | Flush mounting, surface mounting |
| Dimension | 98.5 mm × 100 mm × 34.2 mm |
| Material | Stainless steel |
| Weight | 438 g (with packaging) 190 g (without packaging) |
| Application Environment | Outdoor |
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
