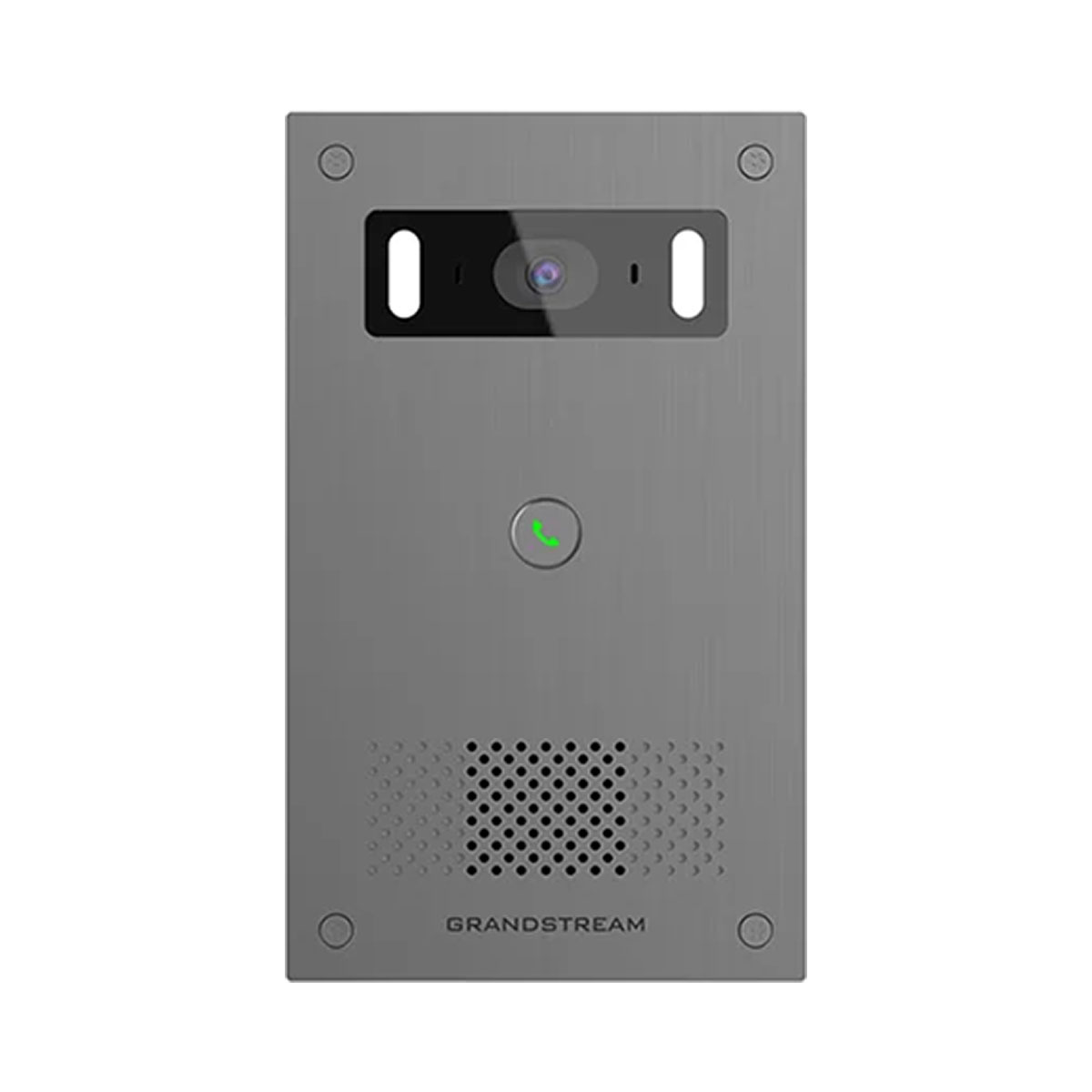

Grandstream GCS3565 Smart Outdoor Intercom
Grandstream GCS3565 Smart Outdoor Intercom
Combining a sleek, modern aesthetic with industrial-grade durability, the GSC3560 and GSC3565 Smart Outdoor Intercoms provide the ultimate audio and video intercom solution for emergency response and device control in high-demand environments, including schools, residential communities, and SMBs. Engineered with a durable metal casing, the entire unit—including the GSC3565 lens area—is IP66 and IK10 rated, guaranteeing communication even in harsh environments. Its versatile port array and PoE support allow you to seamlessly link other terminal devices into one unified security network. Comprehensive cloud-based management provides an ideal solution for remote control and intelligent maintenance, allowing you to process alarm events, view unlock records, and monitor live video in real time.
• A versatile array of ports guarantees flexible integration with your existing devices
• Built-in Solid State Relay (SSR) provides robust protection against external magnetic interference
• High-fidelity communication is powered by integrated dual microphones and a high-performance 10-watt speaker
• Unlock doors via app, SIP call and HTTP API, or with QR code support available for GSC3565
• Experience crystal-clear audio with advanced AI-powered noise suppression (GSC3560 only)
• Engineered to withstand the harshest environments with a certified IP66 rating
• Maximum IK10-rated impact resistance covers the entire unit, including the GSC3565 lens area
• Cloud-based management provides total remote control of your devices beyond the local web UI
• Compatible with Home Assistant for effortless smart control
• Download the SecureAccess App on App Store
• Download the SecureAccess App on Google Play
Application Scenarios
Tailored for versatility, GSC3560 and GSC3565 deliver specialized safety and communication across diverse scenarios. These 2 models ensure public safety in highways and metro stations via one-touch assistance, while supporting senior living communities through inclusive induction loop integration. For any high-security zones, our intercoms bolster emergency response with advanced video analytics and smart light supplementation. Furthermore, future-ready AI audio analytics are currently in development to automatically identify and report distress keywords like "Help" to management platforms across all scenarios.
Standard Deployment
You can initiate the entire access control request on the outdoor intercom by simply pressing the call button. Once a call is triggered, the intercom transmits high-definition audio and video data through the PoE Switch to the UCM. The UCM then routes the call to the Control Station. Upon verification, the intercom receives the authorized release command back through the network and activates its onboard relay to trigger the Electric Strike, smoothly unlocking the door for the visitor.
| Technical Specifications |
|
| Basic | |
| Unit Dimension | 200 mm × 120 mm × 40 mm |
| Package Dimension | 246 mm × 161 mm × 65 mm |
| Unit Weight | 0.732 kg |
| Package Weight | 1.551 kg |
| Installation Methods | Wall Mount, Pole Mount, Flush Mount |

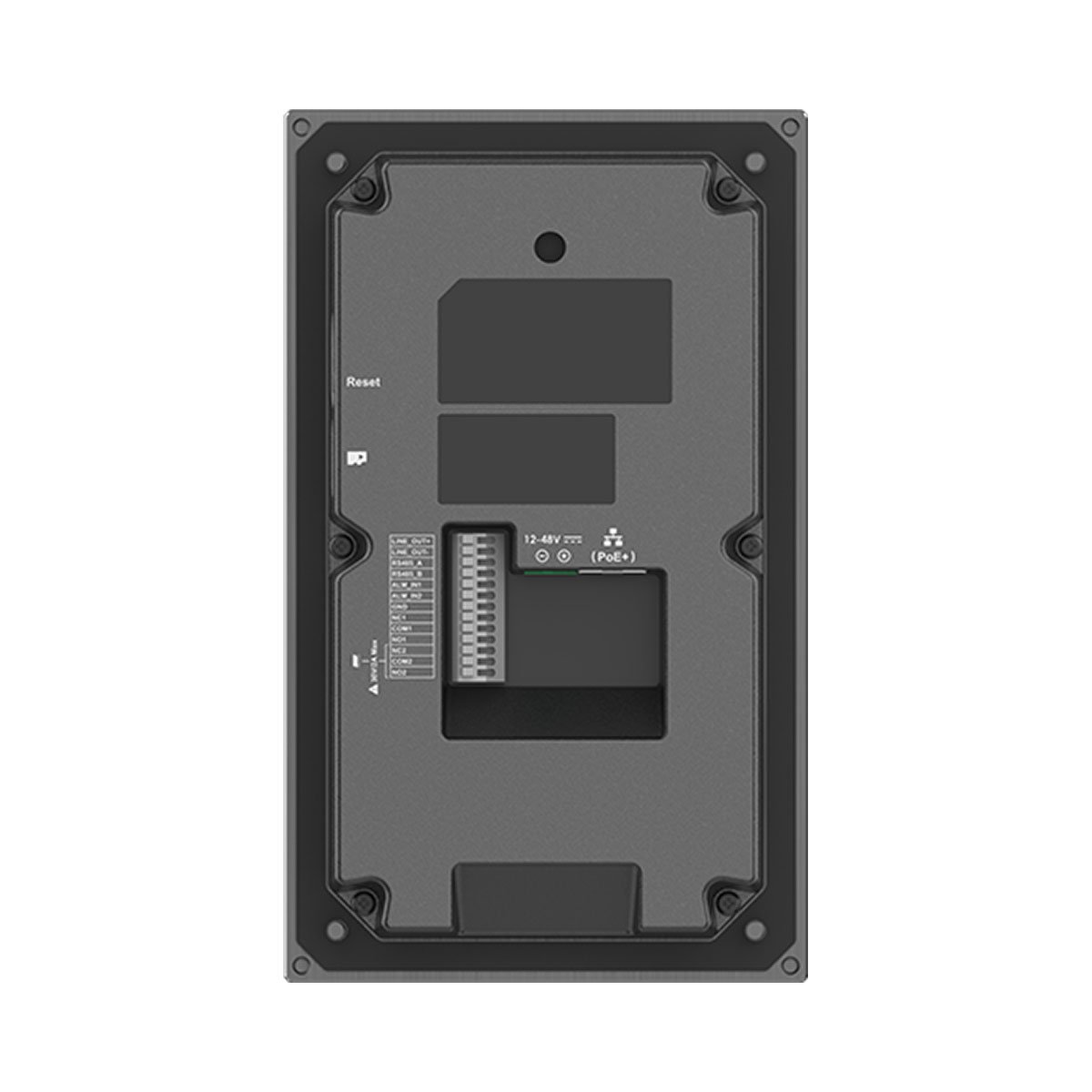

| Ports | |
| Network Port | 1 × 10/100 Mbps PoE Ethernet port |
| Audio Output | 1 channel, differential line out |
| RS-485 | 1 port |
| Alarm Input | 2 channels |
| Relay Output | 2-channel outputs for both lock control and alarm linkage: • Output 1 (NO1/COM1/NC1): Auxiliary relay for alarm linkage and standard lock control • Output 2 (NO2/COM2/NC2): An anti-magnetic Solid State Relay (SSR) for alarm linkage and highsecurity lock control |
| Grounding | 1 × GND port |
| TF Card Slot | 1 × slot (up to 256 GB) |
| Button | |
| Buttons | 1 × Call Button, 1 × Tamper Switch, 1 × Reset Button |
| Power | |
| Power Supply | 12–48 V DC/2 A, 24 W |
| PoE Standard | IEEE 802.3at Class 4 |
| Audio | |
| Microphone | Dual-microphone array with a pickup distance of up to 6 m |
| Speaker | 10 W high-power speaker: 90 dB (Intercom), 100 dB (Broadcast) |
| Video |
|
| Video Compression | H.264 High Profile; Main Profile; Base Profile; Motion JPEG |
| Image Sensor | 1/3″ 4 MP CMOS with HDR support |
| Field of View | H: 127°; V: 70°; D: 152° |
| Light Supplement | 6 White LEDs (Auto-brightness) |
| Max Resolution | 1920 × 1080 |
| Max Frame Rate | 30 frames per second |
| Wide Dynamic Range (WDR) |
Yes, up to 120 dB |
| Video Analytics | AI-based motion detection |
| Environmental Endurance | |
| Operating Temperature |
-40 °C to 70 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Humidity | 10%–90%, non-condensing |
| Certification | |
| Protection Rating | IP66, IK10 for metal surface, buttons and lens area |
| Compliance | FCC, CE, RCM, IC |
| Package Contents | |
| Standard Items | 1 × Intercom 1 × Ground Wire 1 × Quick Installation Guide 1 × Certification Regulatory Information 5 × Expansion Bolts 5 × Pan Head Tapping Screws (ST3.5 x 33 mm) 5 × Flat Head Machine Screws (M4 x 14 mm) 1 × Pan Head Machine Screw (M3 × 6 mm, for ground wire) 1 × Screwdriver 1 × Waterproof Silicone Plug 1 × Wall Mounting Position Sticker |
