Ubiquiti UISP-Cable-Carrier SFTP outdoor wire cable Cat5e, 24AWG, 305m
Κωδικός προϊόντος:
UISP-CABLE-CARRIER
230,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
185,48 €
Άμεσα διαθέσιμο
Ubiquiti UISP-Cable-Carrier SFTP outdoor wire cable Cat5e, 24AWG, 305m
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

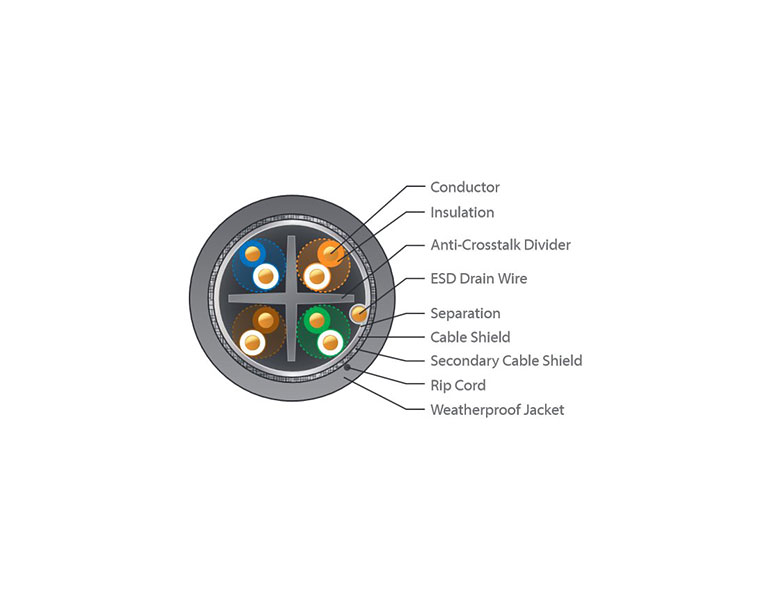

The UISP-Cable-Carrier is a Category 5e cable that delivers multilayered elemental protection with a primary braid shield and a weatherproof jacket that prevents damage from rain, snow, and other harsh climatic conditions. The cable is also equipped with a drain wire and internal foil shielding to protect it from electrostatic discharge (ESD), and its anti-crosstalk divider preserves signal integrity, allowing the cable to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.
Features:
• 1,000 ft (305 m) Category 5e cable
• 24 AWG solid copper conductor pairings
• Insulated, weatherproof cable jacket
• Internal braid and foil shielding
• Drain wire that protects against ESD damage
• Anti-crosstalk divider
Χαρακτηριστικά
| Specifications | |
| Cable | CAT5e, Shielded |
| Box Dimensions | 330 x 425 x 340 mm |
| Box Weight | 16 kg |
| Cable Length | 305 m |
| Cable Color | Black |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene |
| Insulation Thickness | AVG: 0.295 mm, MIN: 0.29 mm |
| Insulation Diameter | 1.16 ± 0.02 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | LDPE: 4.2 x 0.3 mm |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 20 mm |
| ESD Drain Wire | 0.4 TC |
| Rip Cord | Yes |
| Jacket Material | Polyethylene |
| Jacket Thickness | AVG: 0.52 mm, MIN: 0.46 mm |
| Jacket Outer Diameter | 6.8 ± 0.30 mm |
| Jacket Color | Black |
| Storage Temperature | -30 to 75° C |
| Installation Temperature | -20 to 60° C |
| Operation Temperature | -40 to 80° C |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
