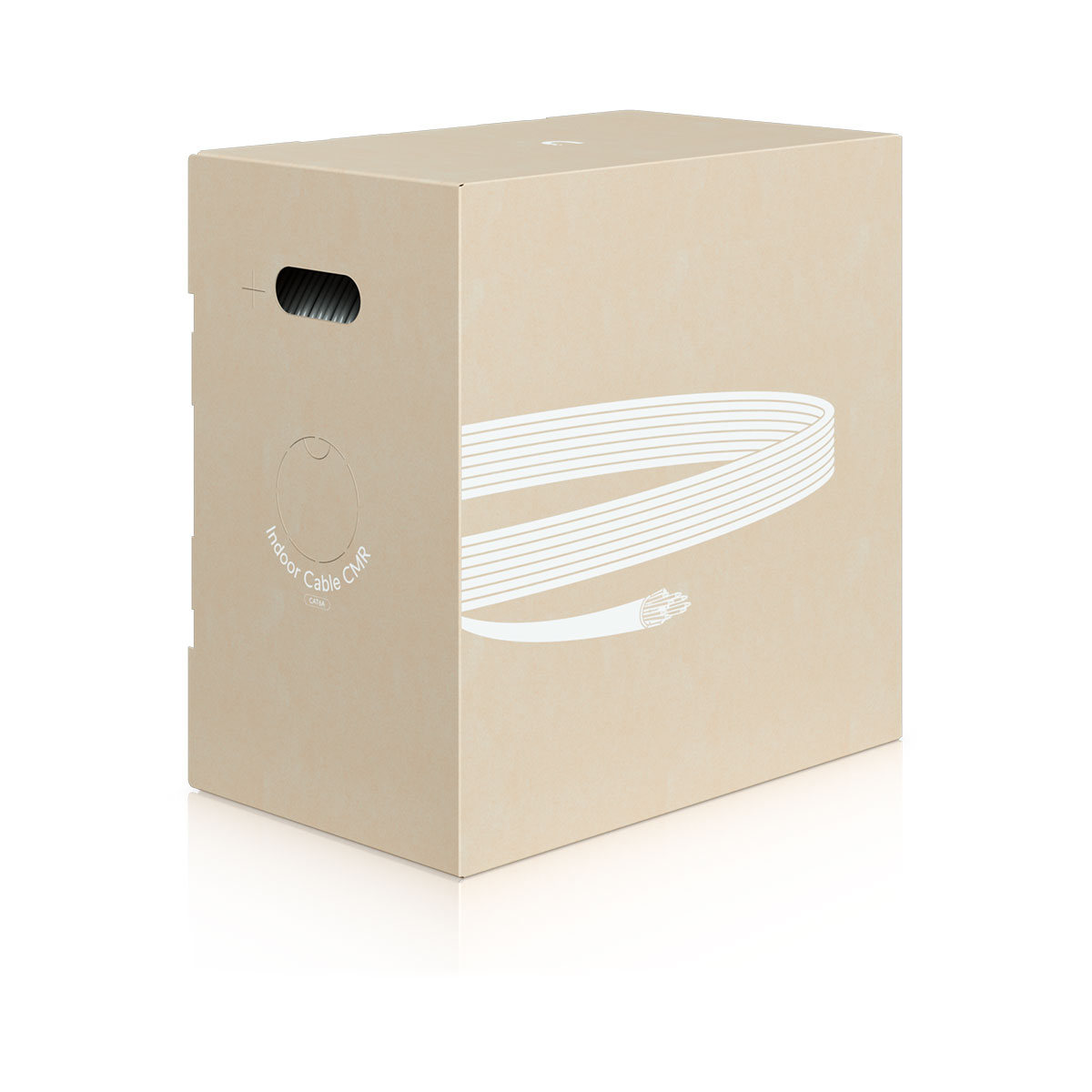

Ubiquiti UACC-CABLE-C6A-CMR, UniFi Indoor Cable, CAT6A, CMR, Unshielded, White
Κωδικός προϊόντος:
UACC-CABLE-C6A-CMR
370,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
298,39 €
Άμεσα διαθέσιμο
Ubiquiti UACC-CABLE-C6A-CMR, UniFi Indoor Cable, CAT6A, CMR, Unshielded, White
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Category 6A UTP cable designed for high-speed data transmission up to 10 Gbps in indoor installations. Featuring a riser (CMR) rated fire-resistant jacket, it ensures safe use in vertical runs and wall spaces. The 305-meter long cable includes an anti-crosstalk divider to minimize interference between pairs and has a white jacket. Conductors are 23 AWG thick, and the cable is unshielded (UTP).
- Category 6A UTP cable supporting speeds up to 10 Gbps
- Riser (CMR) rated with fire-resistant jacket
- Anti-crosstalk divider
- Length of 305 meters
- 23 AWG conductors
- White color
Χαρακτηριστικά
| Overview | |
| Length | 305 m |
| Type | Category 6A |
| Flame Rating | CMR |
| Operating Environment | Indoor |
| Box Dimensions | 494 x 302 x 481 mm |
| Box Weight | 19.3 kg |
| Cable | Jacket Color - White Jacket Diameter - 7.05 ±0.2 mm Jacket Material - Flame retardant polyvinyl chloride (FRPVC) Shielding Type - UTP Conductor Type - Solid bare copper Conductor Wire Gage - 23 AWG Bend Radius - Min. 28.2 mm Twisting - 4 Twisted pairs with color code. Pair 1: white / blue Pair 2: white-orange / orange Pair 3: white / green Pair 4: white-brown / brown |
| Anti-Crosstalk Divider | ✓ |
| Ripcord | ✓ |
| Standards | Electrical Transmission - ANSI/TIA -568.2-D ISO/IEC 11801-1 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame Test - UL 1666 (CMR) Material and Construction - UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C |
| Ambient Storage Temperature | -20 to 75°C |
| Ambient Operating Temperature | -20 to 75°C |
