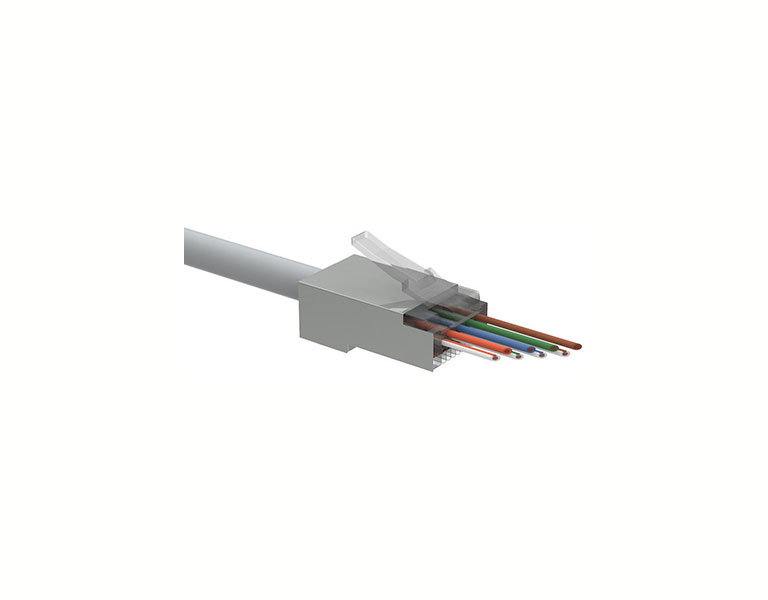

Solarix SXRJ45-5E-STP-EASY universal EASY connector RJ45 CAT5E STP 8p8c, pass-through
Solarix connectors with the designation SXRJ45-5E-STP-EASY are high-quality shielded RJ45 category 5E/Class D universal connectors, which are intended for wires of the wire and copper type. Thanks to their pass-through design, these connectors are characterized by easy and quick installation. These Solarix Category 5E connectors can be used to terminate cables with an overall conductor diameter of up to 1.1 mm (including PE insulation). To install them, we recommend using crimping pliers marked HT-EASY, which after crimping the connector will remove the remnants of the protruding wires. As with all Solarix products, the contacts of these connectors are coated with 50 µin of gold.
Key features:
• Quality shielded category 5E/Class D plug
• Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
• Very easy installation, pass-through design, using the HT-EASY tool
• 50 μin gold contact plating
• For both solid and stranded wires
• The plug meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
| Physical parameters | |
| Plug construction | STP, EASY (pass-through) |
| Plug type | RJ45 8p8c |
| Min. contacts lifetime | 1000 connections/disconnections |
| Contacts plating | 50 μin gold |
| Wire type | solid and stranded |
| Max. wire size (incl. insulation) | 1.1 mm |
| Material of non-metallic parts | FR plastic according to UL94-0 |
| Operation and storage | |
| Storage temperature |
-10 to 60 °C
|
| Operating temperature | -40 to 70 °C |
| Max. operating humidity | 93% |
