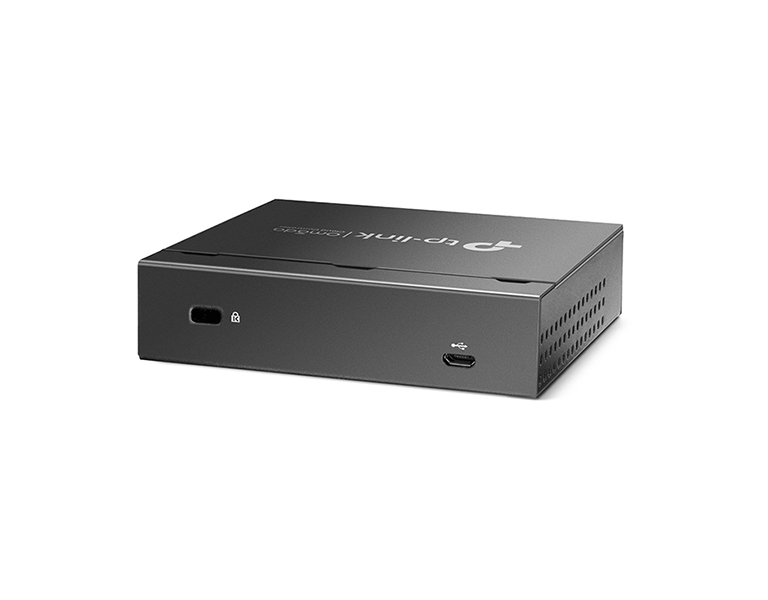

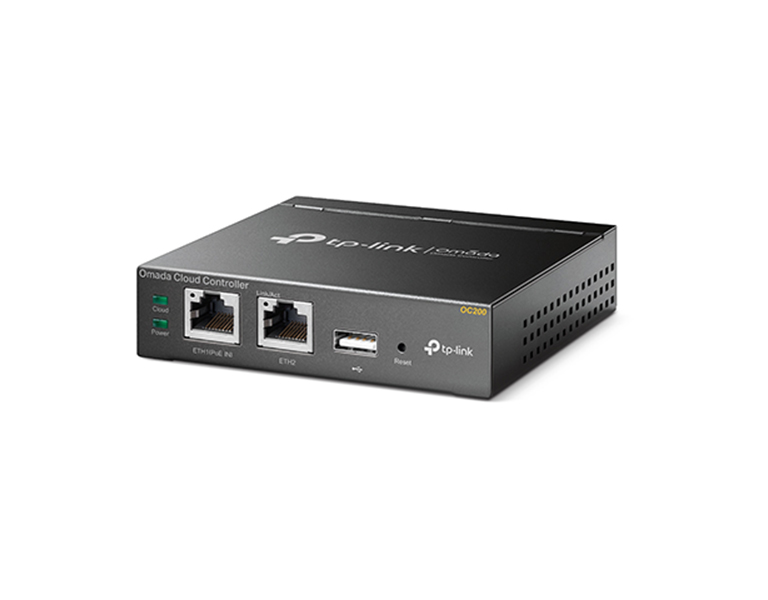

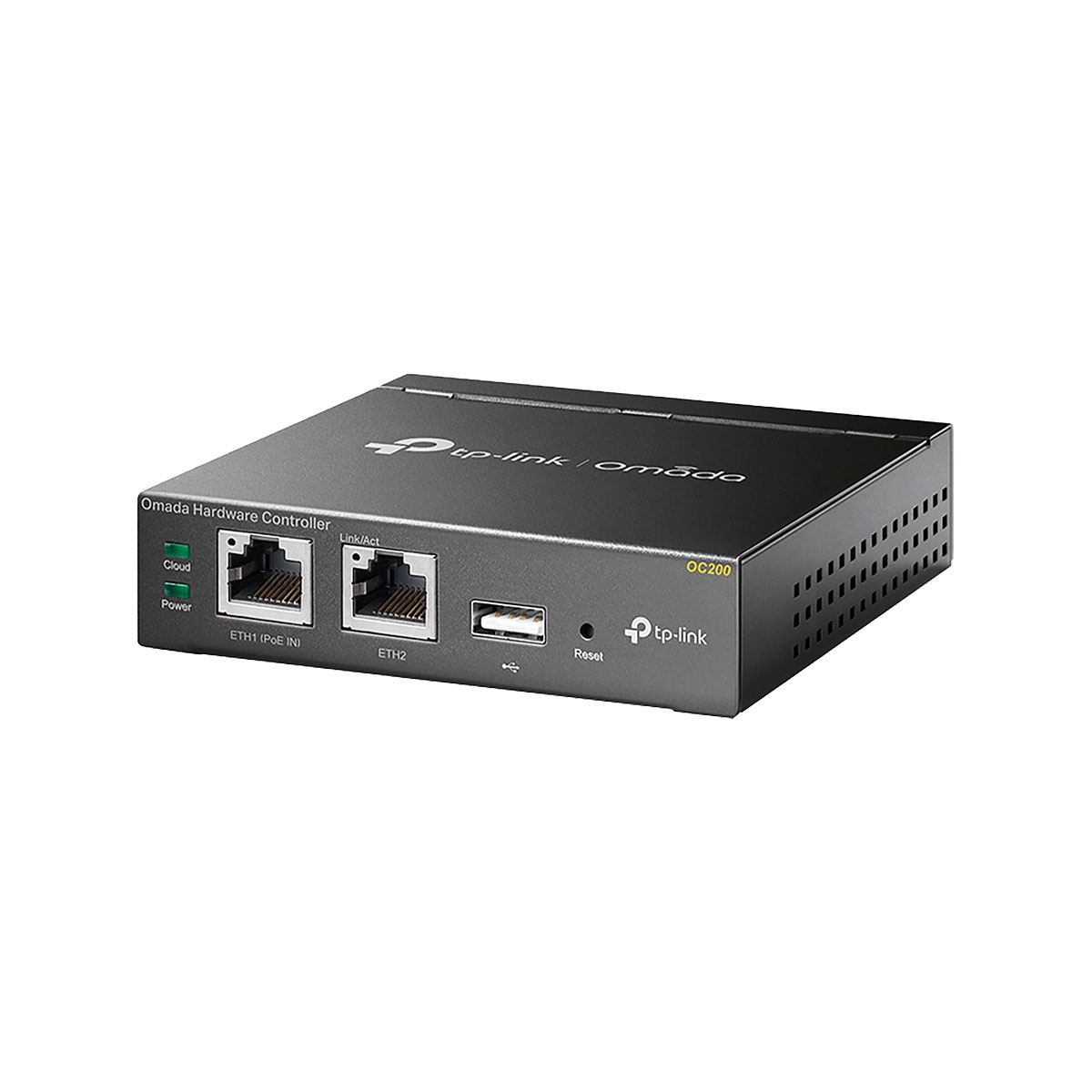

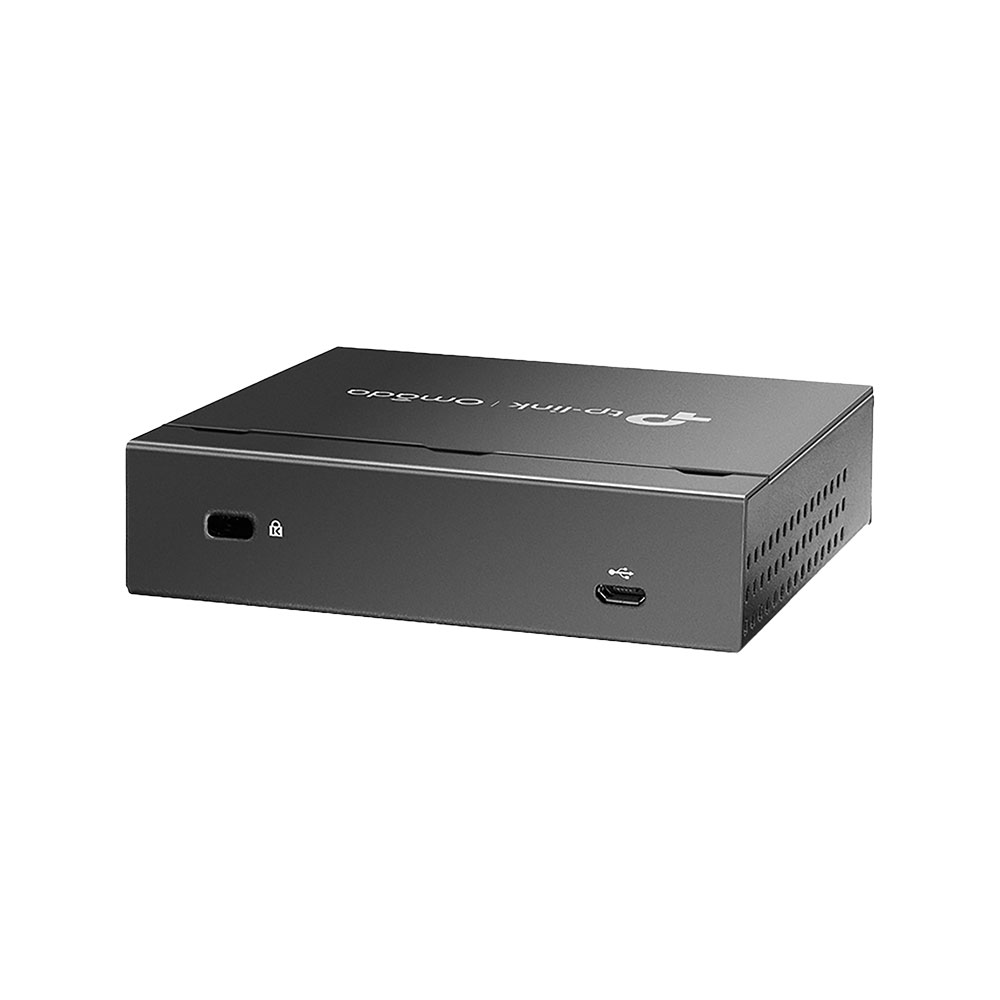

TP-LINK OC200 V1 Omada Cloud Controller
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
| • Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers. • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime. • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability. • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports. • Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation. • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution. • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance. • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance. |
Centralized Management for Access Points, Switches, and Routers
OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface.
Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.
Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
| HARDWARE FEATURES | |

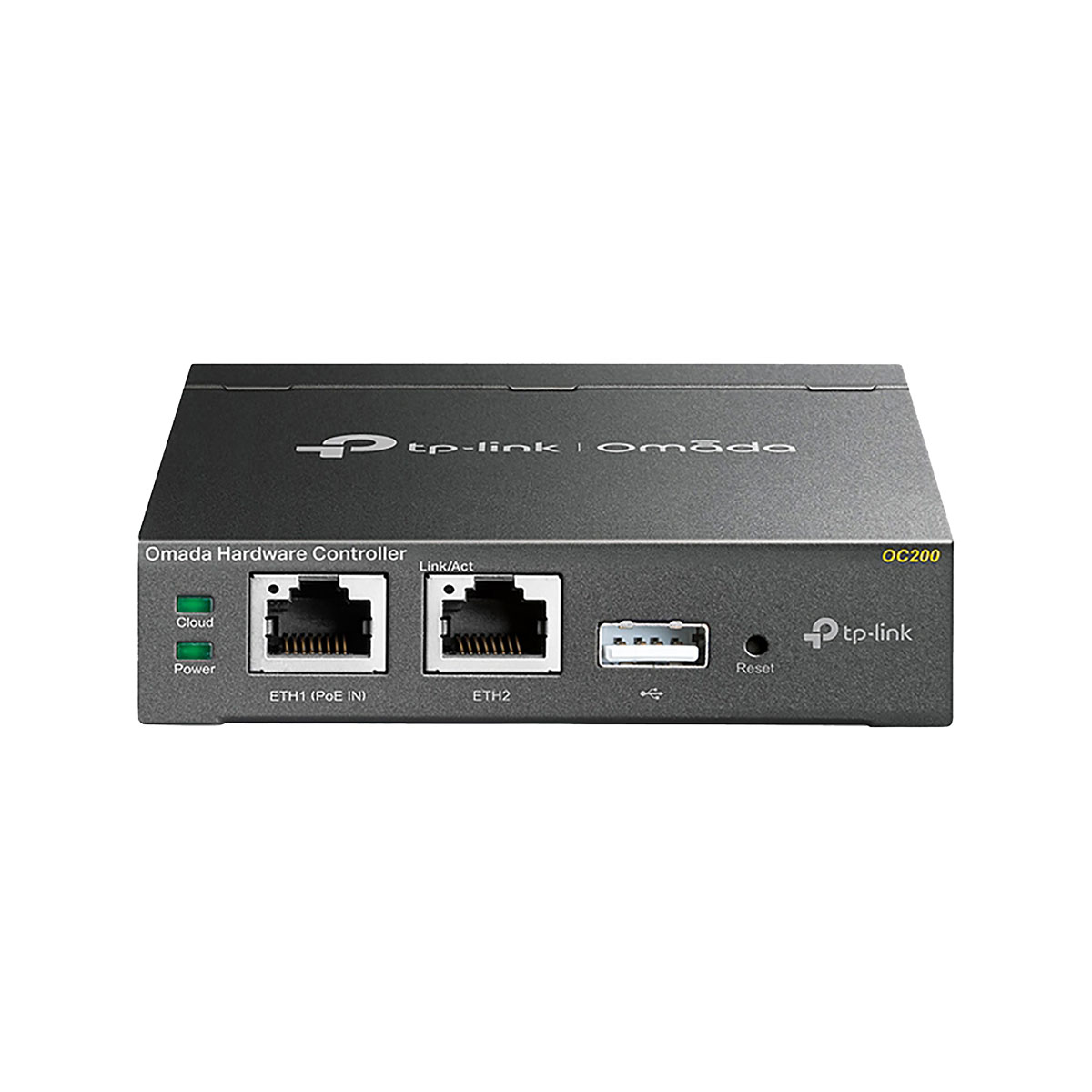

| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/1A） |
| Dimensions | 100 × 98 × 25mm |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Up to 100 Omada access points, switches, and routers |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | Automatic device discovery Batch configuration Batch firmware upgrading Intelligent network monitoring Event logs and notifications Unified configuration Reboot schedule Captive portal authentication |
| OTHERS | |
| Certification | FCC, RoHS |

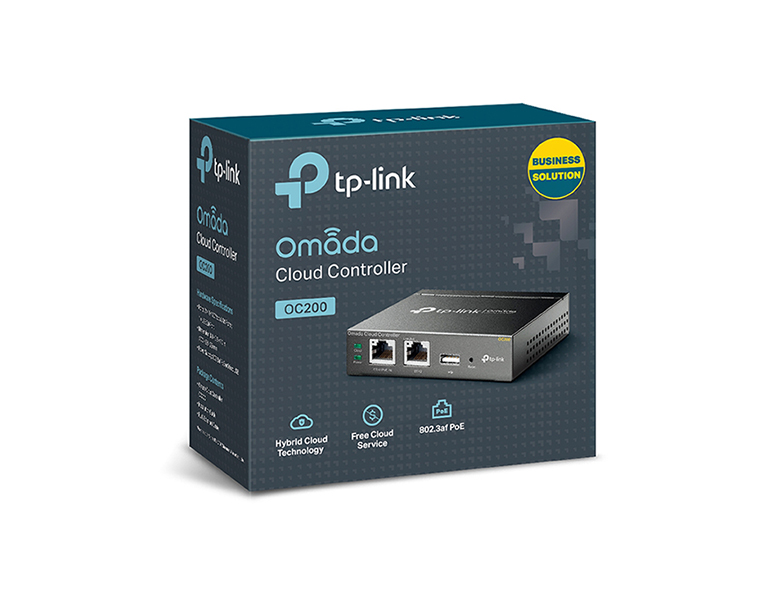

| Package Contents | Omada Hardware Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Internet |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
**Actual management scale of the Omada Software Controller depends on the PC/server’s hardware specifications.
