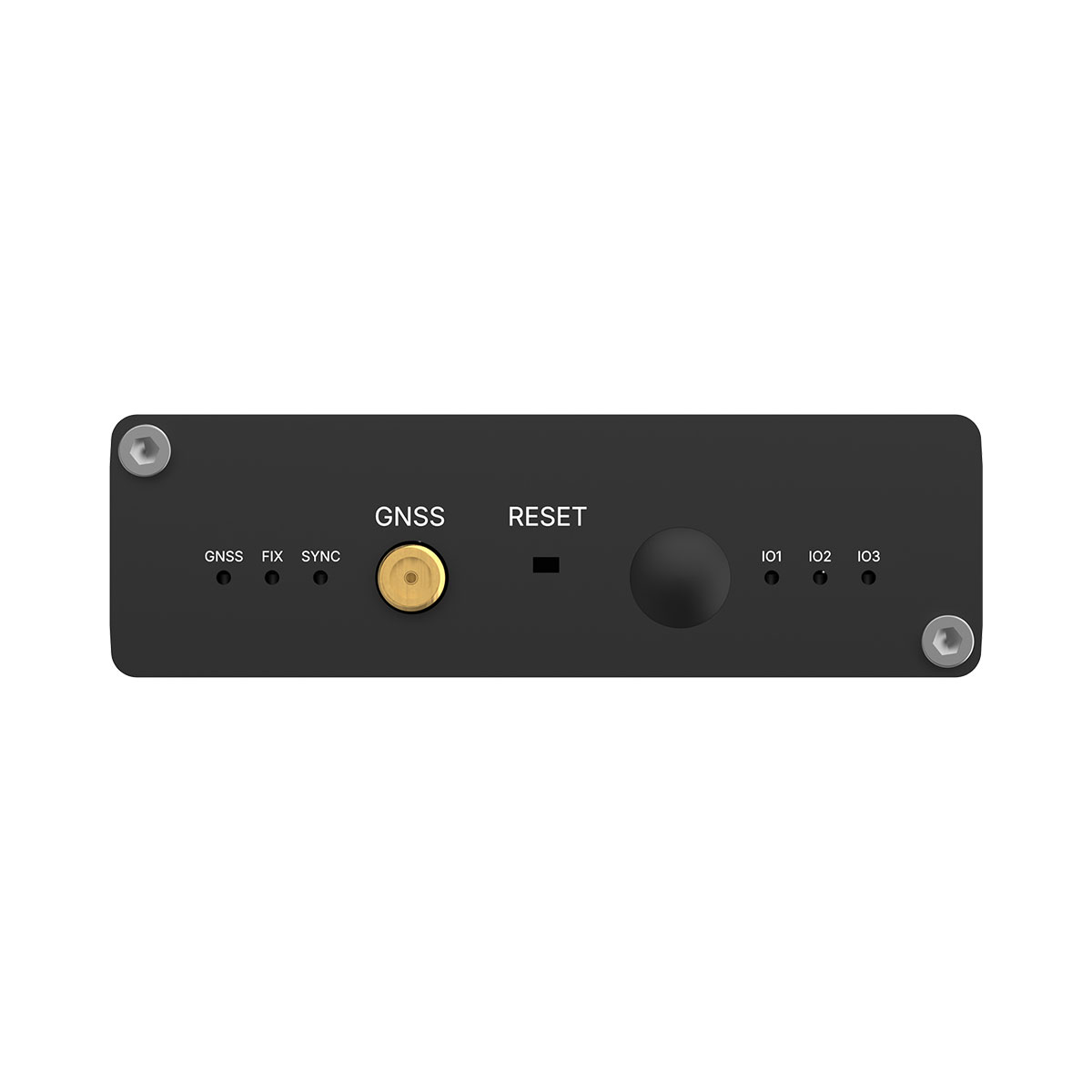

Teltonika NTP001 NTP Server
Κωδικός προϊόντος:
NTP001
Άμεσα διαθέσιμο
Teltonika NTP001 NTP Server
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
ΠΡΟΣΟΧΗ!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!
The NTP001 is a stratum-1 Teltonika NTP server designed for synchronizing accurate, UTC-traceable time in both public and private networks, without the need of Internet access. Utilizing its GNSS capabilities, this low-cost NTP server maintains precise time. Plug-and-play setup, a wide variety of interfaces including RS232 and RS485, and a robust security profile all make the NTP001 the perfect NTP server for your network.
Χαρακτηριστικά
| HARDWARE |
|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 16 MB, NOR Flash |
| Powering options | 16-pin terminal, 9-30 VD |
| Antenna connectors | 1 x SMA for GNSS |
| Ethernet | 1 x RJ45 ports, 10/100 Mbps |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 3 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Serial | RS232, RS485 |
| Status LEDs | 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 82.6 x 25 x 83 mm |
| Weight | 180 g |
| SOFTWARE | |
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Network features |
Network protocols, Connection monitoring, Network topology, DDNS |
| Security |
Authentication, WEB filter, Access control, 802.1x |
| Monitoring and Management |
WEB UI, SSH, SNMP, JSON-RPC, MODBUS |
| NTP |
Supported modes, Daytime Protocol, Date over Serial, NTP, Protocol, NTP Accuracy, NTP Performance, Synchronization Accuracy |
| Services |
Modbus, Modbus MQTT Gateway |
| Time Synchronization | Acquisition Sensitivity, Time Source, Startup |
