MikroTik RB1100AHx4 4x1.4GHz CPU, 1GB RAM, 13x Gigabit Ethernet, RouterOS L6
Κωδικός προϊόντος:
RB1100x4
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

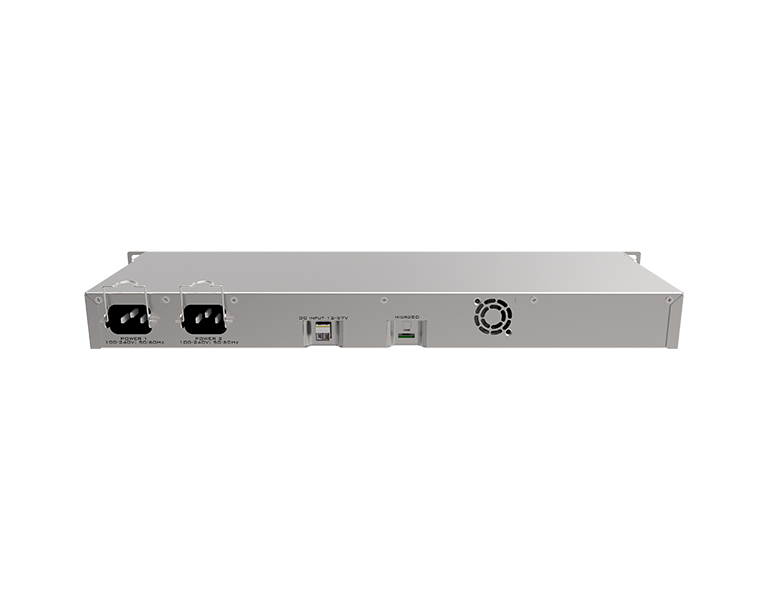

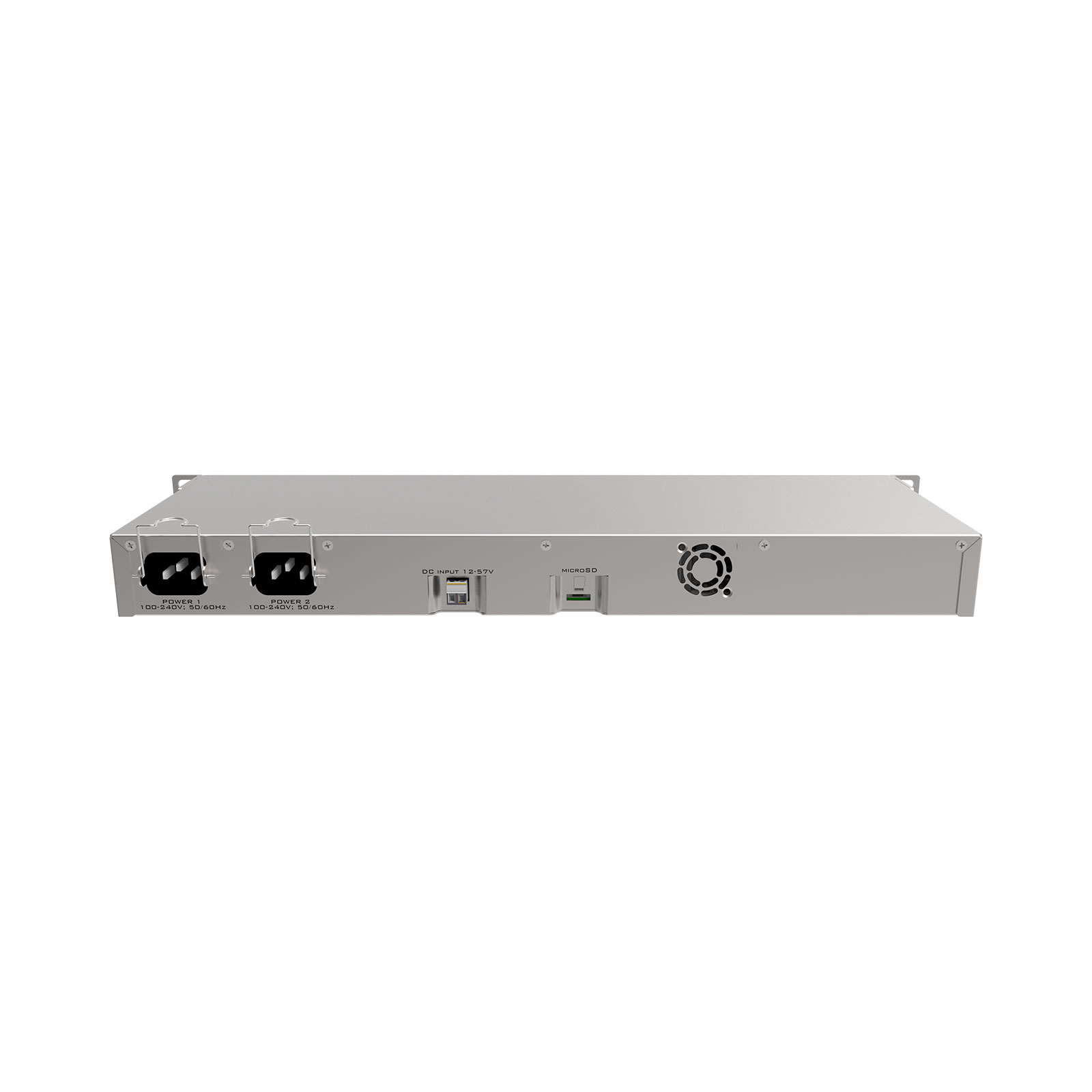

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Χαρακτηριστικά
| Specifications | |
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 444 x 148 x 47 mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 13 |
| Peripherals | |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RS232 |
| Other | |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| Package Contains | |

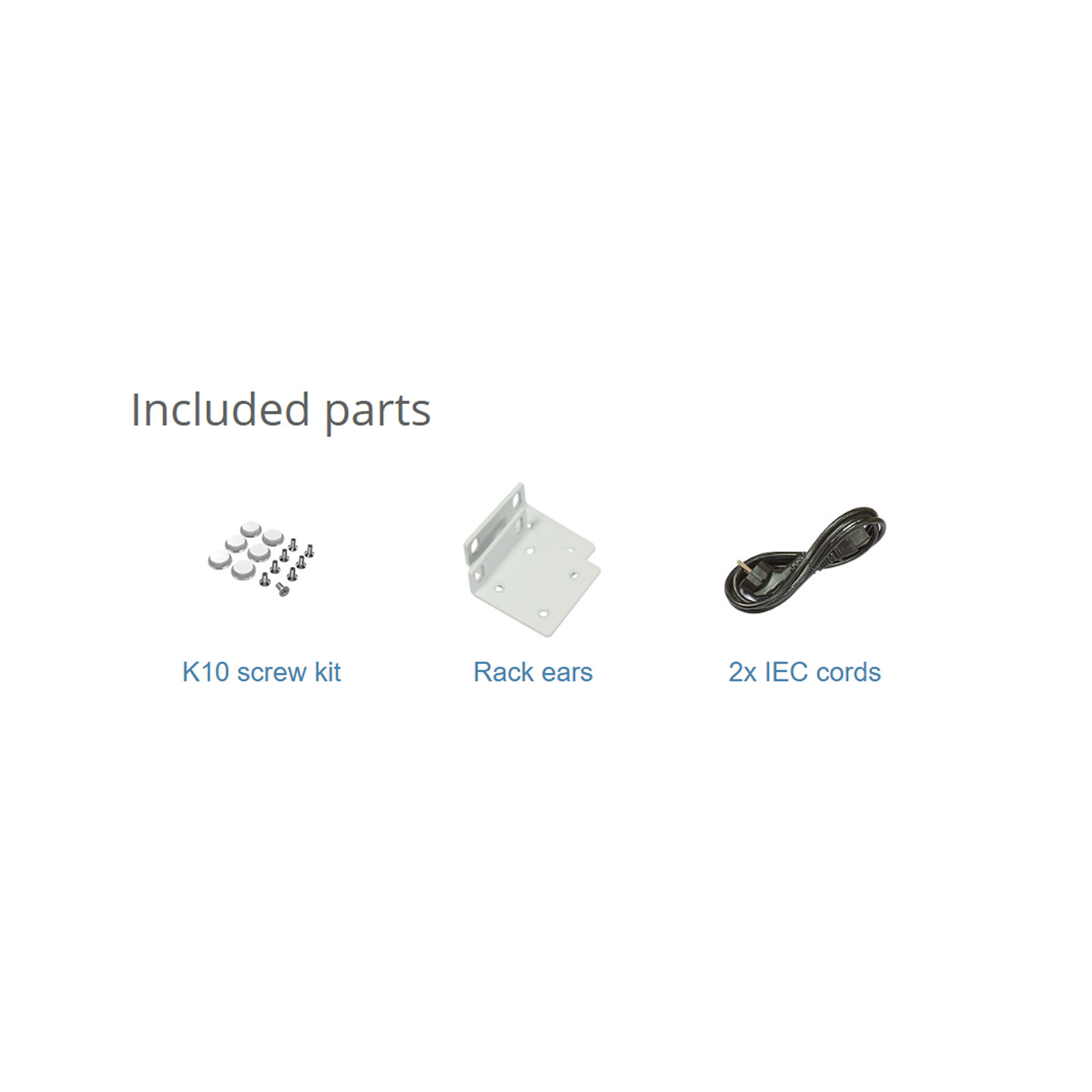

| Included parts | • K10 screw kit • Rack ears • 2x IEC cords |
