MikroTik RB960PGS-PB PowerBox Pro 800MHz CPU, 5xGLAN, RouterOS L4
Κωδικός προϊόντος:
RB960PGS-PB
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

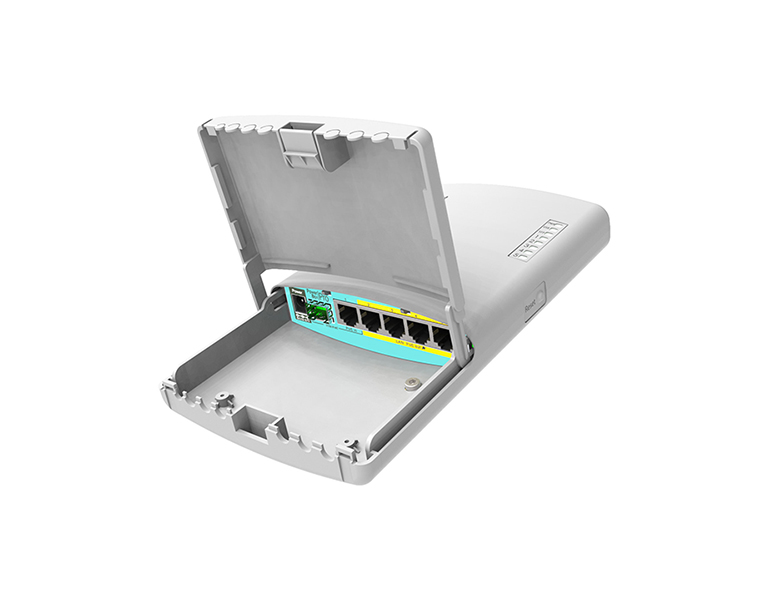

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Χαρακτηριστικά
| Specifications | |
| Product code | RB960PGS-PB |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 125 x 52 x 225 mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
| PoE out | 802.3af/at |
| PoE-out ports | Ether2-Ether5 |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 450 mA |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| Package Contains | |
| Included parts | • 24V 2.5A power adapter • DIN mount(K-27) • IEC cord • Gigabit PoE injector • Metal ring(one) |
