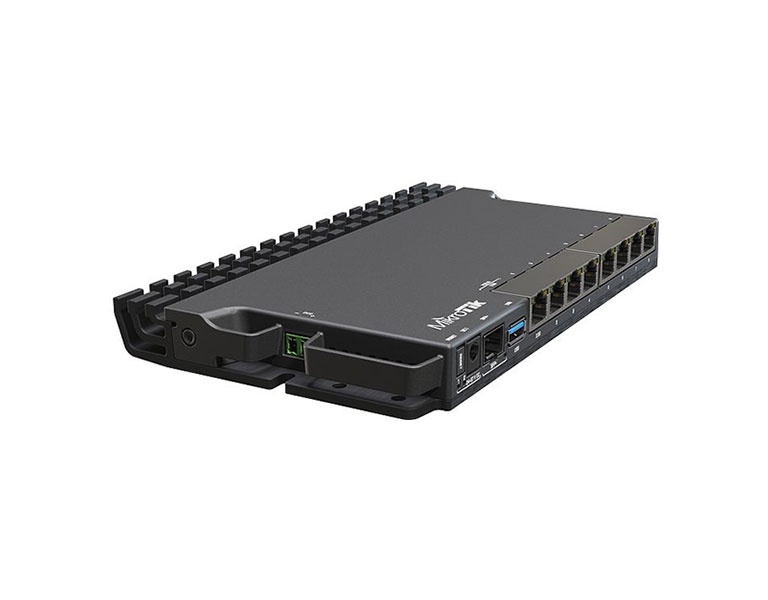

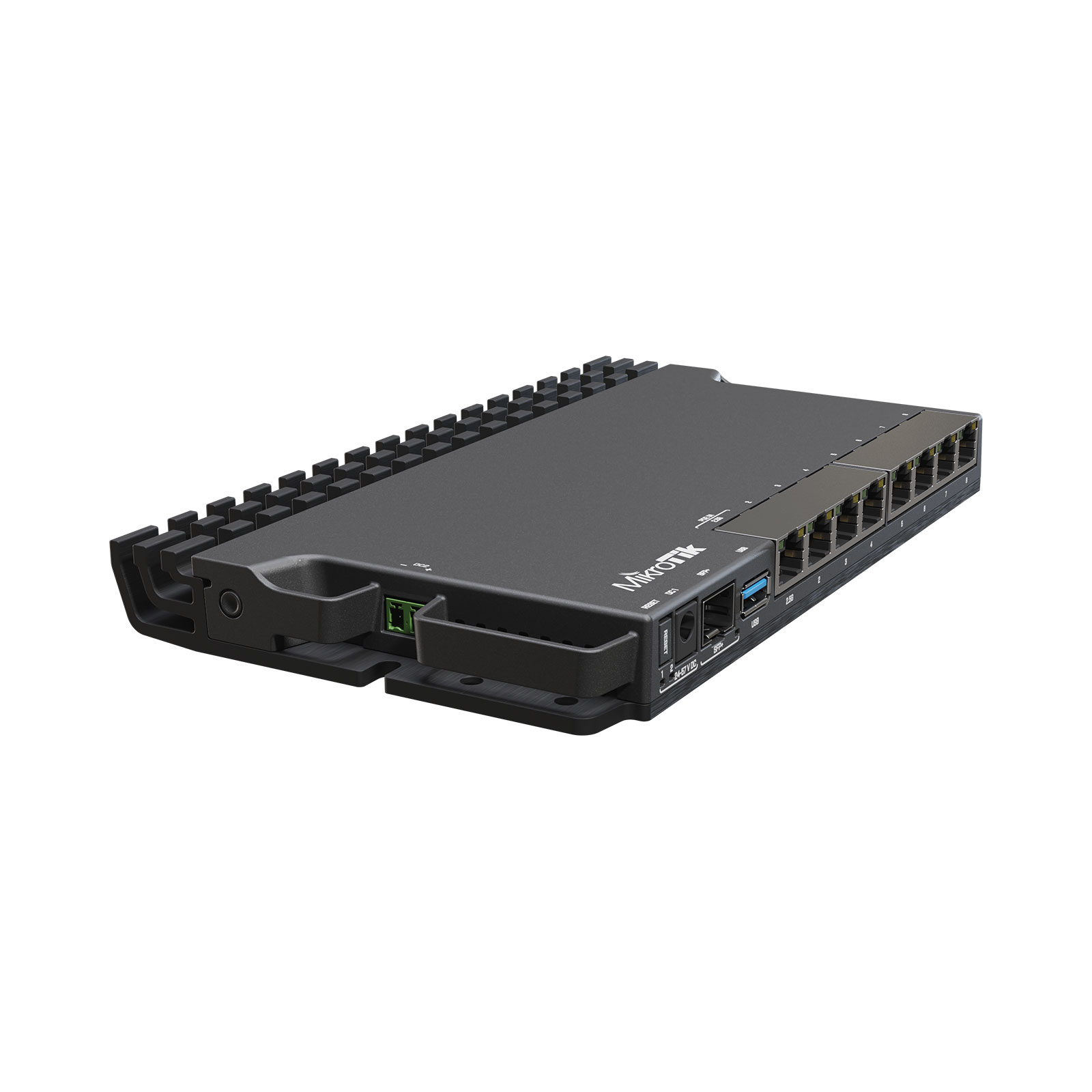

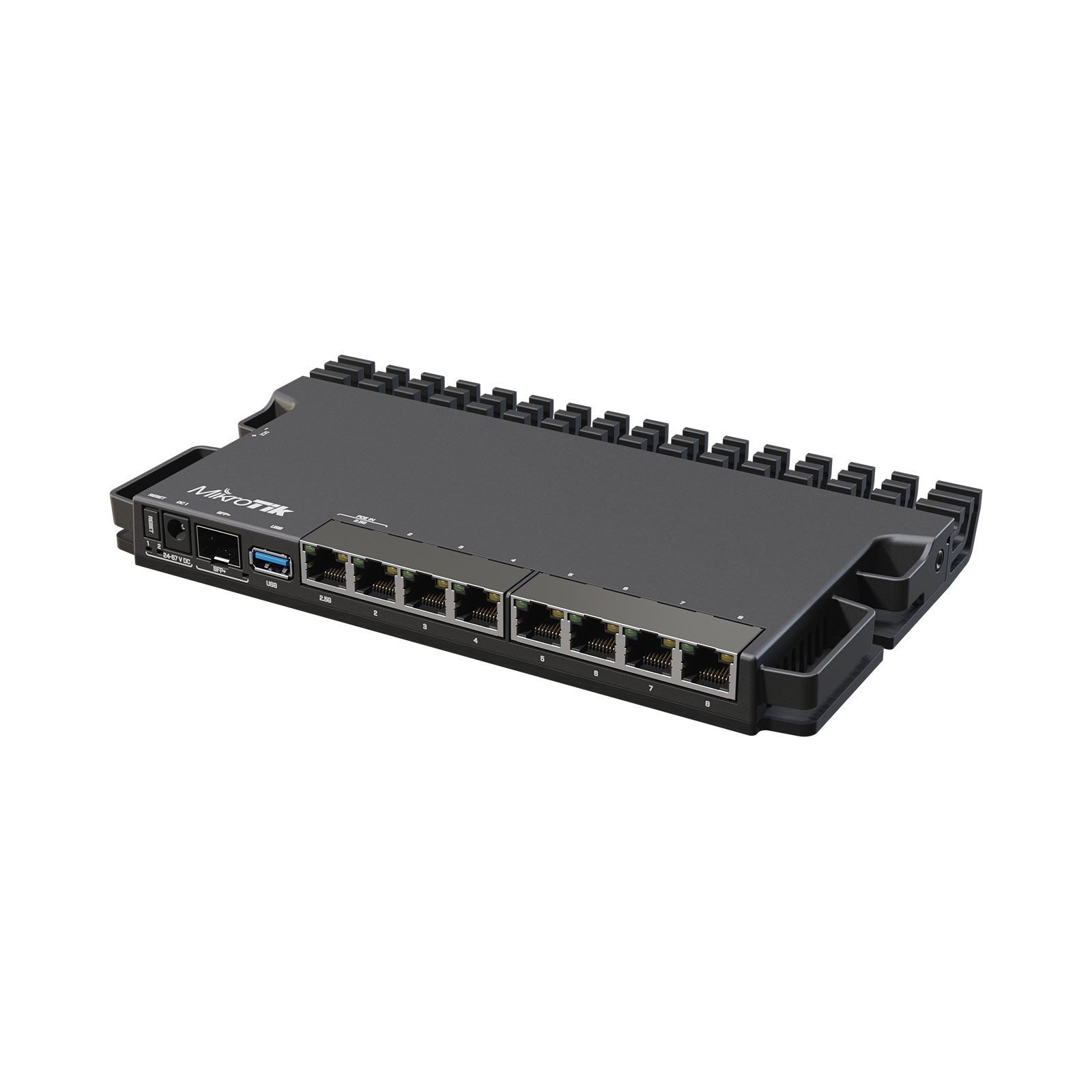

MikroTik RB5009UG+S+IN 7xGig, 1x2.5Gig, 1xSFP+, RouterOS L5
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to MikroTik's other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

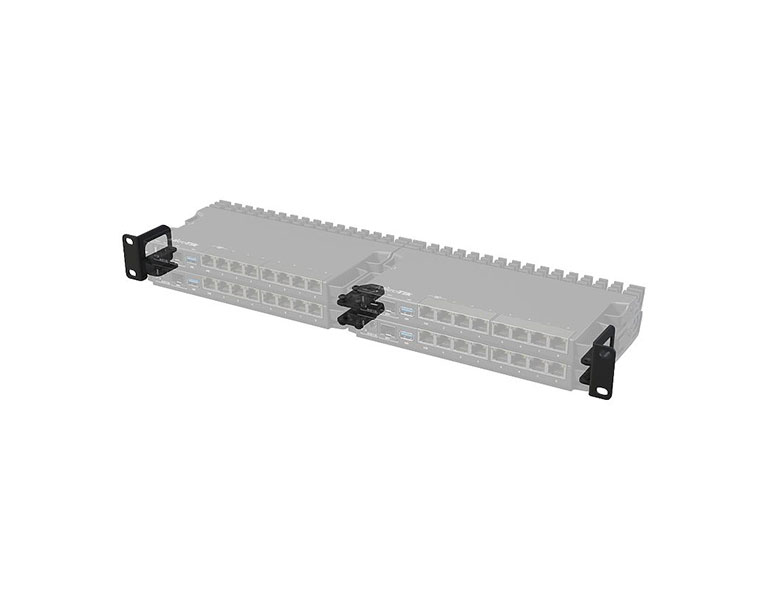

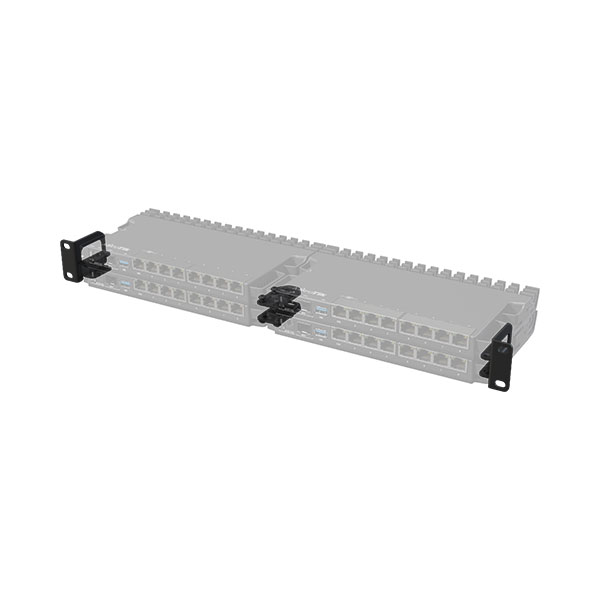

With a simple set of mounting accessories, you can mount four of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
| Specifications | |
| Product code | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| CPU | 88F7040 |
| CPU core count | 4 |
| CPU nominal frequency | 350-1400 (auto) MHz |

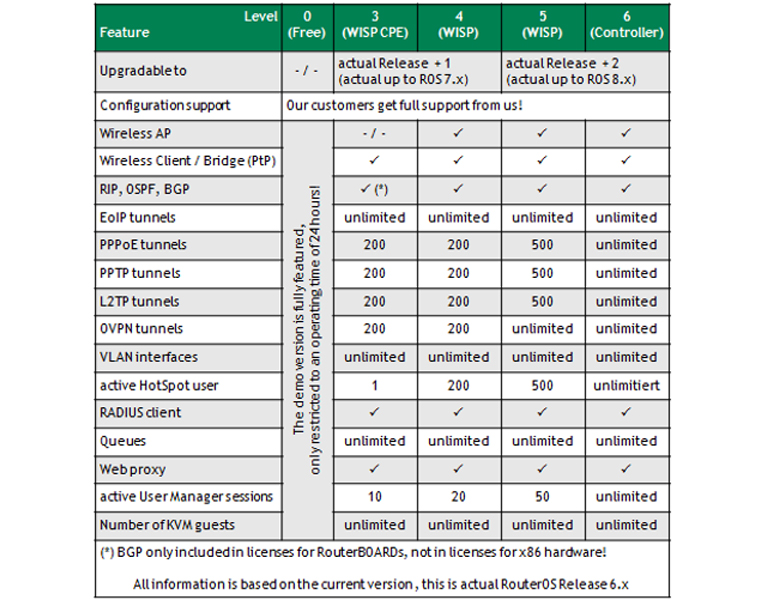

| RouterOS license | 5 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 1 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Powering | |
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage | 24-57 V |
| 2-pin terminal input Voltage | 24-57 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 14 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 24-57 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Fiber | |
| SFP+ ports | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| Other | |
| CPU temperature monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| Package Contains | |

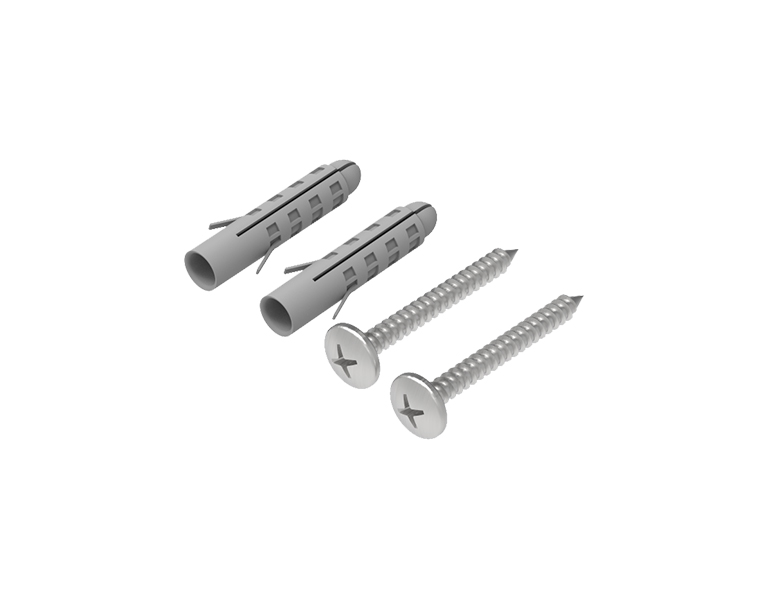

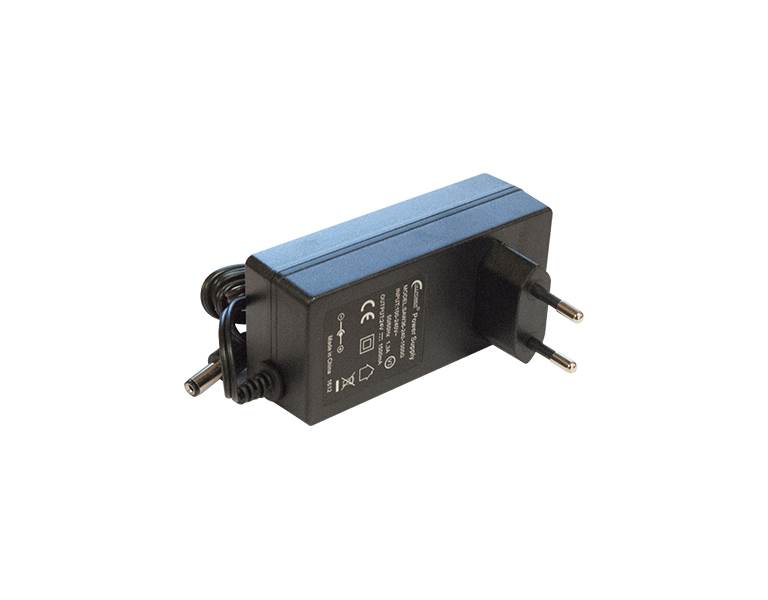

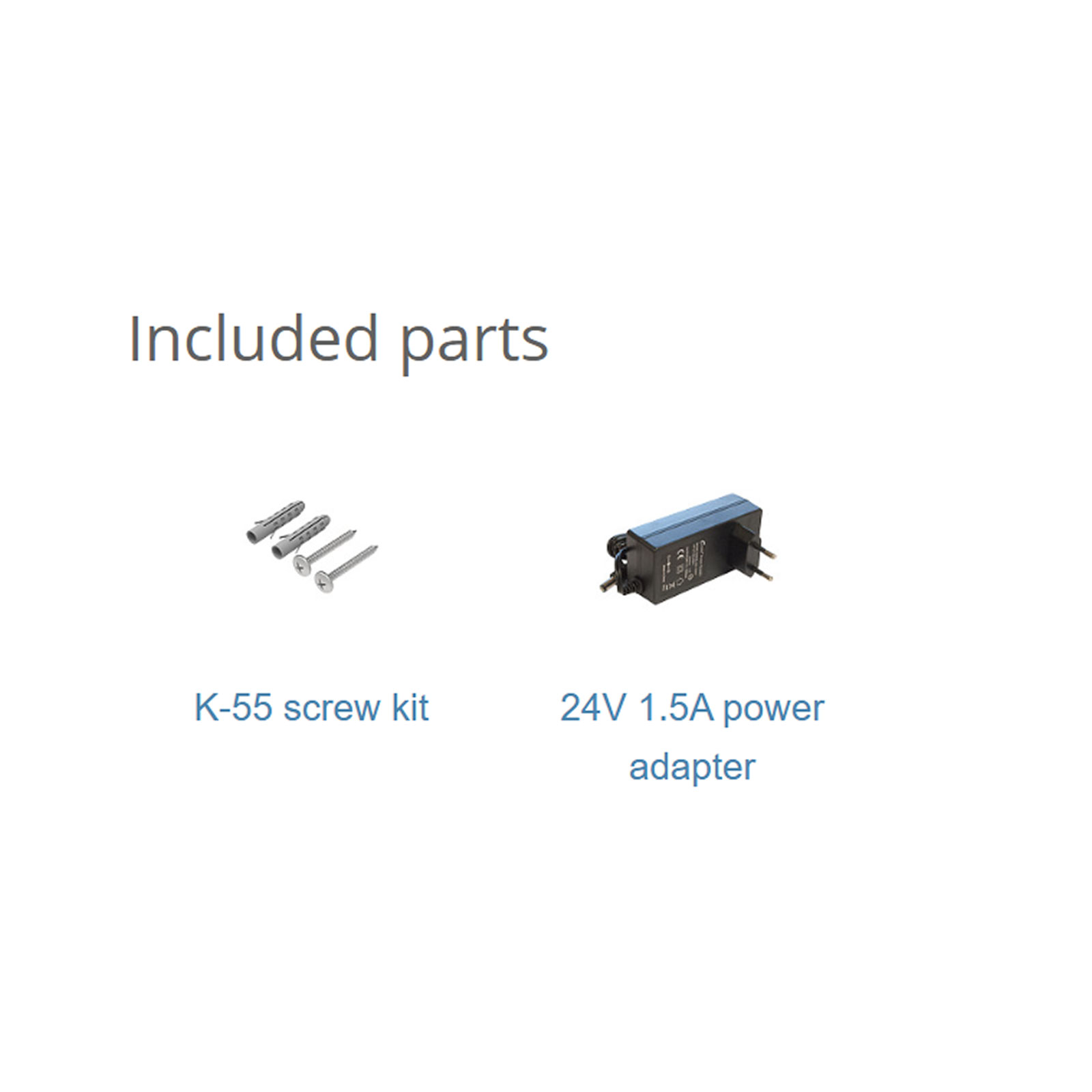

| Included parts | • 24V 1.5A power adapter • K-55 screw kit |
