Περιγραφή

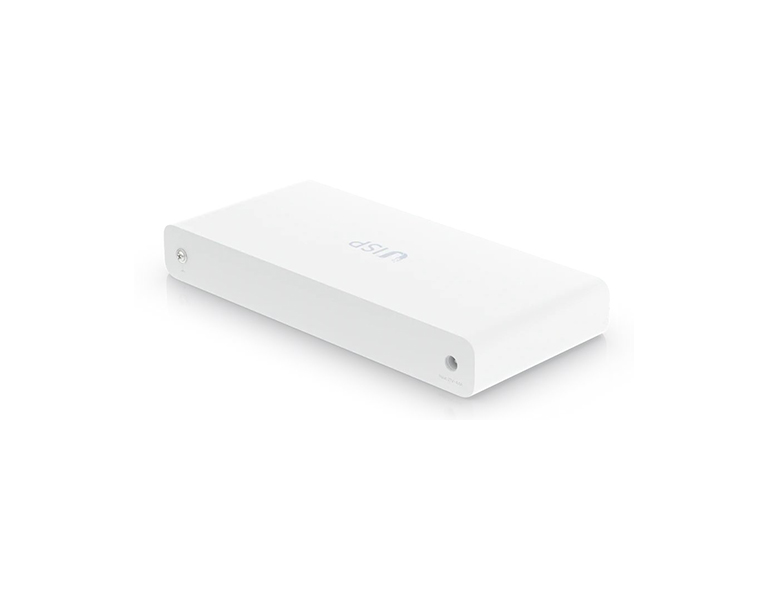

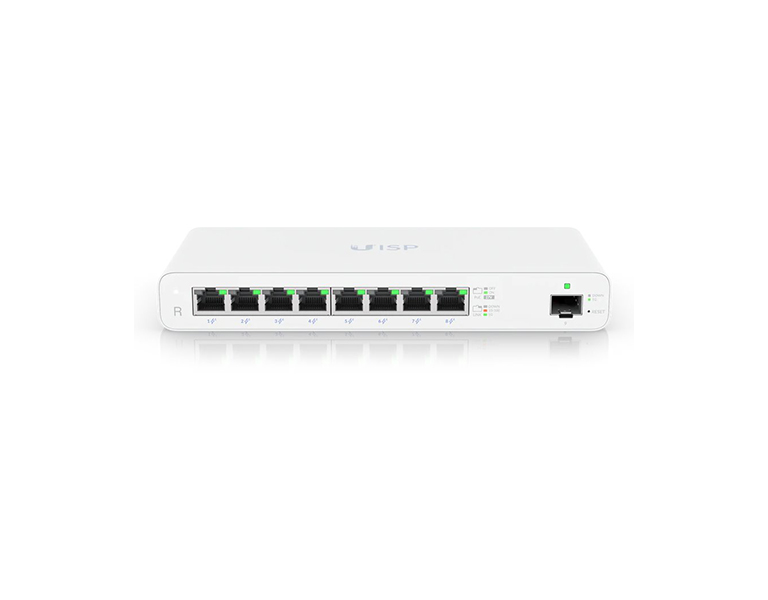

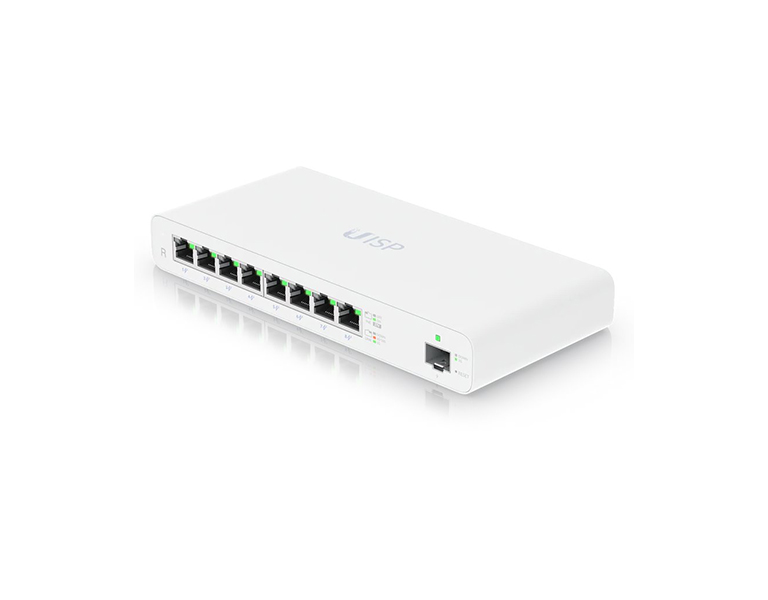

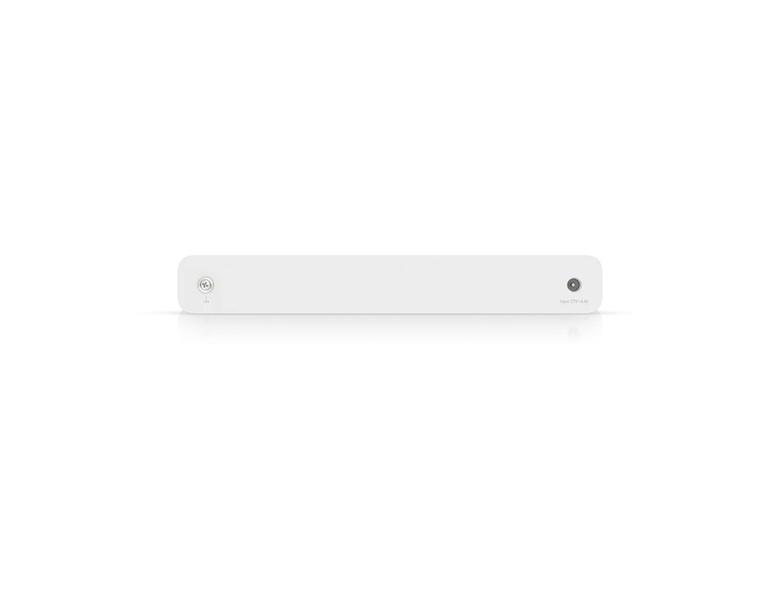

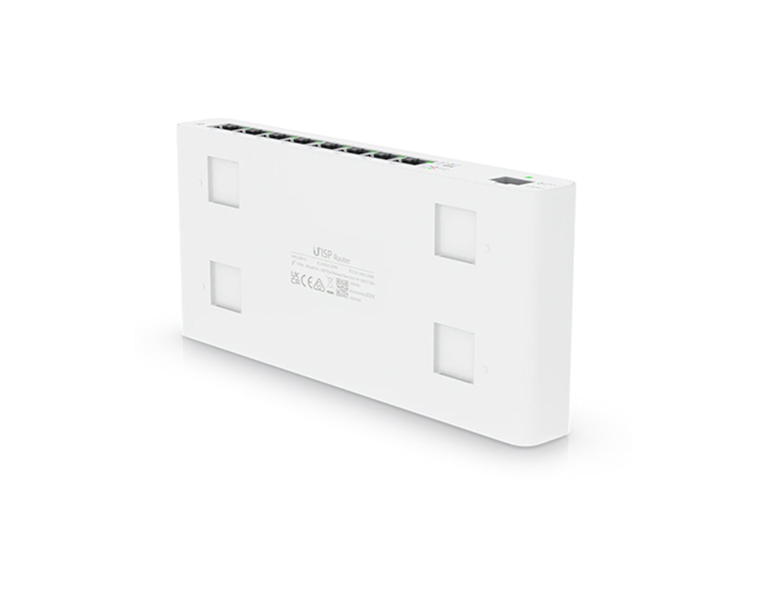

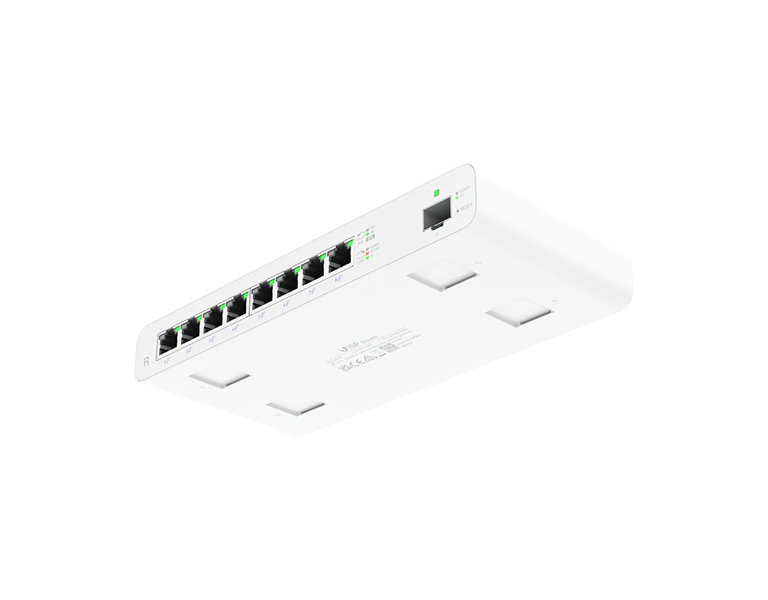

Ideal for wireless ISP (WISP) deployments, the UISP Router is a fanless PoE router featuring (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Router provides a cost-effective routing solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Router delivers substantial power to every radio in your service network. The UISP Router is managed ONLY with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.
Key features
- (8) Gigabit LAN with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1Gb SFP port
- 110W PoE budget, max. 30W/port
- Fanless, thermal cooling for silent operation
- Wall-mountable (kit included)
- Easy, Bluetooth-powered setup via the UISP 1.4.0-beta.11 and higher
Package contains
- Device
- Power cable
- Power adapter 27V / 4,4A
- Wallmount kit
Χαρακτηριστικά
| Specifications | |
| Dimensions | 210.4 x 95 x 29 mm |
| Weight | 600 g |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core 880 MHz, MIPS1004Kc |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 512 MB NAND |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-Band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power Supply | 27VDC, 4.4A power adapter (included) |
| Supported voltage range | 24 - 28VDC |
| Max. power consumption | 10W (excludes PoE output) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -10 to 50° C |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE,FCC,IC |
| NDAA Compliant | Yes |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. Passive PoE wattage per port | 30W/27VDC |
| Passive PoE voltage range | 27VDC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE, Speed/Link/Activity |
| SFP data ports | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
