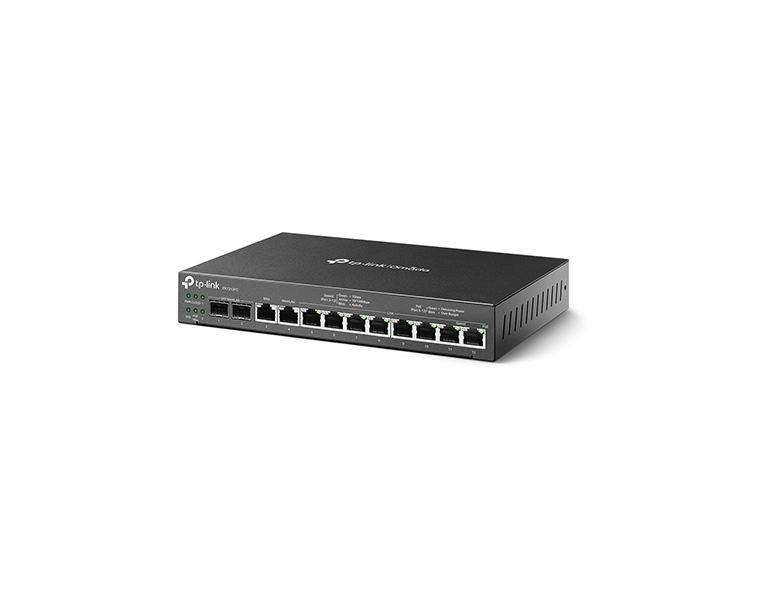

TP-LINK ER7212PC V1 Omada 3-in-1 Gigabit VPN Router
Κωδικός προϊόντος:
ER7212PC
200,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
161,29 €
Άμεσα διαθέσιμο
TP-LINK ER7212PC V1 Omada 3-in-1 Gigabit VPN Router
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
|
• 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether. |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
| Interface | 2 Gigabit SFP WAN/LAN ports 1 Gigabit WAN port 1 Gigabit LAN/WAN port 8 Gigabit LAN ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset button |
| Power Supply | 53.5VDC/2.43A Adapter |
| Flash | 8Mb Nor + 4 GB EMMC |
| DRAM | 1 GB DDR3 |
| PoE | 8 ports PoE+ output, 110 W PoE Budget |
| Surge Protection | 4 kV surge protection |
| Dimensions ( W x D x H ) | 226 × 131 × 35 mm |
| Fan | Fanless |
| Enclosure Materials | Steel |
| Installation | Desktop/Wall-mount |
| SDN Support | |
| Integrated Controller Software | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration Management up to 1 Router, 2 Switches and 10 EAPs |
| Performance | |
| Concurrent Session | 24,98 |
| New Sessions /Second | 1,9 |
| Static IP NAT Throughput (Upload /Download) | 935.5 Mbps / 942.1 Mbps |
| DHCP NAT Throughput (Upload /Download) | 940.2 Mbps / 941.7 Mbps |
| PPPoE NAT Throughput (Upload /Download) | 913.1 Mbps / 935.2 Mbps |
| L2TP NAT Throughput (Upload /Download) | 545.0 Mbps / 912.7 Mbps |
| PPTP NAT Throughput (Upload /Download) | 523.0 Mbps / 912.8 Mbps |
| 66 Byte Packet forwarding rate | (Upload / Download) |
| 154,069 pps / 156,977 pps | 1,518 Byte Packet forwarding rate |
| (Upload / Download) | 81,193 pps / 81,193 pps |
| IPSec VPN Throughput (AES256) | 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | Unencrypted: 845.3 Mbps Encrypted: 333.2 Mbps |
| PPTP VPN Throughput | Unencrypted: 1012.6 Mbps Encrypted: 401.4 Mbps |
| Basic Functions | |
| WAN Connection Type | Static IP Dynamic IP PPPoE PPTP L2TP |
| DHCP | DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| IPTV | IGMP v2/v3 Proxy |
| IPv6 | √ |
| VLAN | 802.1Q VLAN |
| Transmission | |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup Online Detection |
| NAT | Multi-Net NAT Virtual Server NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| VPN | |
| IPSec VPN | 20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 SHA1, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10)1 16 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10)1 16 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (10)1 16 OpenVPN Tunnels |
| Security | |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | URL Filtering |
| Access Control | Source/Destination IP Based Access Control |
| Authentication | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher/ SMS / Radius) External Radius Sever External Portal Sever Facebook |
| Management | |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Syslog Support |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | ER7212PC, Power Adapter, Power Cord, Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 45 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
