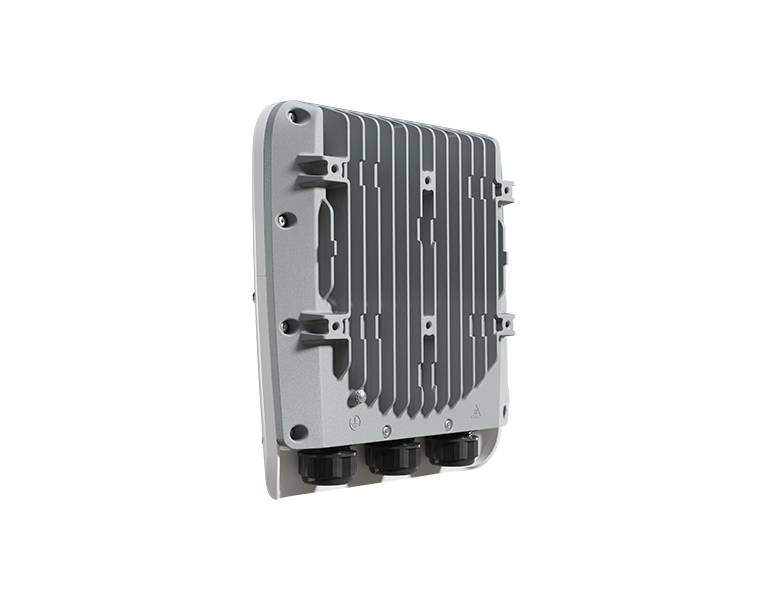

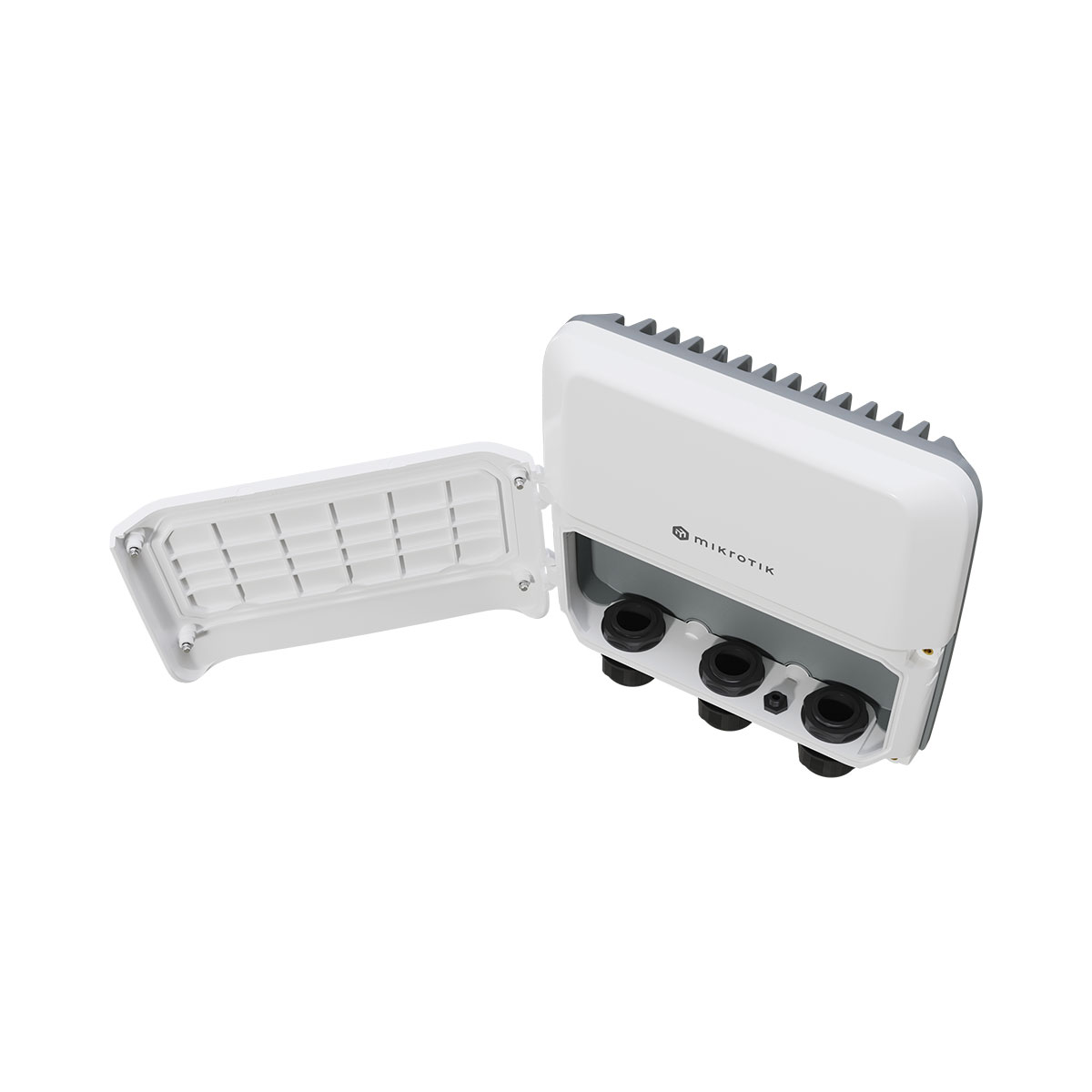

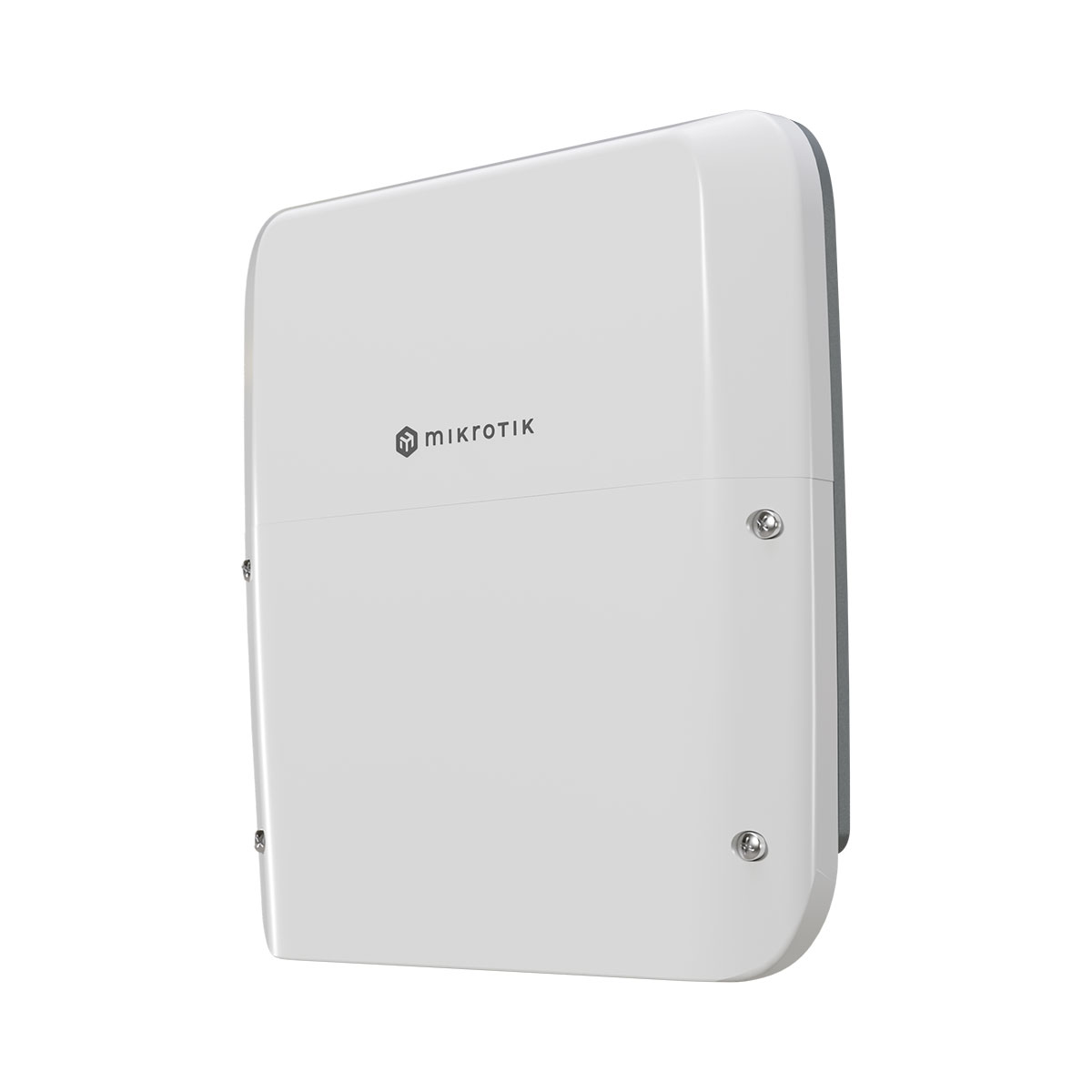

MikroTik RB5009UPr+S+OUT RouterBOARD RouterOS - L5
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ

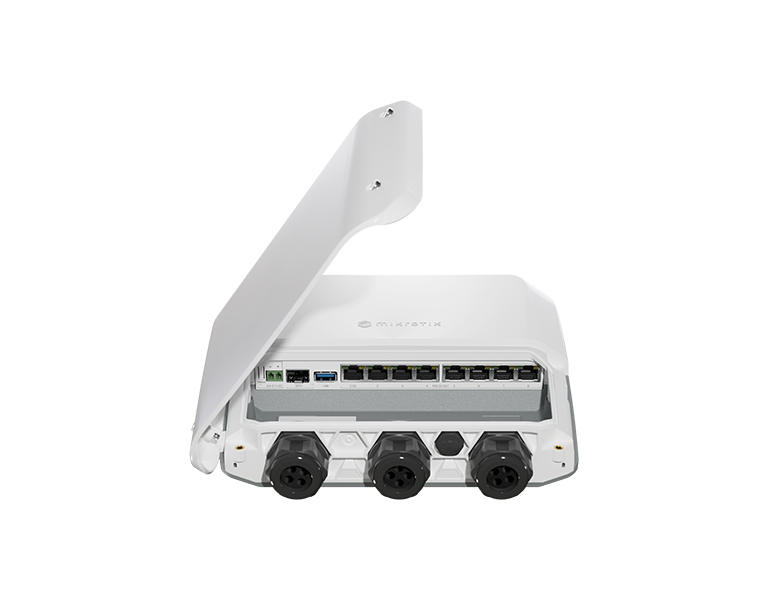

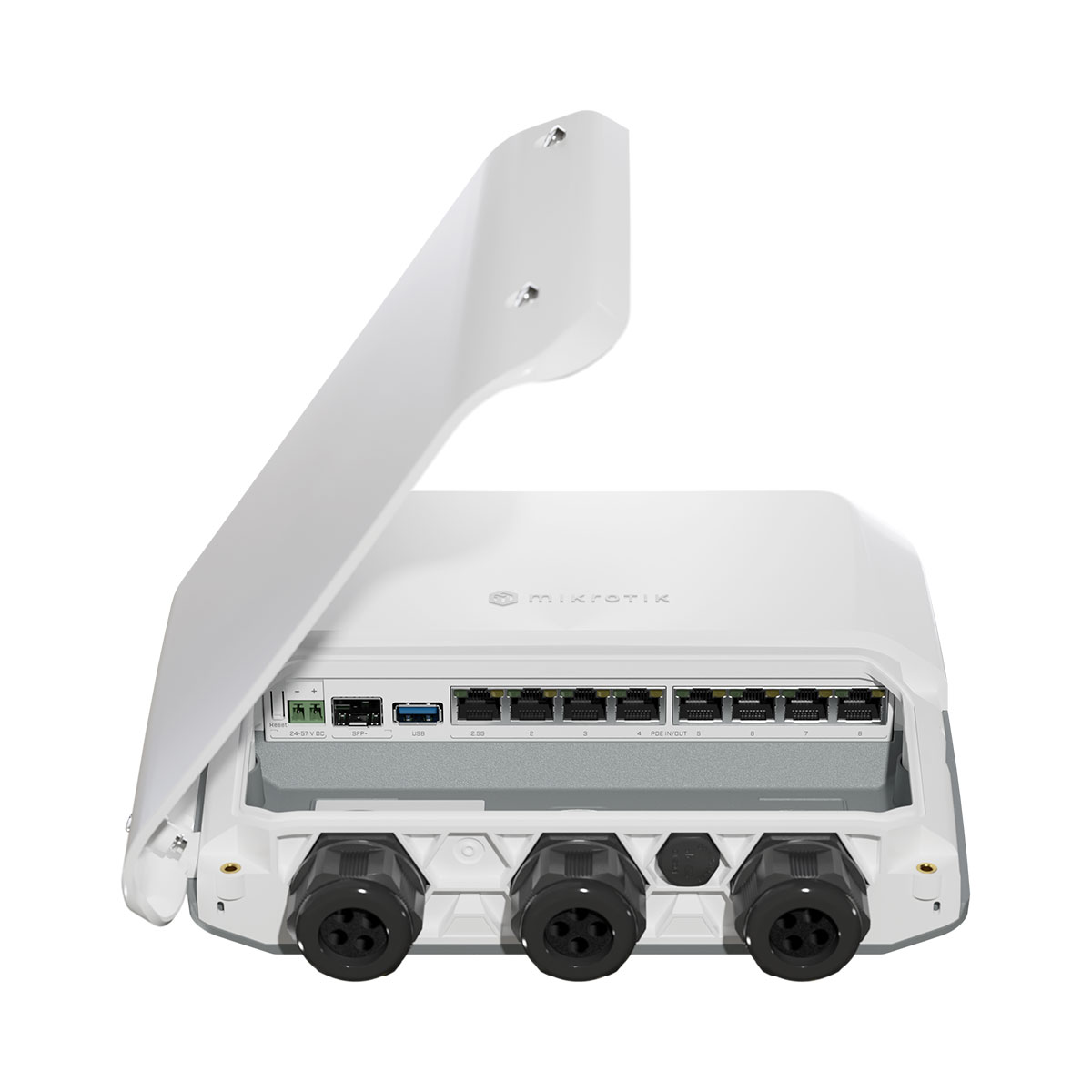

Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
This product also features single voltage PoE-out – it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!
| Specifications | |
| Product code | RB5009UPr+S+OUT |
| CPU | Quad-Core 88F7040 1.4 GHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| RAM type | DDR4 |
| Storage | 1 GB, NAND |
| Number of 1G Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 10G SFP+ ports | 1 |
| USB port | 1 (3.0 type A) |
| Operating system | RouterOS v7, License level 5 |
| Switch chip model | 88E6393 |
| Dimensions | 222 x 239 x 57 mm |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE-in | 802.3af/at |
| PoE-Out | 802.3af/at Same voltage as supplied via 2-pin terminal - Passive PoE or 802.3af/at Compatible (if 44–57V PSU used) |
| PoE-Out ports | Ether1 - Ether8, max out per port output (input < 30 V): 620 mA, max out per port output (input > 30 V): 420 mA |
| Smart PoE | Controller |
| Max total out | 2.59 A |
| Total output power | 130 W |
| Total output current | 2.28 A |
| Number of DC inputs | 2 |
| Supported input voltage | 24-57 V (PoE in) 24-57 (2-pin terminal) |
| Max power consumption (without attachments) | 15 W |
| Max power consumption | 150 W |

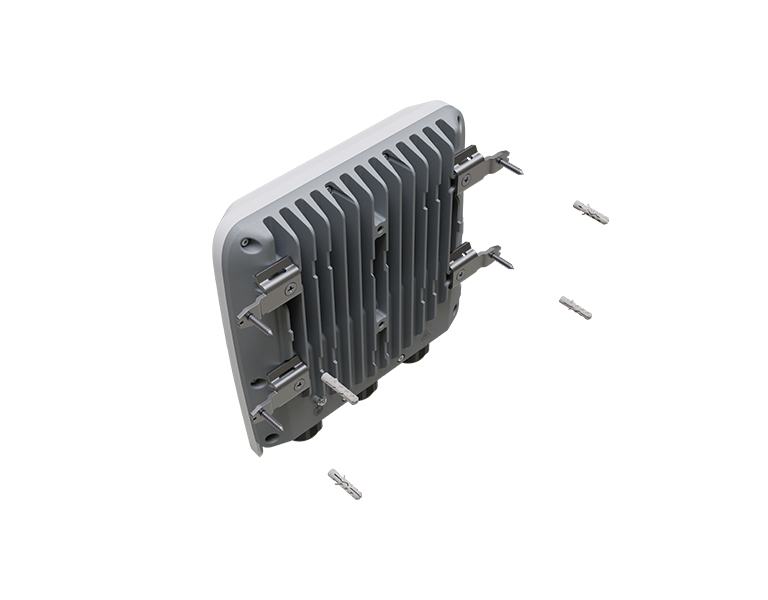

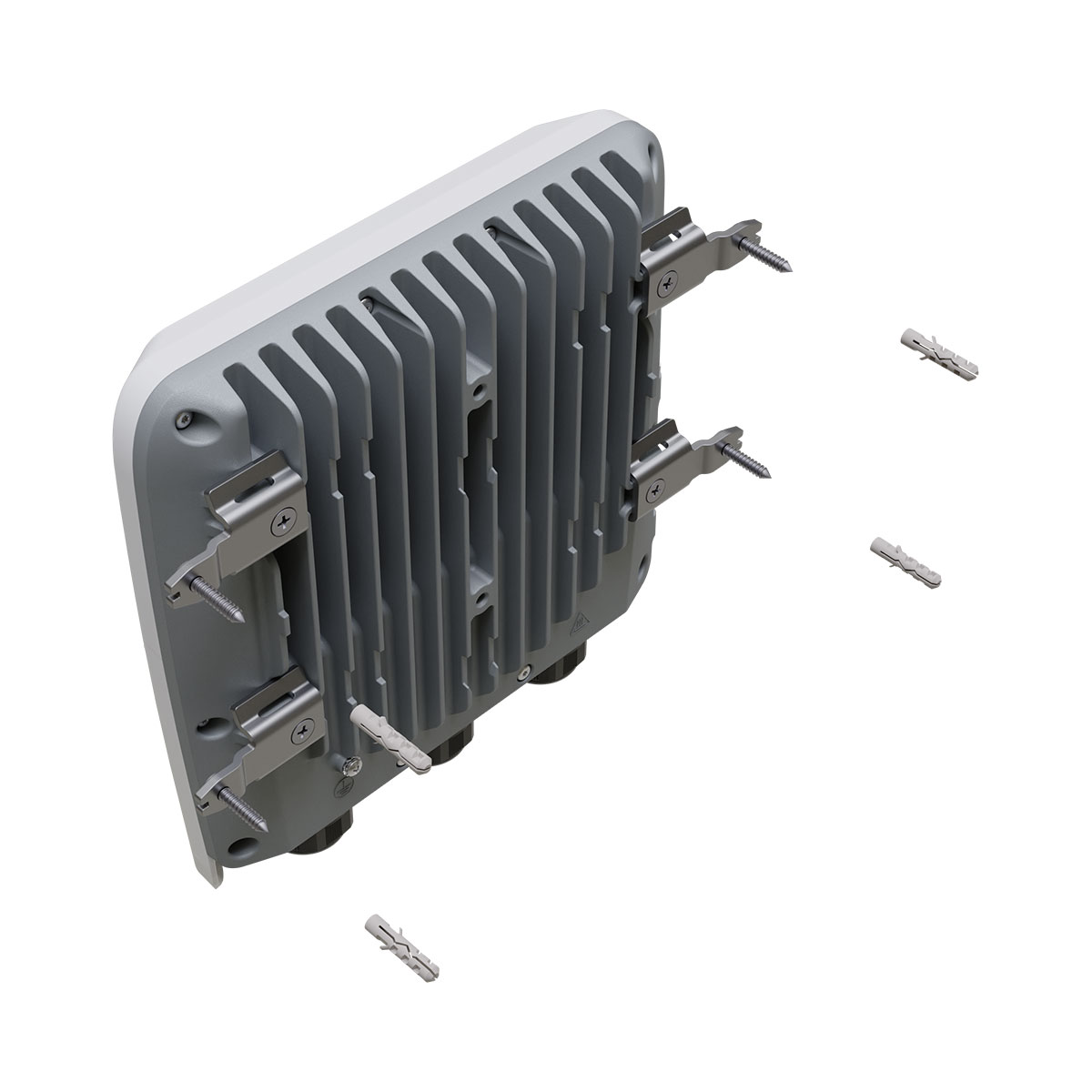

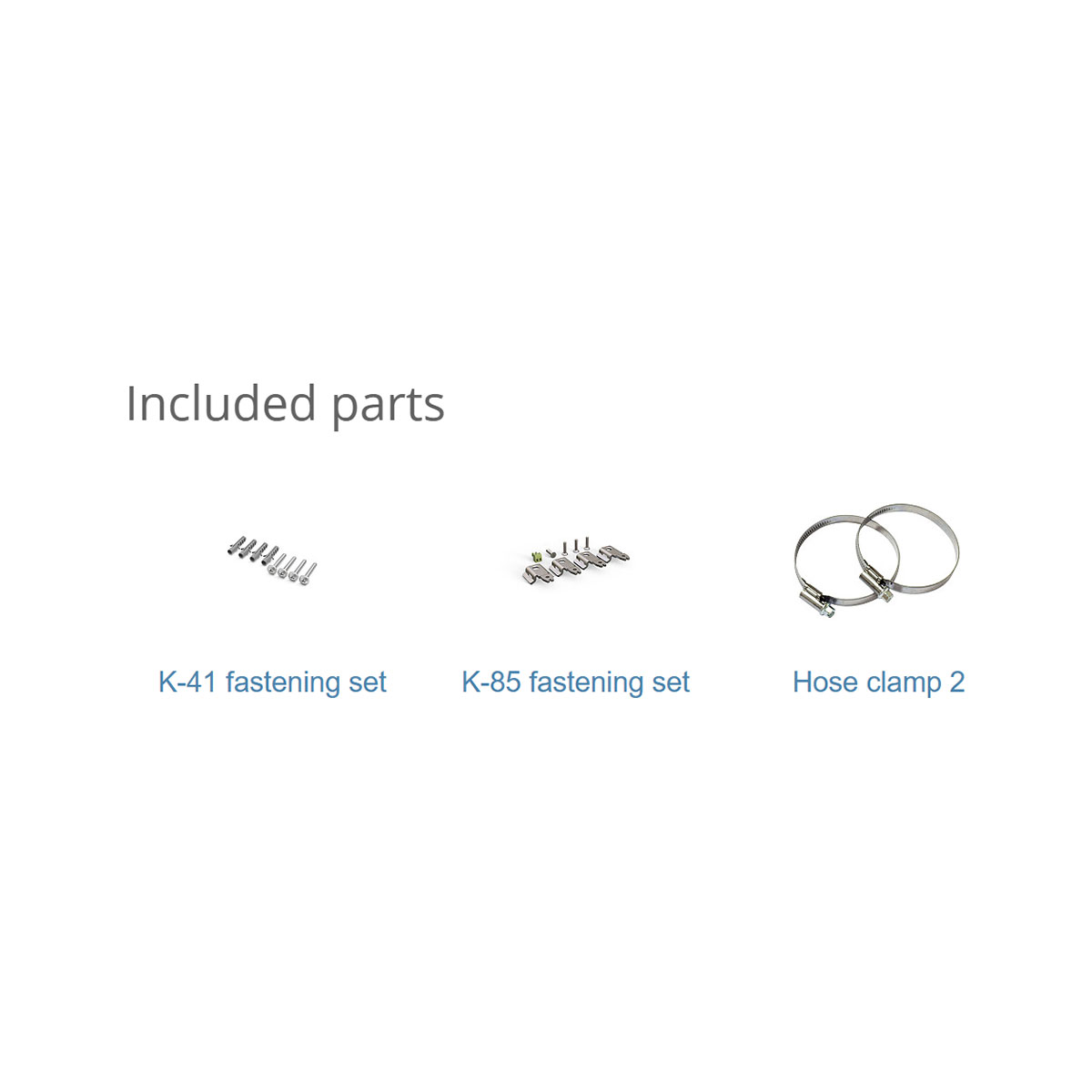

| Package contains | • Hose clamp • Fastening set • Screw set |
