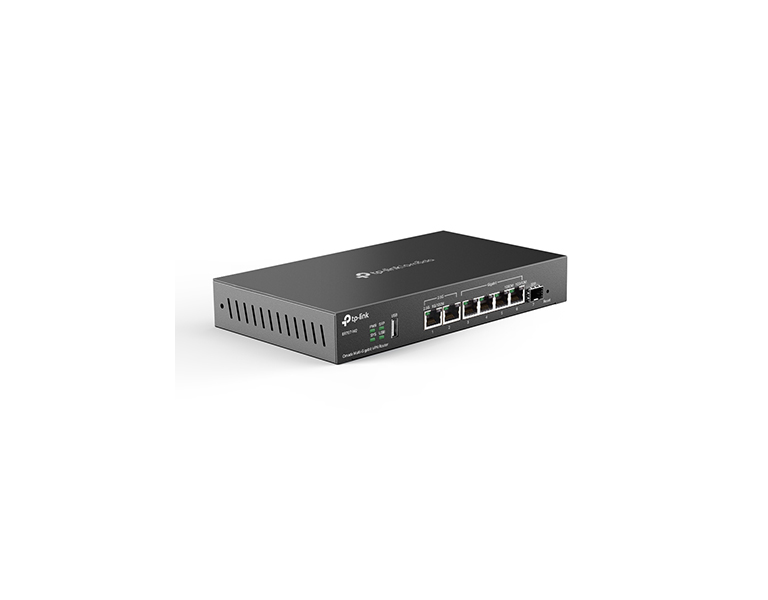

TP-LINK ER707-M2 V1.2 Omada Multi-Gigabit VPN Router
Κωδικός προϊόντος:
ER707-M2
199,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
160,48 €
Άμεσα διαθέσιμο
TP-LINK ER707-M2 V1.2 Omada Multi-Gigabit VPN Router
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
|
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Χαρακτηριστικά
| Specifications | |
| General | |
| CPU | Dual-core ARMv8 |
| Interface | 1× 2.5G RJ45 WAN Port 1× 2.5G RJ45 WAN/LAN Port 1× Gigabit SFP WAN/LAN Port 4× Gigabit RJ45 WAN/LAN Ports |
| USB | 1 USB2.0 (Supports LTE backup with LTE dongle, and USB Storage) |
| Button | Reset button |
| Power Supply | 12V / 1.5A Adapter |
| Flash | 128 MB NAND |
| DRAM | 1 GB DDR4 |
| Surge Protection | 4 kV surge protection |
| Max Power Consumption | 14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected) |
| Dimensions ( W x D x H ) | 226 × 131 × 35 mm |
| SDN Support | |
| Hardware Controller (OC200/ OC300) Software Controller Cloud-Based Controller |
Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning) |
| Performance | |
| Concurrent Session | 500,000 |
| New Sessions /Second | 6,000 |
| IPS Throughput |
TCP: 208 Mbps
UDP: 161 Mbps
|
| DPI Throughput |
TCP: 1823 Mbps
UDP: 1272 Mbps
|
| Static IP NAT Throughput (Upload / Download) | 2365.17 Mbps / 2364.45 Mbps |
| DHCP NAT Throughput (Upload / Download) | 2364.45 Mbps / 2366.04 Mbps |
| PPPoE NAT Throughput (Upload / Download) | 2347.14 Mbps / 2348.29 Mbps |
| L2TP NAT Throughput (Upload / Download) | 1308.86 Mbps / 974.10 Mbps |
| PPTP NAT Throughput (Upload / Download) | 1236.27 Mbps / 1280.99 Mbps |
| 66 Byte Packet forwarding rate (Upload / Download) | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate (Upload / Download) | 2461.18 Mbps / 2457.32 Mbps |
| SSL VPN Throughput | 132.24 Mbps |
| GRE VPN Throughput | 286.84 Mbps |
| IPSec VPN Throughput | ESP-SHA1-AES256: 673.3 Mbps, ESP-SHA256-AES256: 650.2 Mbps ESP-SHA384-AES256: 629.3 Mbps, ESP-SHA512-AES256: 633.8 Mbps |
| L2TP VPN Throughput | Unencrypted: 1243.7 Mbps; Encrypted: 561.0 Mbps |
| OpenVPN Throughput | 135.0 Mbps |
| Wireguard VPN Throughput | 343Mbps |
| Basic Functions | |
| WAN Connection Type | IPv4_Static IP IPv4_Dynamic IP IPv4_PPPOE IPv4_L2TP IPv4_PPTP IPv6_PPP IPv6_DHCPv6 IPv6_Static IP IPv6_6in4 IPv6_Pass-Through Mobile Broadband: 4G/3G modem for backup via USB port |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| MAC Clone | Modify WAN/LAN MAC Address |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / NonAddress mode |
| Stateful ACL | √ |
| mDNS Repeater | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| VLAN | 802.1Q VLAN |
| Transmission | |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing RIP (only in Standalone Mode) OSPF (only in Standalone Mode) |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| VPN | |
| SSL VPN | SSL VPN Server 60 SSL VPN Tunnels |
| IPSec VPN | 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| GRE | Only in Standalone Mode |
| WireGuard VPN | √ |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (12) 60 Tunnels (Shared with L2TP) PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (12) 60 Tunnels (Shared with PPTP) L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (6) 66 OpenVPN Tunnels |
| Security | |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | Web Group Filtering URL Filtering Web Security |
| DNS Proxy | DNSSEC, DoH, and DoT |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Access Control | Source/Destination IP Based Access Control |
| Authentication | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher / SMS / Radius) External Radius Server External Portal Server LDAP3 |
| Management | |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | ER707-M2 Power Adapter Rackmount Kit Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
