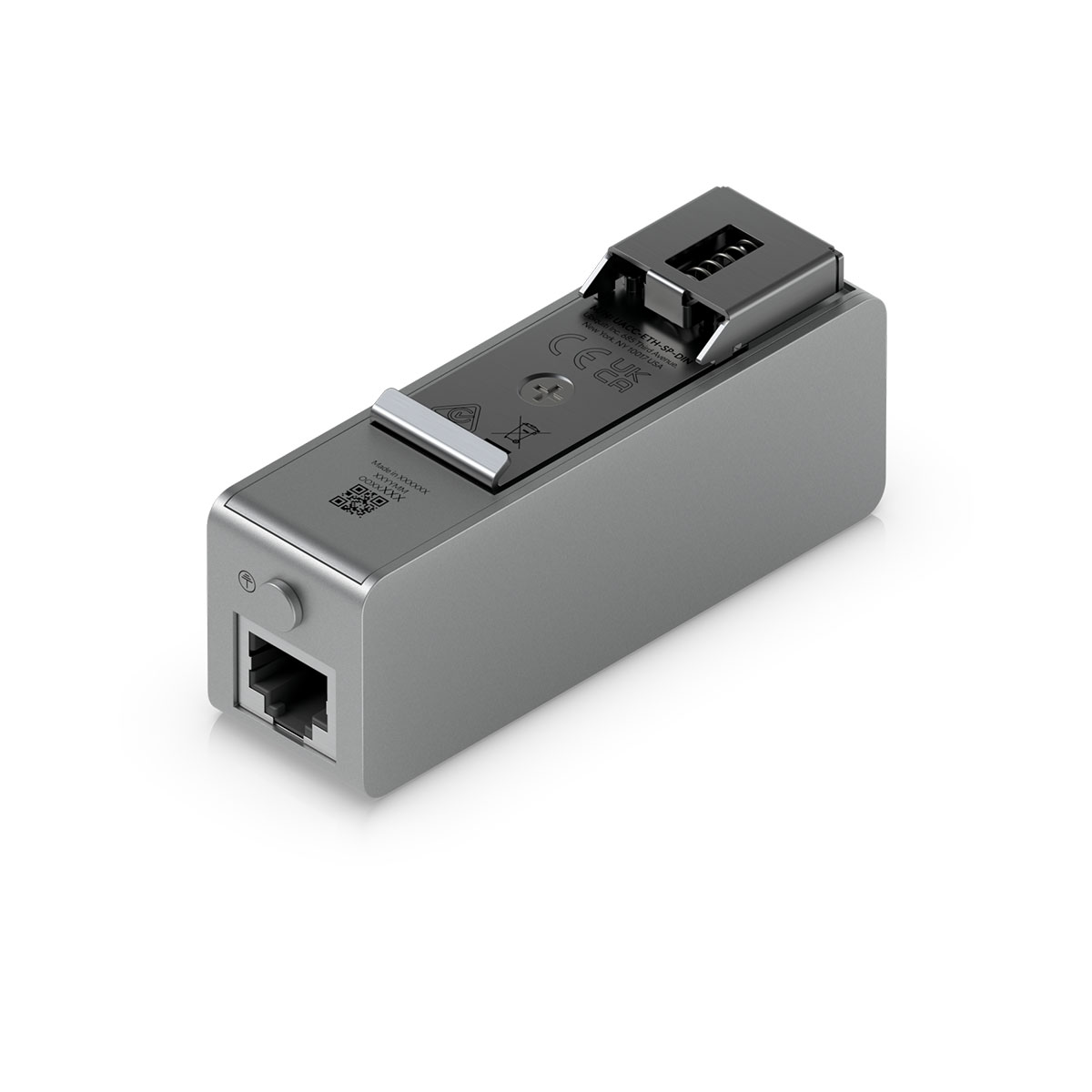

Ubiquiti UACC-ETH-SP-DIN, Ethernet Surge Protector up tp 10 GBE, POE++, 20KA Surge Discharge
Ubiquiti UACC-ETH-SP-DIN, Ethernet Surge Protector up tp 10 GBE, POE++, 20KA Surge Discharge
The device offers bidirectional protection for transmissions up to speeds of 10 GbE and ensures surge protection up to 20 kA, making it an ideal choice for indoor network installations. With support for PoE++, it is possible to power the device directly through the Ethernet cable, simplifying installation. Wall or DIN rail mounting provides flexibility and easy integration into various environments, and multiple grounding points ensure better stability and security of the system.
Key Features
- Bidirectional protection for transmissions up to speeds of 10 GbE
- Surge protection up to 20 kA for maximum security
- Support for PoE++ for powering via Ethernet
- Wall or DIN rail mounting for flexible installation
- Multiple grounding points for better stability and security
| Mechanical | |
| Dimensions | 89 x 25.5 x 37.4 mm |
| Weight | 74 g |
| Enclosure Material | Polycarbonate, SGCC steel |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
