MikroTik CRS309-1G-8S+IN 800MHz, 1xGLAN, 8xSFP+, RouterOS/SwOS L5
Κωδικός προϊόντος:
CRS309-1G-8S+IN
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

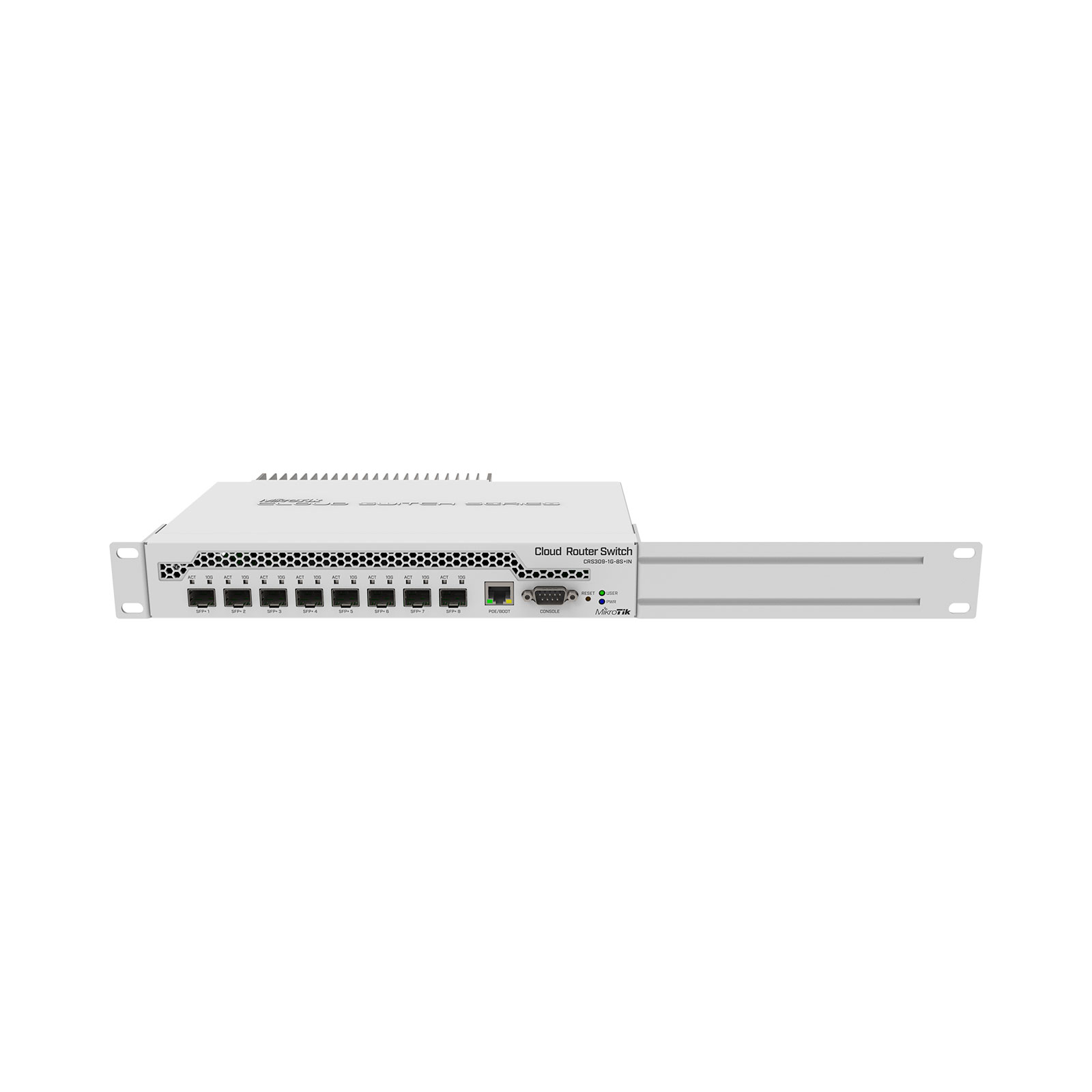

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

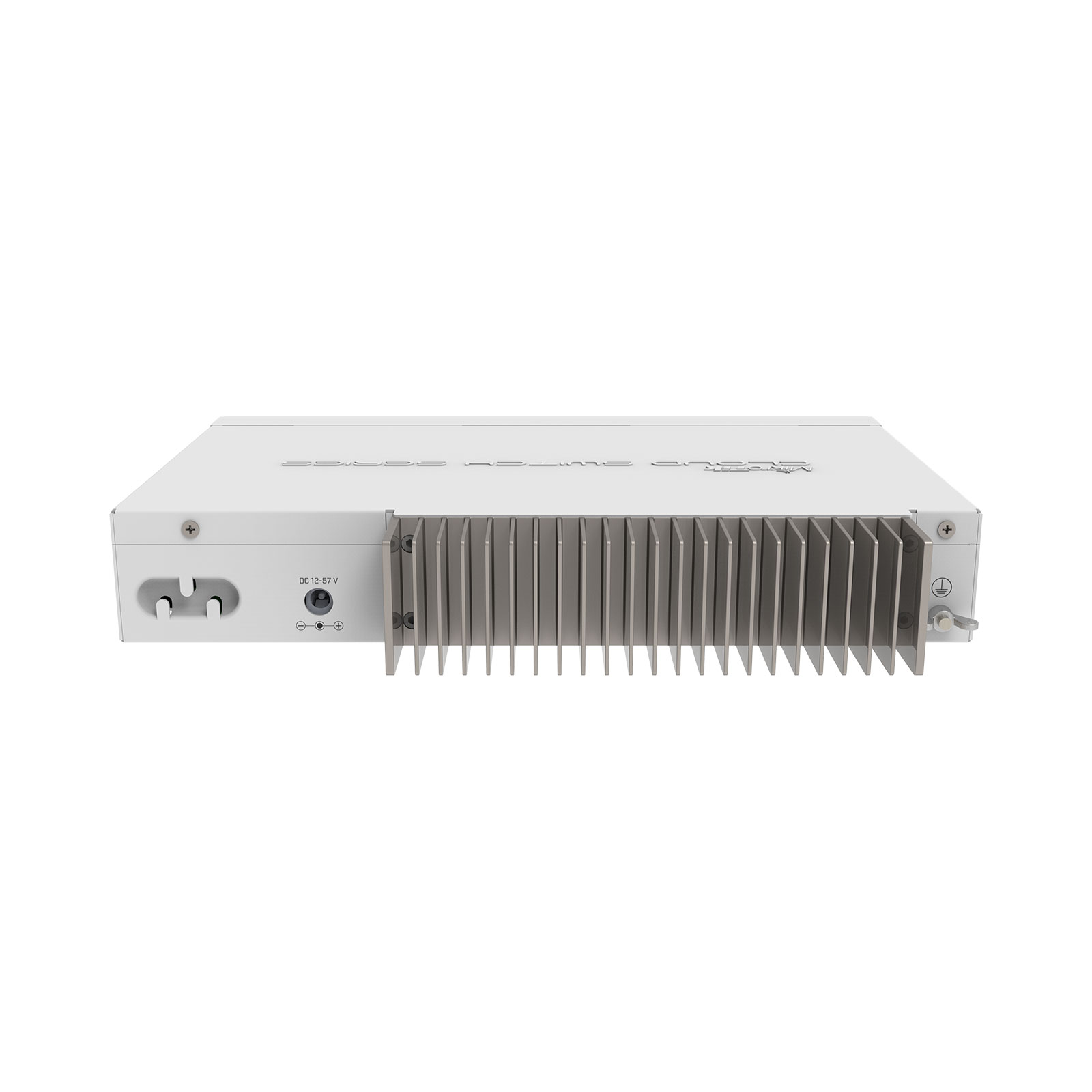

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
Χαρακτηριστικά
| Specifications | |
| Product code | CRS309-1G-8S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX8208 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 272 x 158 x 44 mm |
| License level | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 17 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Fiber | |
| SFP+ ports | 8 |
| Peripherals | |
| Serial port | RS232 |
| Other | |
| CPU temperature monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
