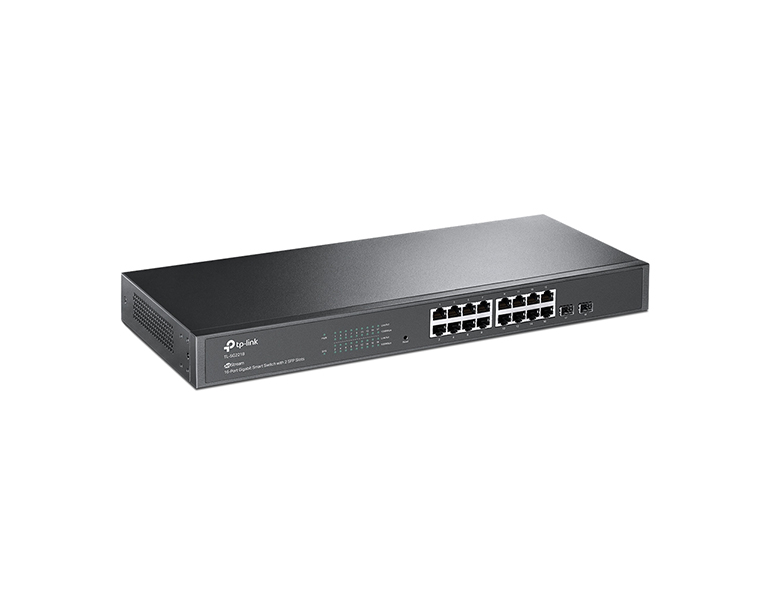

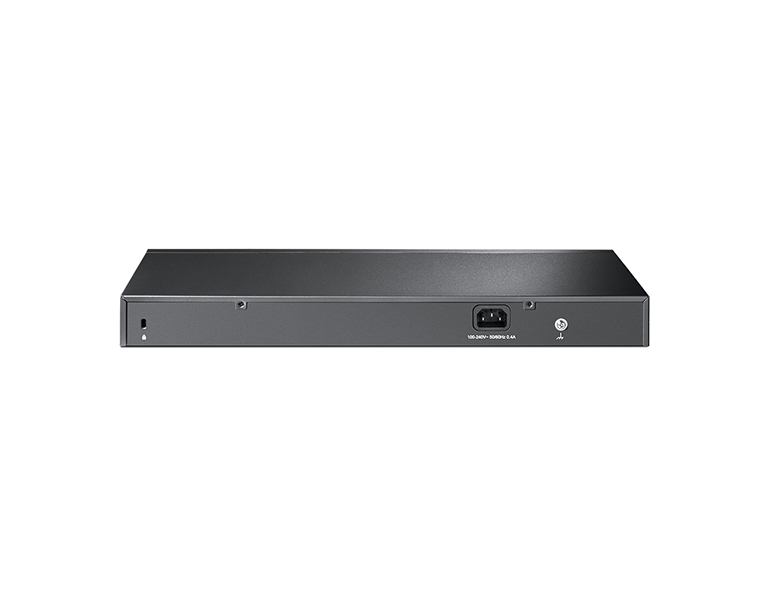

TP-LINK TL-SG2218 V1 16-Port Gigabit Smart Switch with 2 SFP Slots
| • Full Gigabit Ports: 16x gigabit RJ45 ports and 2x gigabit SFP Slots provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • Static Routing: Helps route internal traffic for more efficient use of network resources. • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • Standalone Management: Web, CLI (Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities |
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level
Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
| SPECIFICATIONS | |
| Interface | 16 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 12.3 W (220 V/50 Hz) |
| Max Heat Dissipation | 41.97 BTU/hr |
| Standby Power Consumption | 3.84 W (220 V/50 Hz) |
| Dimensions(WxDxH) | 440 x 180 x 44 mm |
| Fan Quantity | Fanless |
| Installation | Rackmount |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2218 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet |
