TP-LINK SG2210P V5.2 JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
Κωδικός προϊόντος:
SG2210P
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • 61 W PoE Budget: 8x 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*. • Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more. • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features. |
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
Χαρακτηριστικά
| HARDWARE FEATURES | |
| Interfaces | 8 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet |
| PoE | PoE Standard: 802.3af/at PoE Ports: 8, up to 30 W PoE Power Budget: 61 W |
| PERFORMANCE FEATURES | |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 9KB |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 32 (IPv4, IPv6) |
| PHYSICAL & ENVIRONMENT FEATURES | |
| Power Supply | 53.5 VDC/1.31 A External Adapter |
| Maximum Power Consumption | 77.8 W (110 V/60 Hz) (with 61 W PD connected) |
| Max Heat Dissipation | 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected) |
| Standby Power Consumption | 4.5 W (110 V/60 Hz) |
| Dimensions(WxDxH) | 209 x 126 x 26 mm |
| FAN Quantity | Fanless |
| Installation | Desktop/ Wall-Mounting |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°Cto 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |

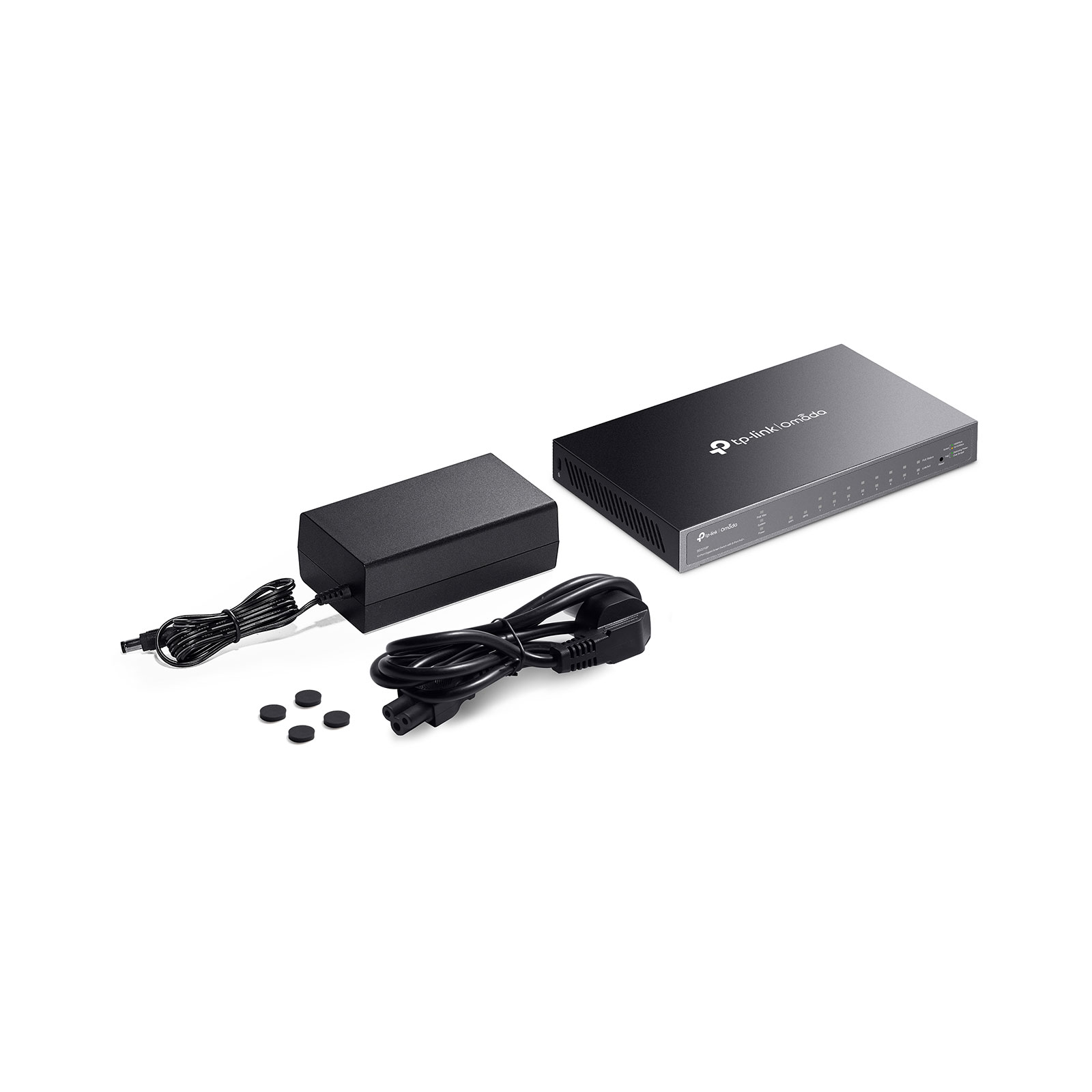

| Package Contents | TL-SG2210P Power Adapter Installation Guide Rubber Feet |
