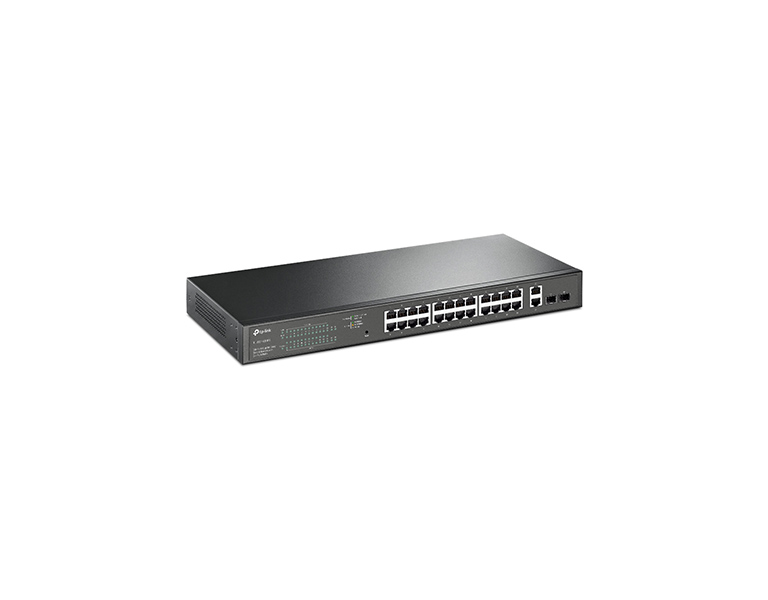

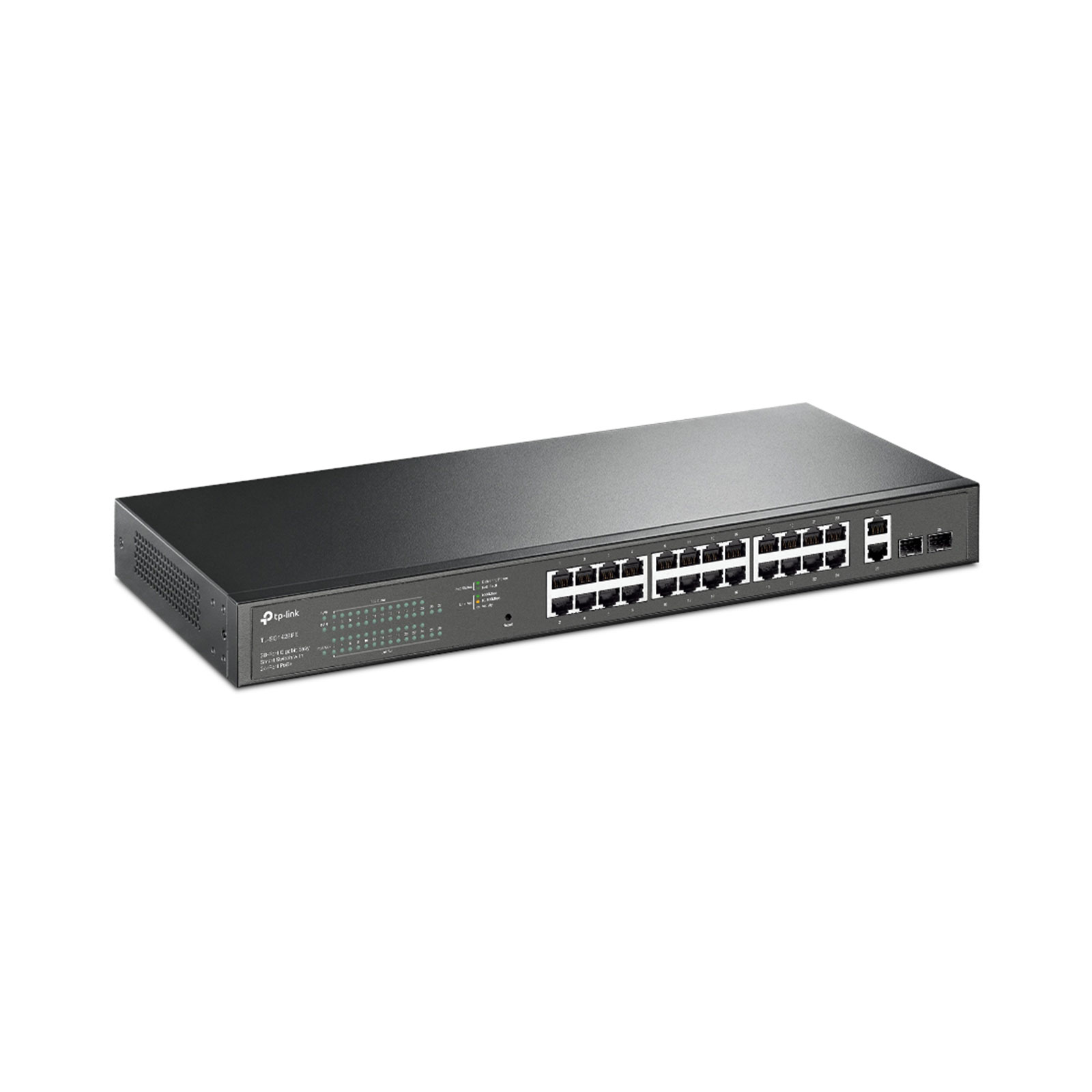

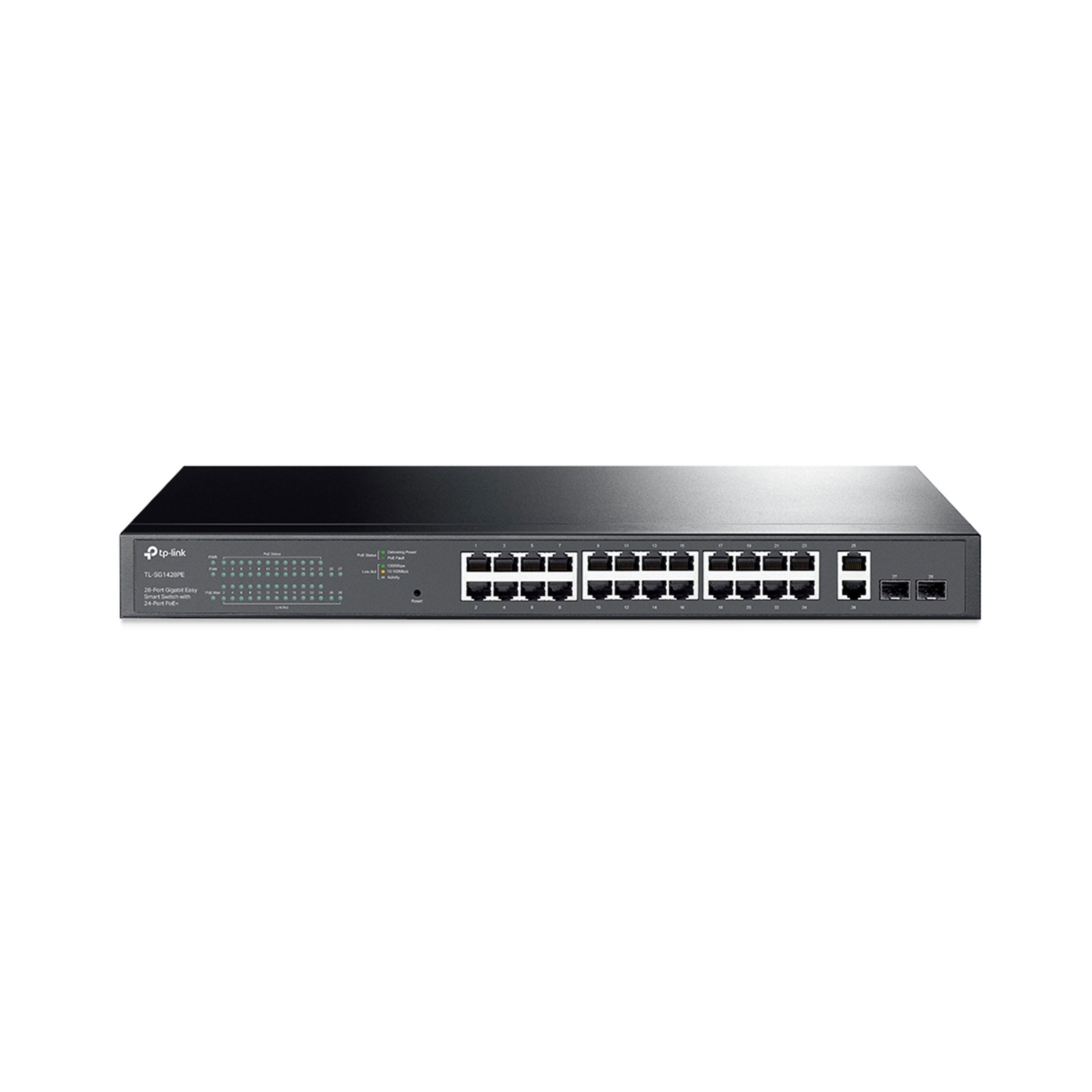

TP-LINK TL-SG1428PE V3 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
|
• 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots |
Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance.
Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| HARDWARE FEATURES | |
| Interfaces | 26 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots |
| PoE Standard | 802.3 af/at |
| PoE Ports | 24, up to 30 W Per Port |
| PoE Power Budget | 250 W* |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Max Address Table | 8 K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Power Supply | 100-240V AC, 50/60Hz |
| Maximum Power Consumption (220V/50Hz) | 27 W (220V/50Hz. no PD connected) 304.7 W (220V/50Hz. with 250W PD connected) |
| Maximum Heat Dissipation | 92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 192 W PD connected) |
| Dimensions (W×D×H) | (440 × 220 × 44 mm) |
| FAN Quantity | 2 |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C |
| Operating Humidity | 10%~90%RH, non-condensing |
| Storage Humidity | 10%~90%RH, non-condensing |
| Certification | CE, FCC |
| SOFTWARE FEATURES | |
| L2 Features | • Link Aggregation - Static link aggregation - Up to 8 aggregation groups and up to 4 ports per group • Loopback Detection • Port Statistics • Cable Test • Flow Control • Mirroring - Port Mirroring - Ingress/Egress/Both |
| IGMP Snooping | • IGMP v1/v2/v3 Snooping • 128 Max Multicast Entries |
| VLAN | • 802.1Q VLAN • Port Based VLAN • MTU VLAN |
| QoS | • Port Based, 802.1p Based, 802.1p QoS/ DSCP priority • Bandwidth Control - Ingress Rate/Egress Rate/Both • Storm Control - Broadcast/Multicast/Unknown-Unicast Control |
| PoE | PoE Management • PoE Auto Recovery • Extend Mode |
