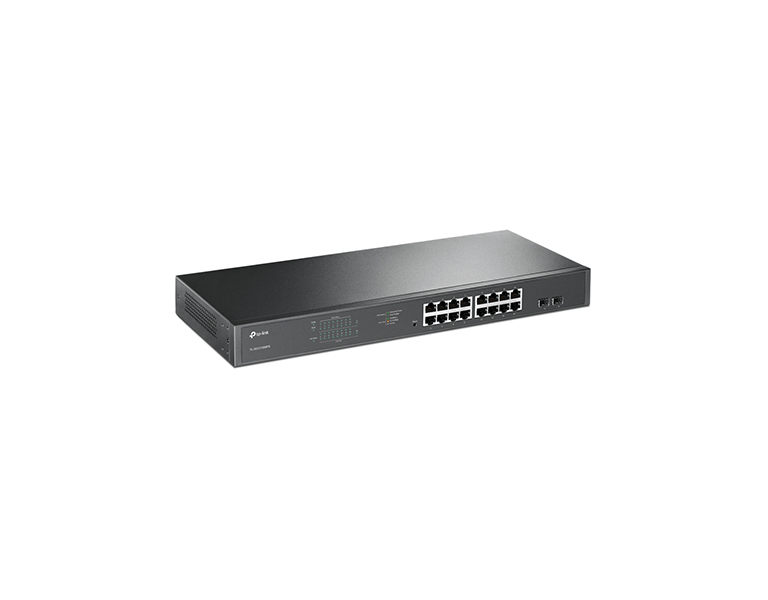

TP-LINK TL-SG1218MPE V5 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
| • 16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots • PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems • Port Priority is able to guarantee the quality of sensitive application like video monitor • Intelligent power management can protect the switch from overload • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV |
Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Easy to Use
1) Connect to Power
2) Connect the Devices
3) Enjoy
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functiona for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
| HARDWARE FEATURES | |
| Interface | 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× Combo Gigabit SFP Ports |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W |
| Dimensions (WxDxH) | 440 × 180 × 44 mm |
| Mounting | Rack Mountable |
| Max Power Consumption | • 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery |
| VLAN | • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Management | • Web-based GUI • Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Package Contents | • TL-SG1218MPE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
