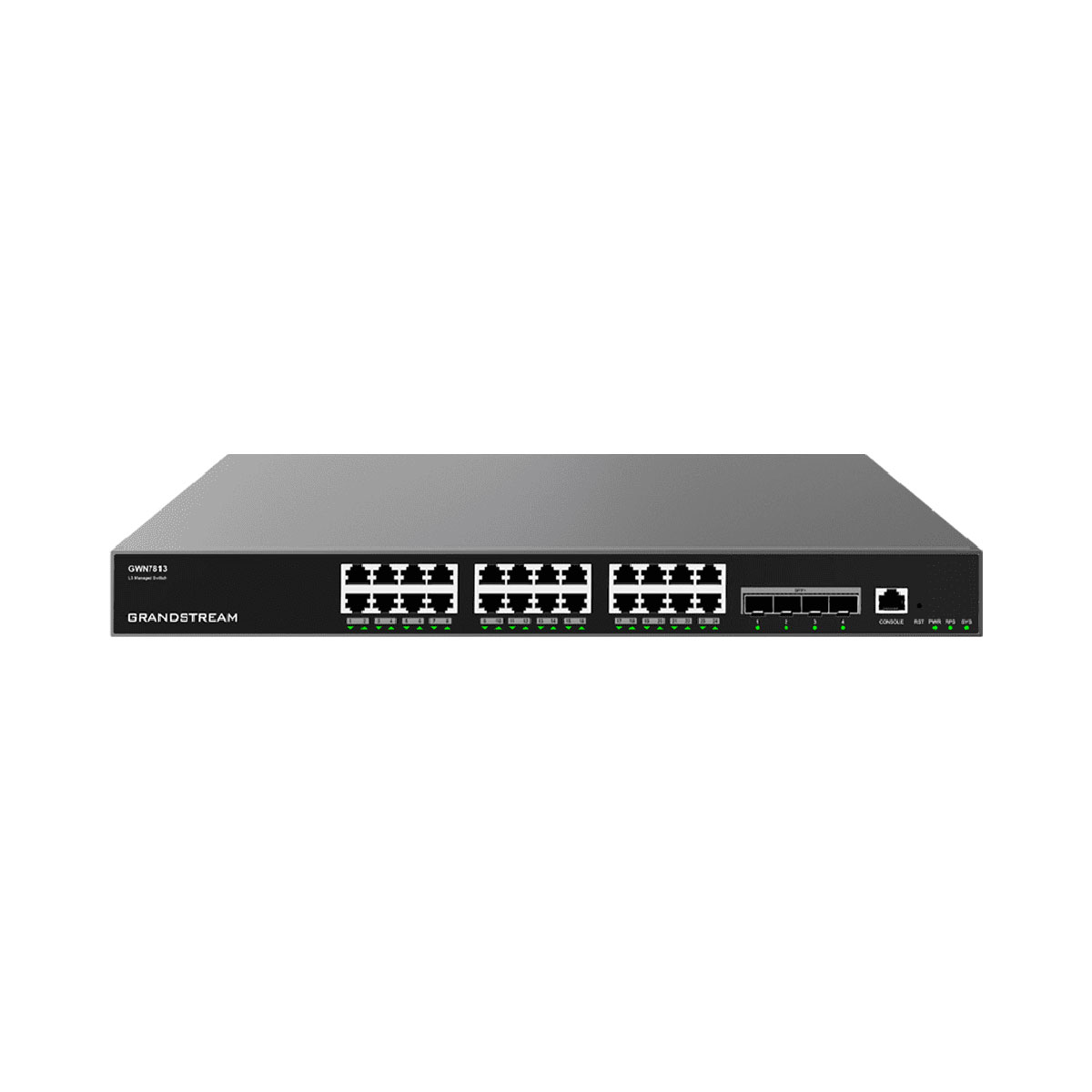

Grandstream GWN7813 Enterprise Layer 3 Managed Network Switch
The GWN7813 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. GWN7813 series can be managed in a number of ways, including the local Web user interface of the GWN7813 series switch and CLI, the command-line interface. The series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7813 series are the best value enterprise-grade managed network switches for medium-to-large businesses.
Features:
• 24 Gigabit Ethernet ports and 4 10Gigabit SFP+ ports
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic
| Specifications | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Gigabit Ethernet Ports | 24 |
| 10Gigabit SFP+ Ports | 4 |
| Maximum no. of Supported Modules | SM-10G: 4 MM-10G: 4 RJ45-10G: 2 |
| Console | 1 |
| Link Aggregation | 14 |
| External Redundant Power Supply( RPS) | 12V/5A(60W) |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 64Gbps |
| Switching Capability | 128bps |
| Forwarding Rate | 95.232Mpps |
| Packet Buffer | 12MB |
| Network Latency | <4µs |
| Switching | • 16K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP (pending) • Spanning tree, 32 instances for STP/RSTP/MSTP |
| Routing | • Static routing • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 • Policy routing (pending) |
| Multicast | • IGMP Snooping • MLD Snooping • MVR (pending) |
| QoS/ACL | • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD (TBD) and copper test |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection(pending) and loopback protection(pending) • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Power Supply LEDs | 2x bi-color LEDs for per power supply PWR&RPS |
| Data Transferring LEDs | 28x green-color LEDs |
| Environmental | Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing) |
| Dimensions | 440mm(L)x200mm(W)x44mm(H) |
| Unit Weight | 2.94Kg |
| Package Content | 1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM 3*6) 1x Quick Installation Guide 1x Console Cable(Optional) 2x Rack-Mounting Kits 1x RPS, External Redundant Power Supply (Optional) |
| Compliance | FCC, CE, RCM, IC, UKCA |
