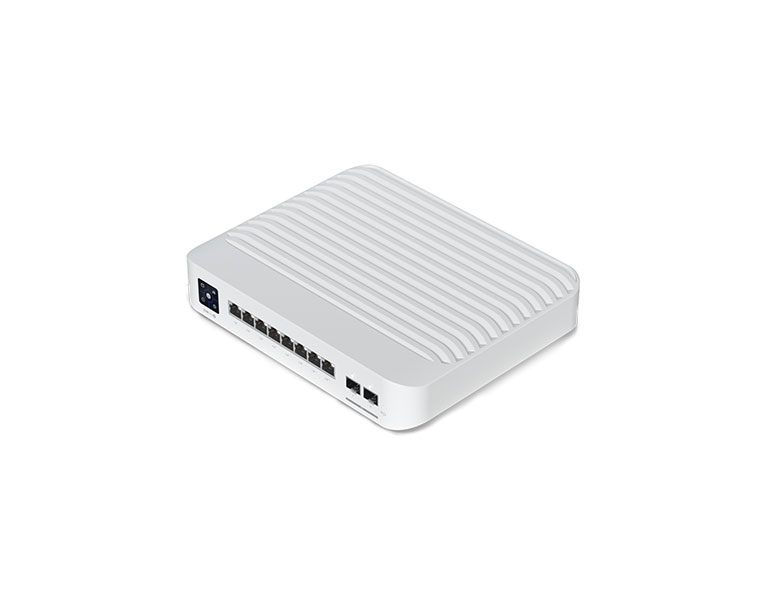

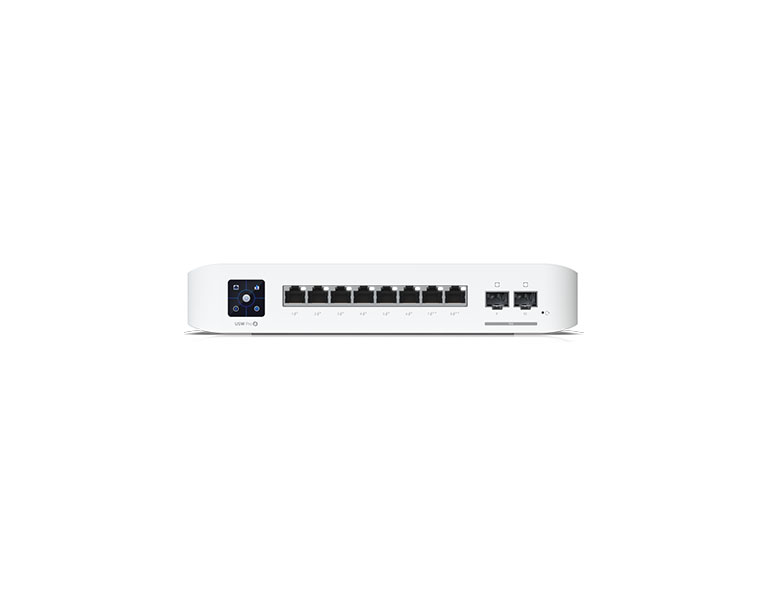

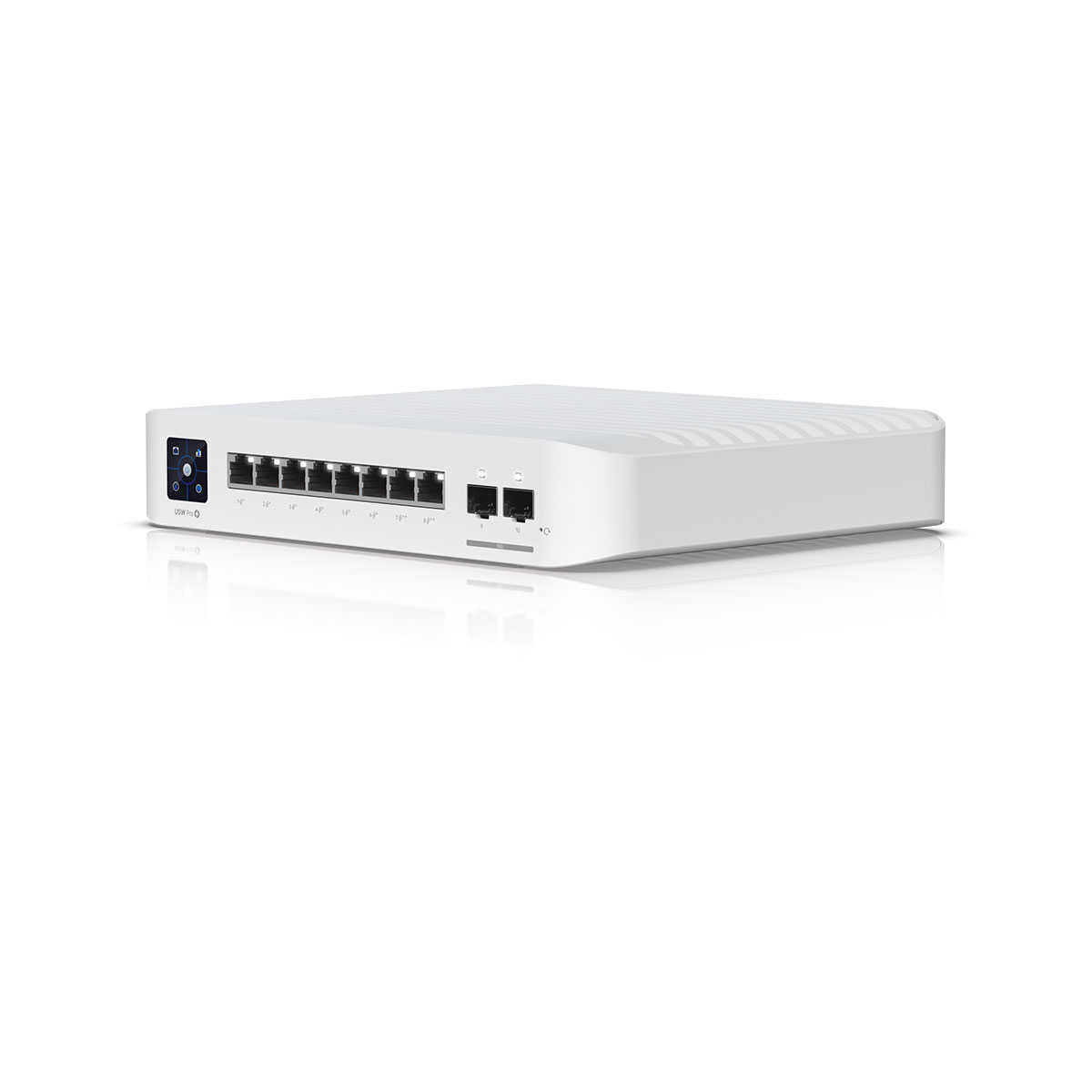

The Ubiquiti USW-Pro-8-PoE is a new switch that offers up to 6 POE/POE+ ports capable of delivering up to 30 W, as well as 2 POE++ ports that can deliver up to 60 W. The total maximum output power is 120 W. The switch has 2 SFP+ ports with speeds up to 10 Gbps, which is ideal for transferring even larger files. On the front of the switch you will find a touch control panel with AR settings as well. The switch can also be mounted on the wall with the appropriate bracket.
Key Features:
• Support new POE++
• High speed SFP+ ports with 10 Gbps
• Support L3
• Maximum output power 120W for POE

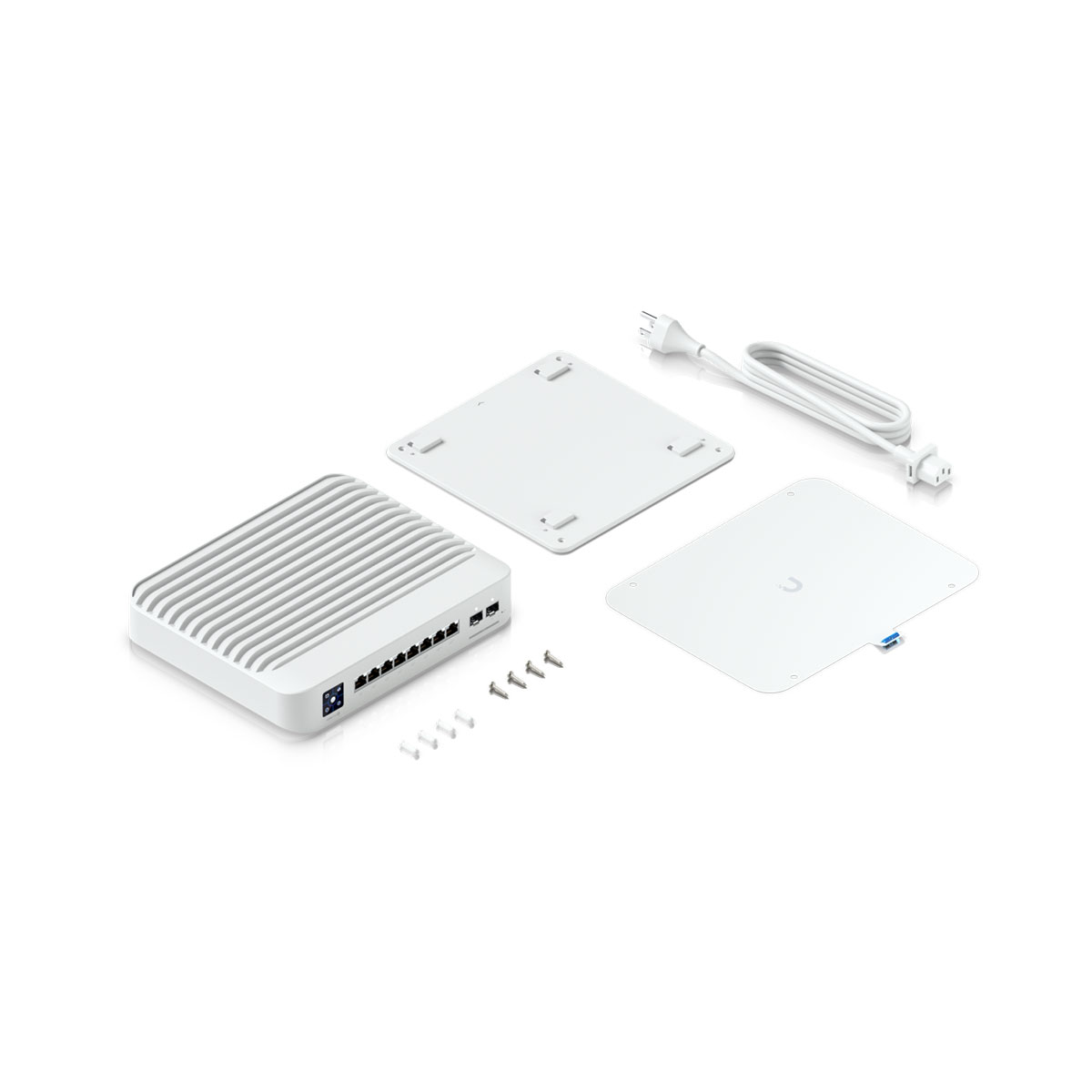

• Can be mounted on the wall
Χαρακτηριστικά
| Mechanical | |

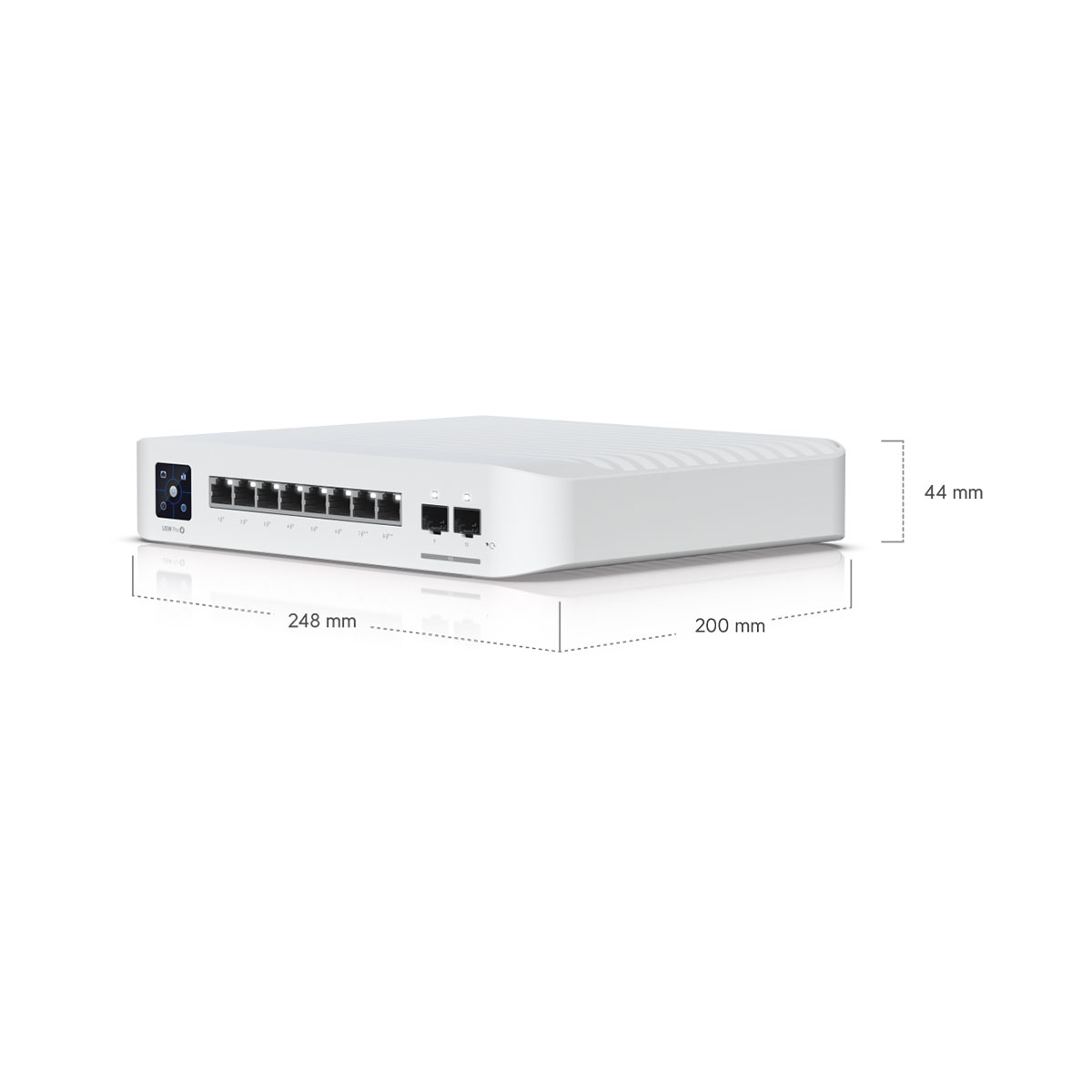

| Dimensions | 200 x 248 x 44 mm |
| Weight | 2.1 kg |
| Enclosure materials | Plastic, metal |
| Mount material | Plastic |
| Hardware | |
| Management interface | Ethernet In-Band |

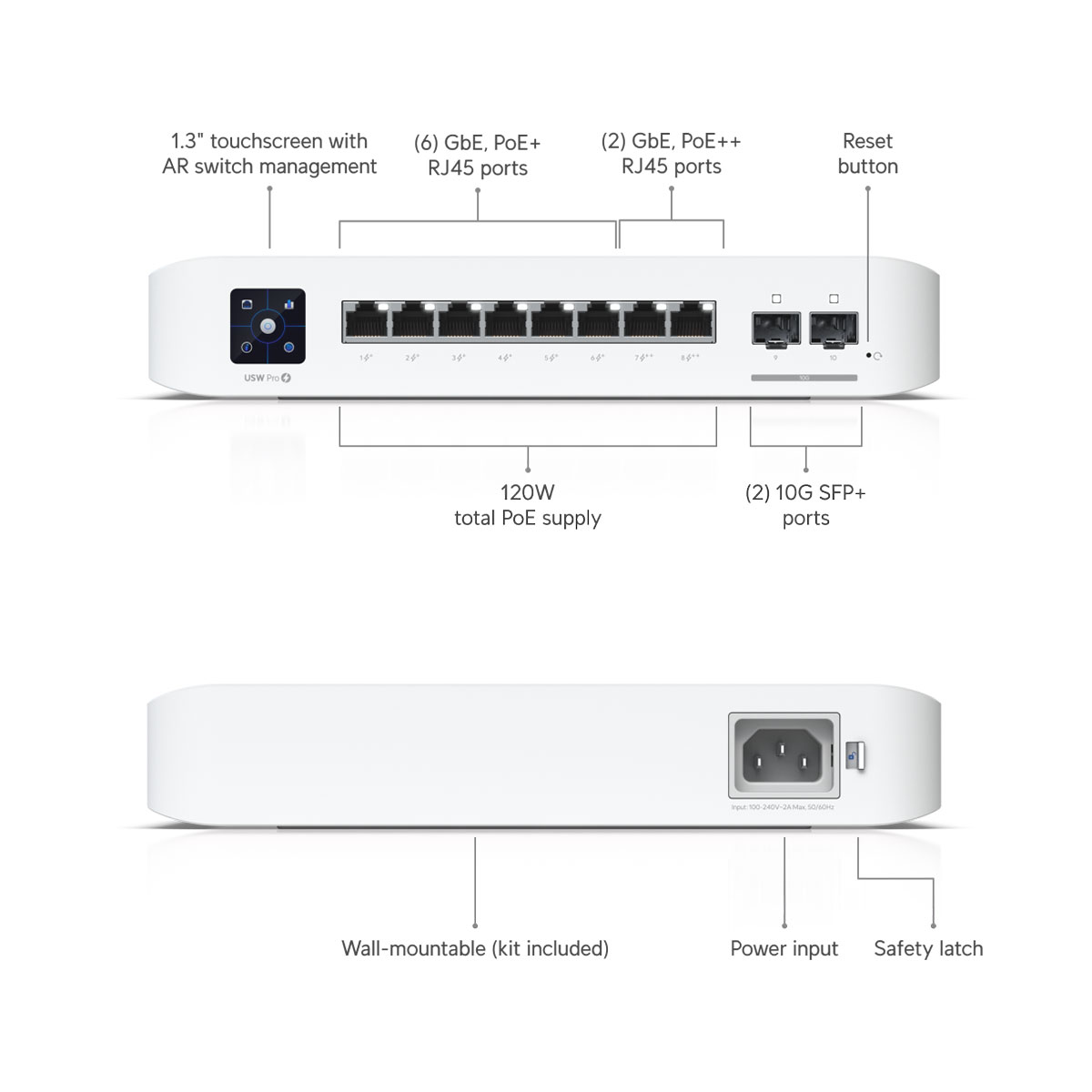

| Networking interface | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
| PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |

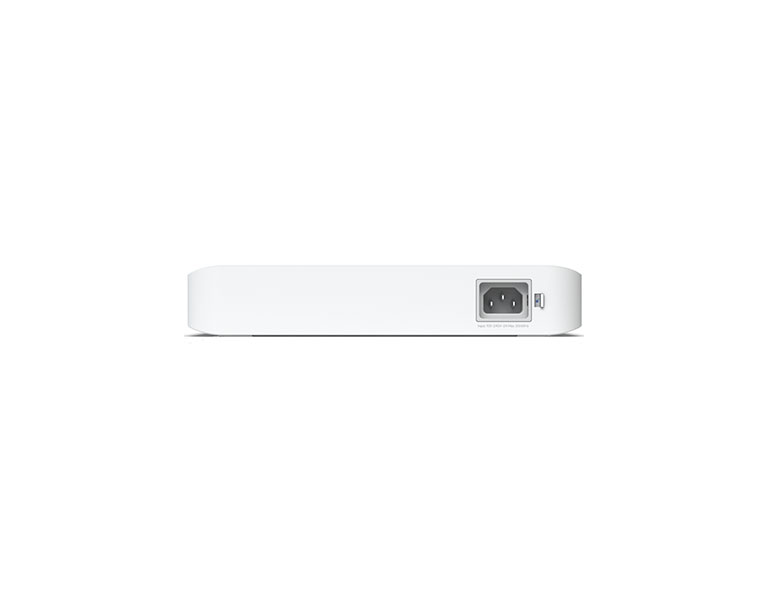

| Power method | Universal input, 100—240V AC, max. 2A |
| Power supply | AC/DC, internal |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 120W |
| Max. PoE wattage per port by PSE | PoE: 15W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| LEDs | RJ45 ports: link/activity |
| Button | Factory reset |
| Operating temperature | -5 to 45° C |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Application Requirements | |
| UniFi Network | Version 7.5.176 and later |
