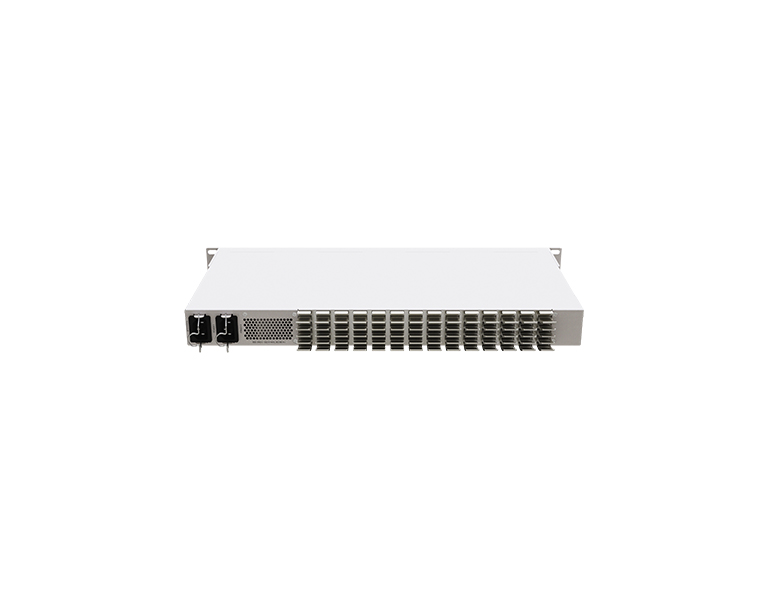

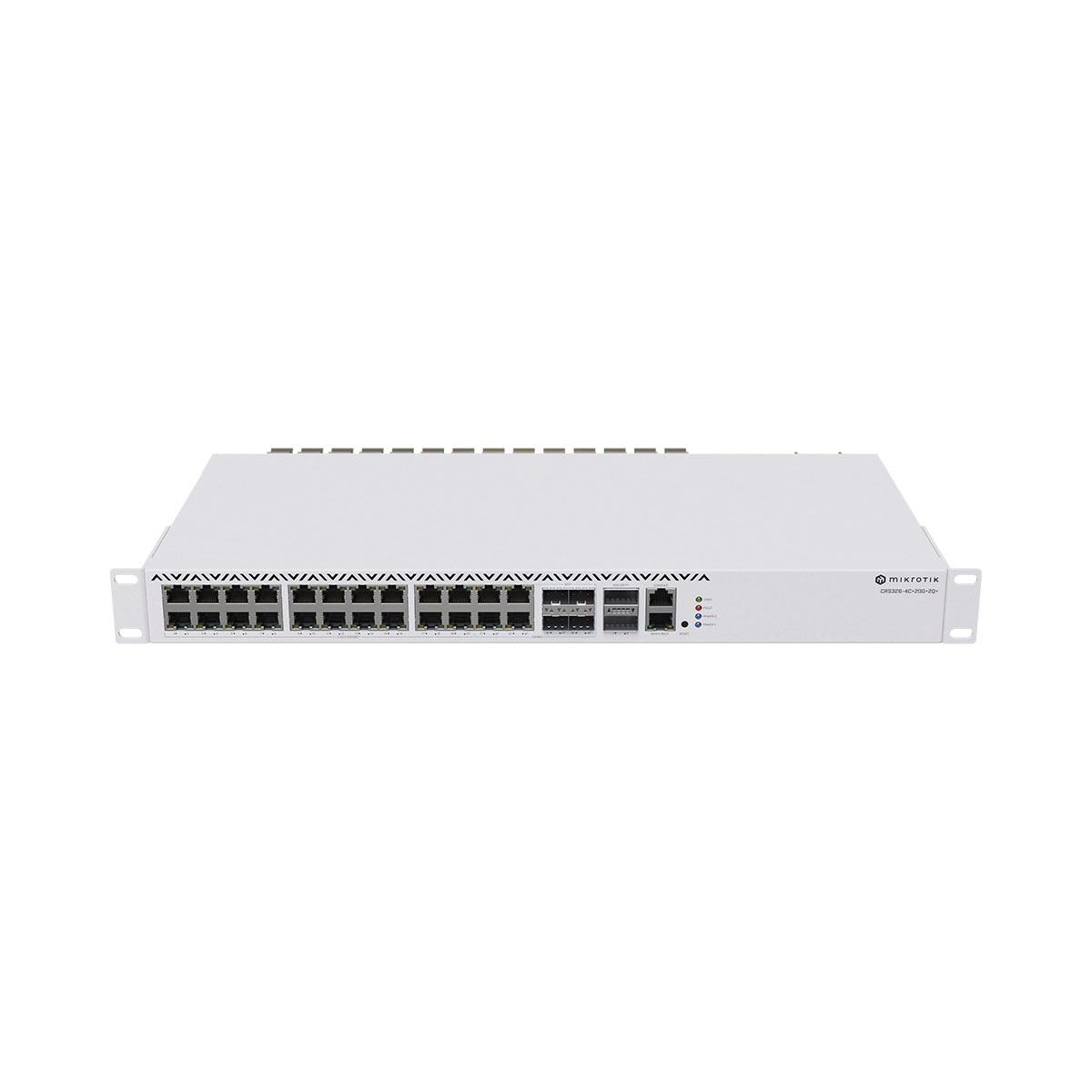

Mikrotik CRS326-4C+20G+2Q+RM 650MHz, 24XSFP+, 2XQSFP+, RouterOS/SwOS L5
Κωδικός προϊόντος:
CRS326-4C+20G+2Q+RM
1.120,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
903,23 €
Άμεσα διαθέσιμο
Mikrotik CRS326-4C+20G+2Q+RM 650MHz, 24XSFP+, 2XQSFP+, RouterOS/SwOS L5
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

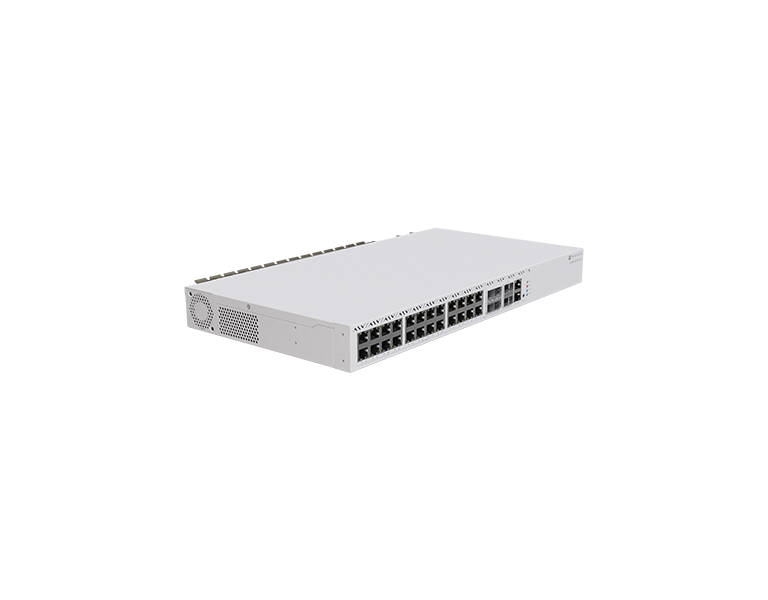

There are 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports that can either be used as 4x additional 2.5 Gigabit Ethernet ports OR as 10G SFP+ interfaces, and on top of all that – there are 2x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity. Practical and future-proof!
The mighty Marvell Prestera switch-chip that comes with a dedicated CPU can handle all your daily tasks without breaking a sweat. VLAN’s, Jumbo frames, link aggregation, ACL rules… You can even do some Layer3 routing!

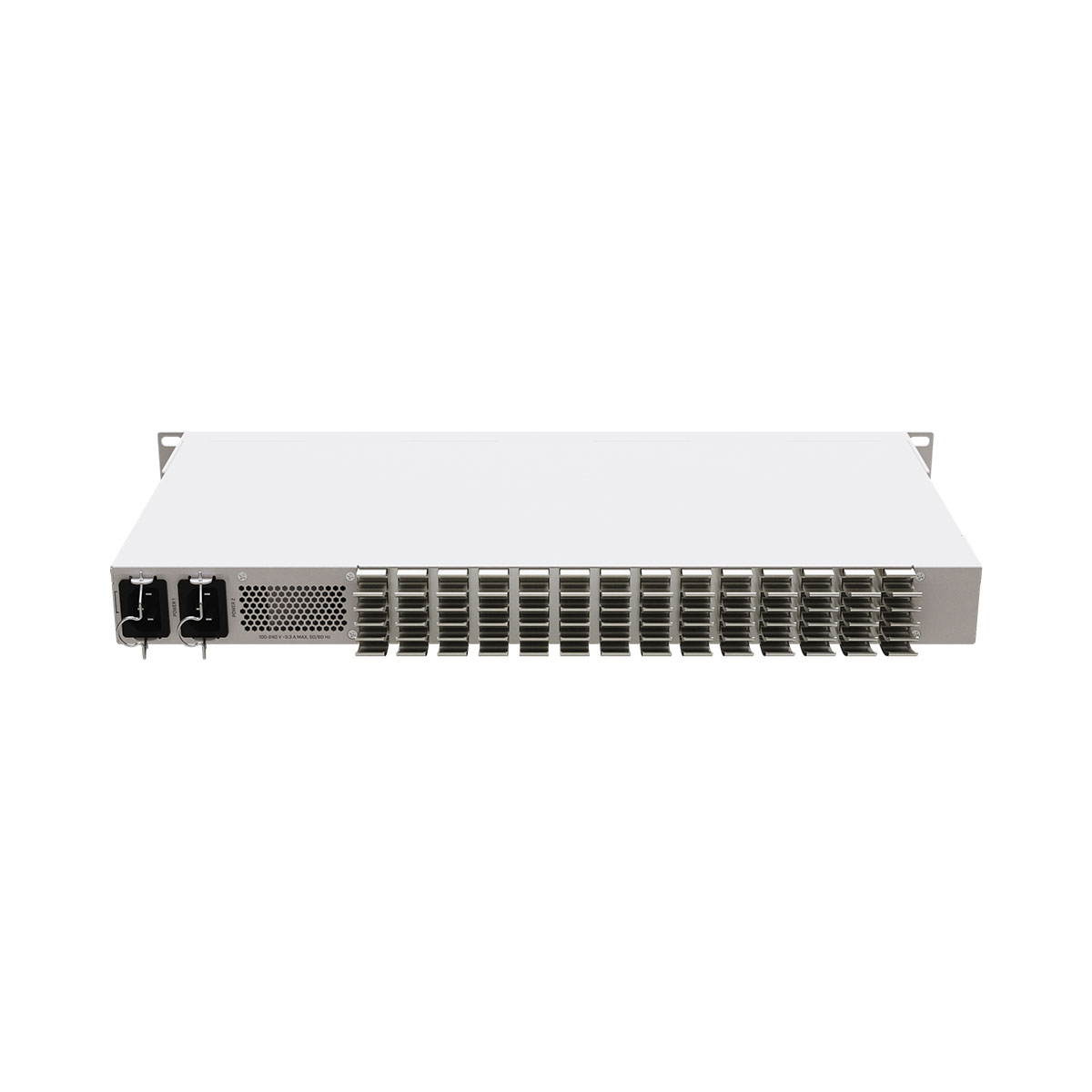

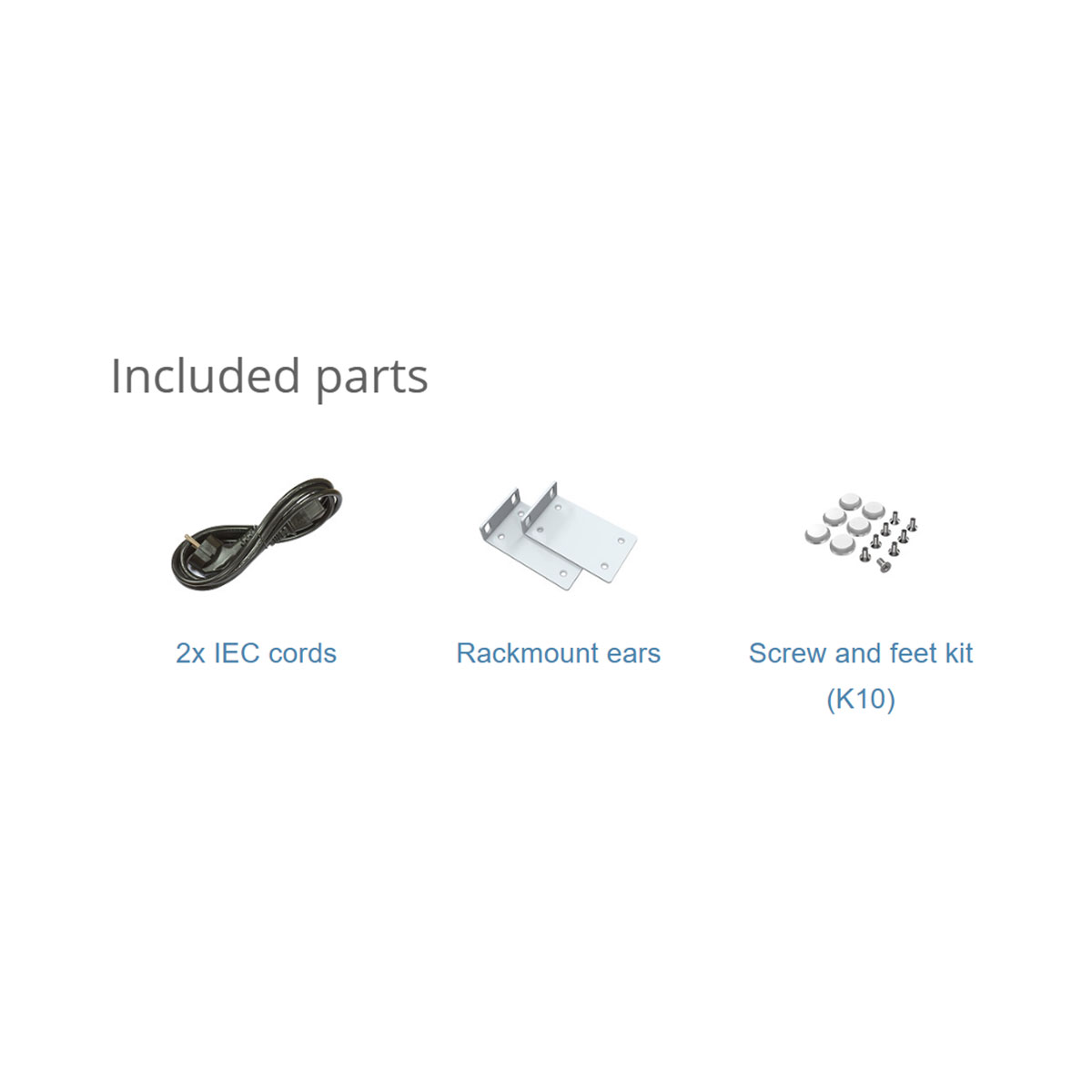

Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run. And we’ve included everything you need to secure this marvelous switch in a standard 19” rackmount!
Χαρακτηριστικά
| Specifications | |
| Product code | CRS326-4C+20G+2Q+M |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip mode | 98DX8332 |
| License level | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 47-63 |
| Max power consumption | 70 W |
| Max power consumption without attachments | 51 W |
| Cooling type | 2 fans |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Number of 2.5G Ethernet ports | 20 |

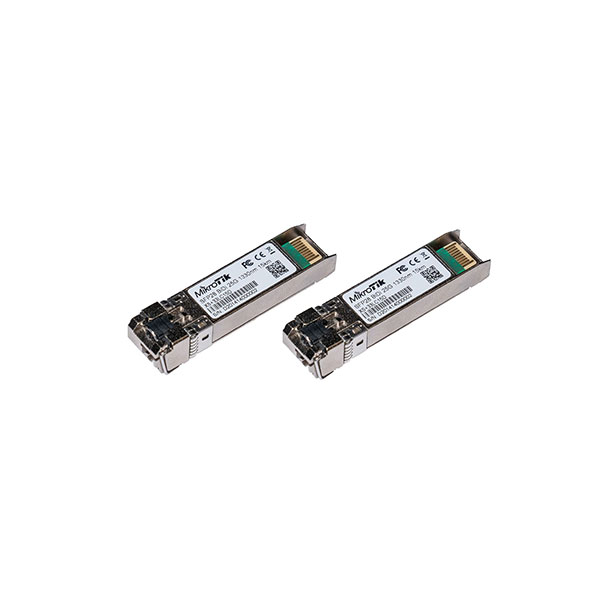

| Number of Combo 10G Ethernet/ SFP+ ports | 4* (2.5G ETH/10G SFP+) |
| Fiber | |

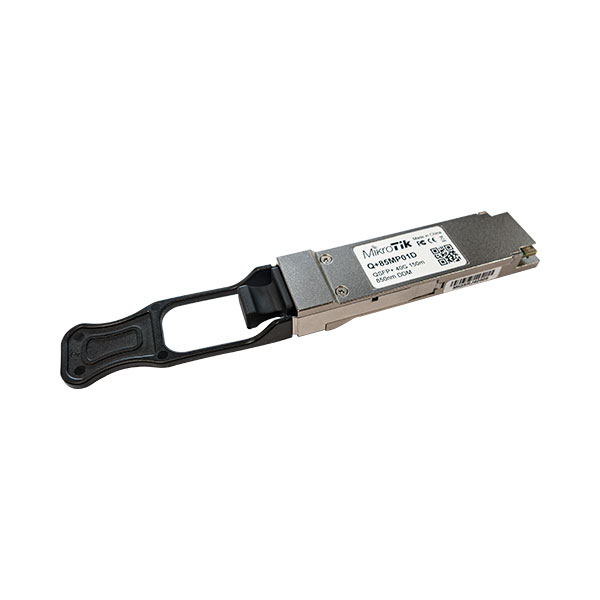

| Number of 40G QSFP+ ports | 2 |
| Peripherals | |
| Serial port | RJ45 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE/RED, EAC, ROHS |
| IP | 20 |
