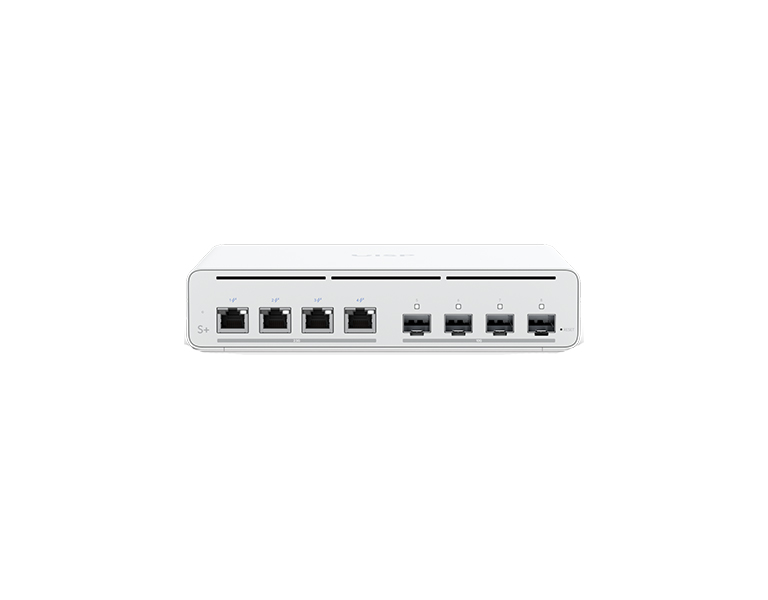

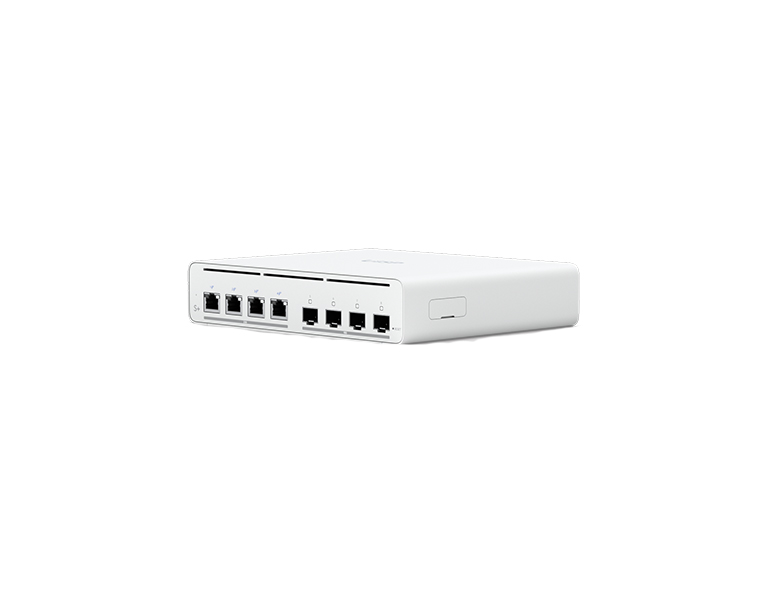

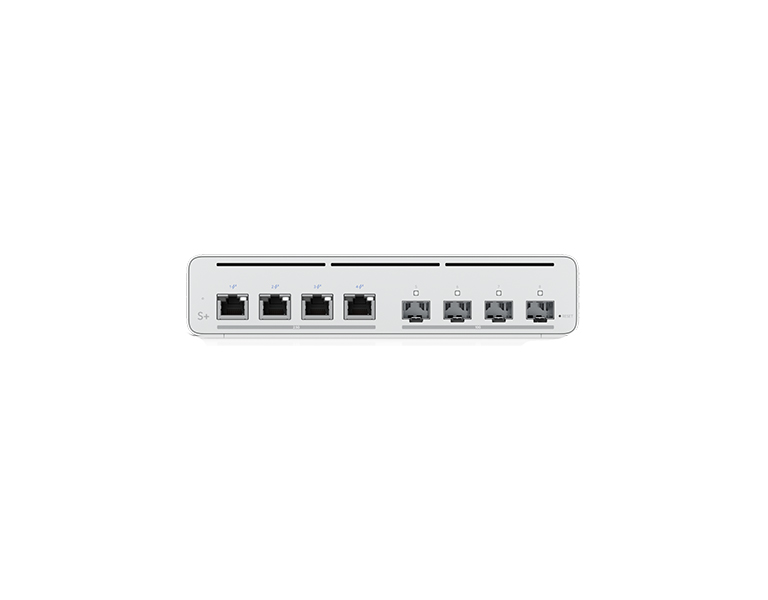

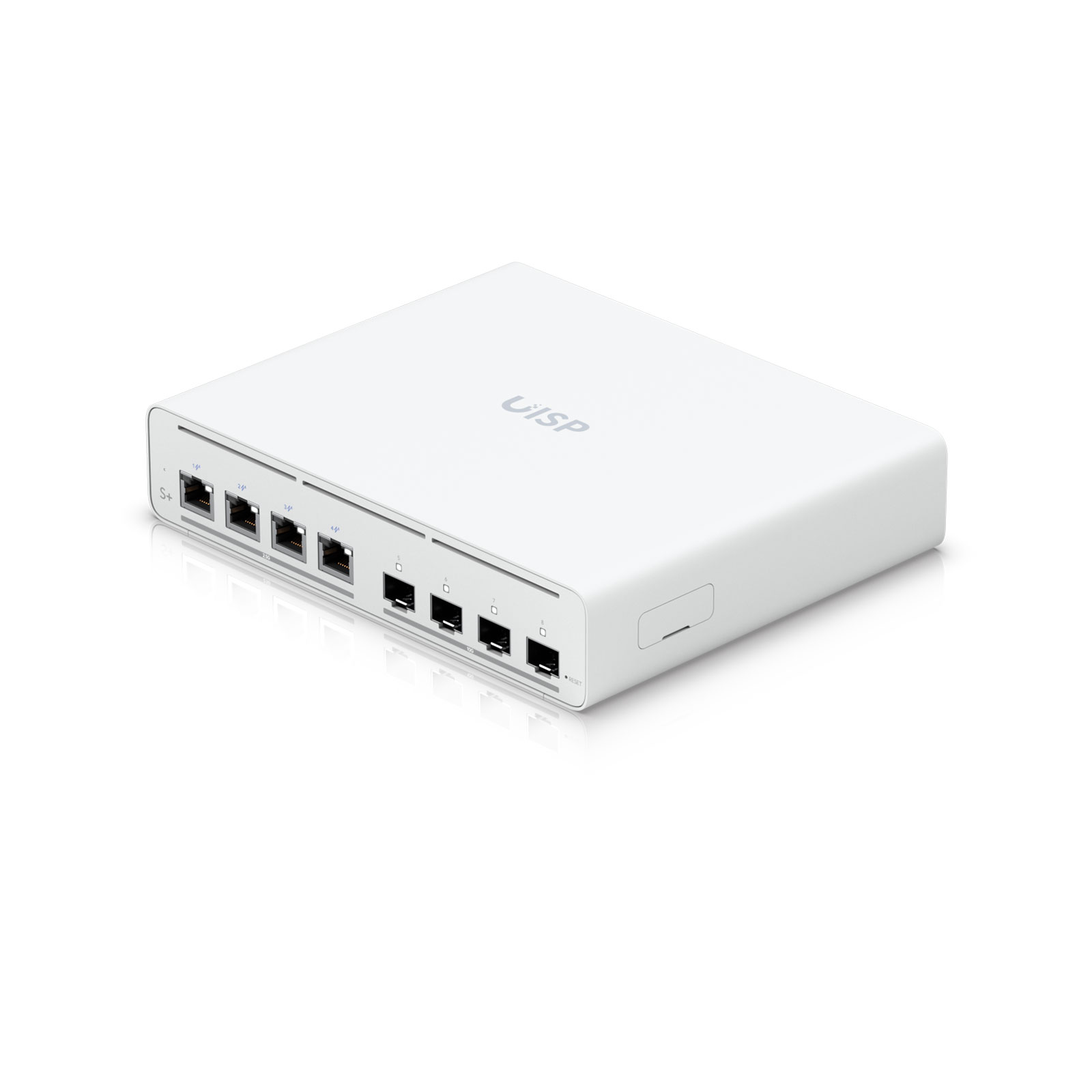

Ubiquiti UISP-S-Plus 2.5 GbE PoE Switch for ISP Applications
UISP-S-Plus is an ideal switch for deployment between ISP providers. It is a L2 PoE switch without fans, with 4x 2.5 Gigabit LAN and 4x SFP/SFP+ ports for additional extension using optical fiber. The UISP Switch is a cost-effective solution for a smaller central node with a smaller number of 2.5 and 10 Gbps devices. With a total 160W PoE budget and a maximum of 40W/port (4-wire pairs) or 20W/port (2-wire pairs), the switch provides considerable power to each connected radio in the PoE ports . Higher reliability is guaranteed by a redundant power supply via Power TransPort or a DC connector with an input voltage of 27V and a current of 7A. Management is handled via web interfaces or centrally via a UISP application that manages all your UISP devices.
Key Features
- (4) 2.5 Gigabit LAN, support for passive 27V PoE and power supply via 2 or 4 pairs of wires
- (4) 1/10Gb SFP+ port
- 160W PoE budget, max. 40W/port (4-wire pairs), max. 20W/port (2-wire pairs)
- Silent operation without a fan
- Port isolation, rate limiting and DHCP snooping features
- Mounting in a 19" rack - the kit is included in the package
- Easy setup using Bluetooth technology via UISP mobile app or web interface
Package contents
- Device
- Power adapter 27V / 7A
- Power cord
- Connecting UISP DC cable
- Rackmount kit + screws
| Specifications | |

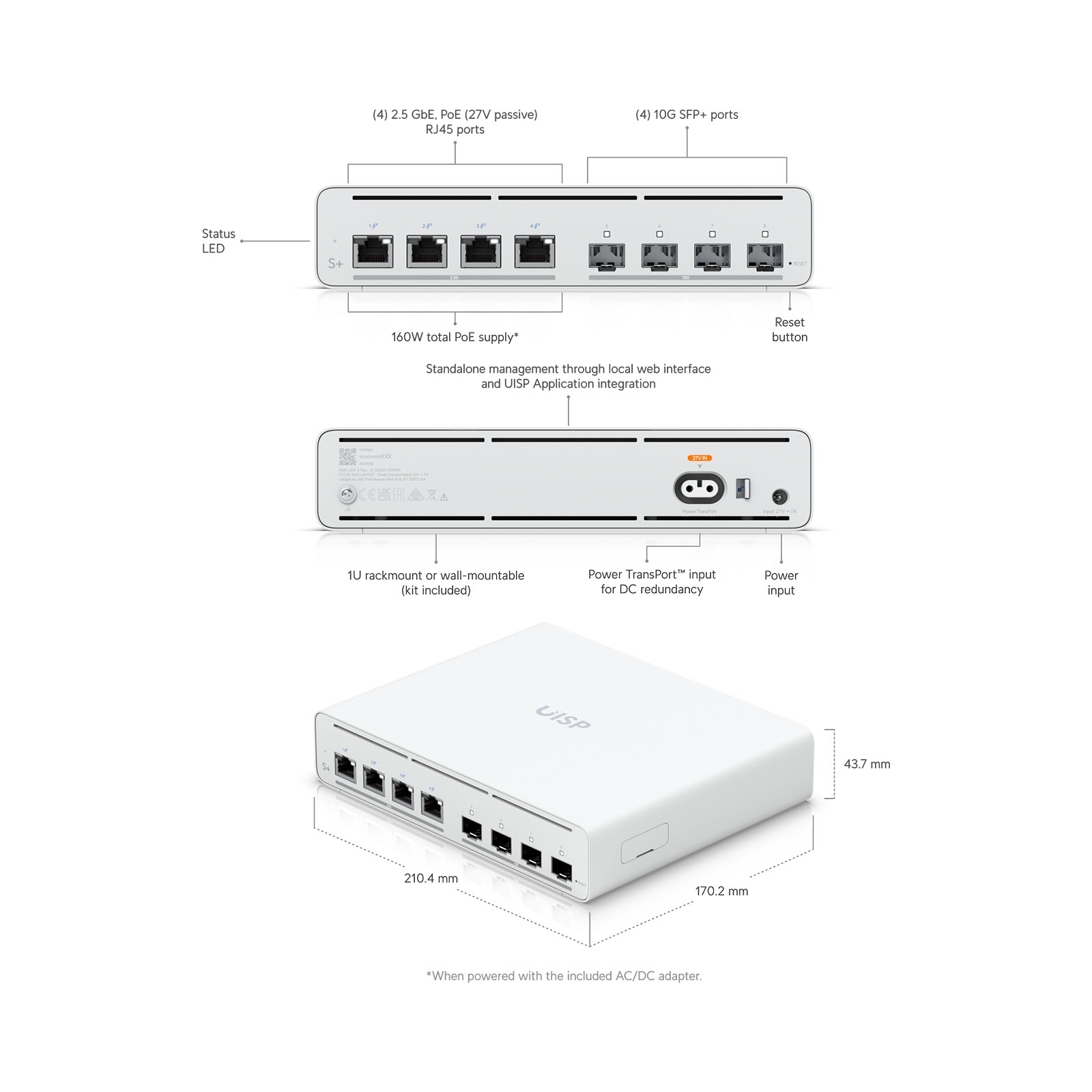

| Dimensions | 210.4 x 170.2 x 43.7 mm |
| Weight | 1.75 kg |
| Enclosure material | SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
| Hardware | |
| Processor | Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz |
| Memory | 1 GB DDR4 |
| Onboard flash storage | 256 MB NAND |

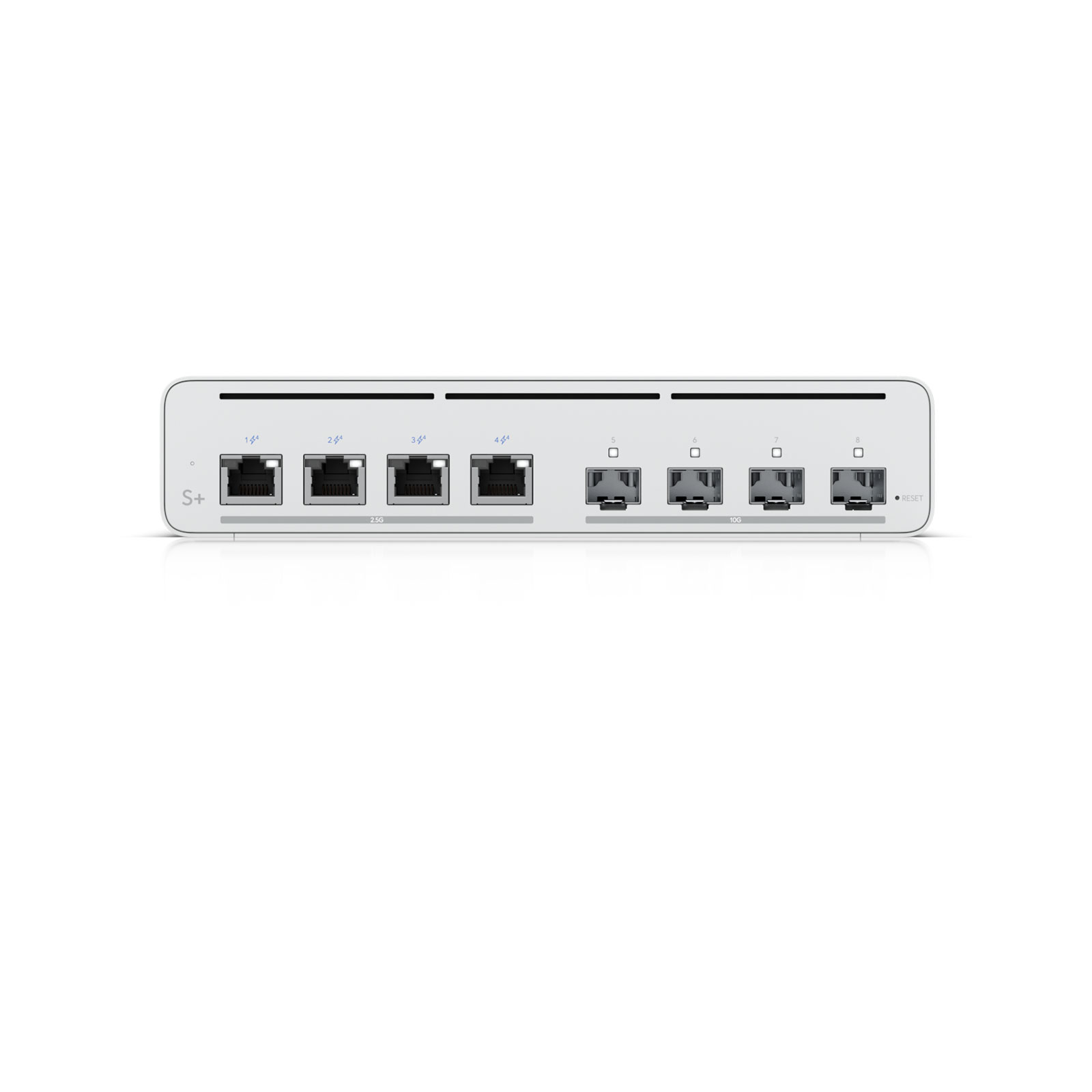

| Networking interface | (4) 1/2.5 GbE RJ45 LAN ports (4) 1/10G SFP+ ports |
| Management interface | Ethernet In-band Bluetooth |
| Total non-blocking throughput | 50 Gbps |
| Switching capacity | 100 Gbps |
| Forwarding rate | 74.4 Mpps |

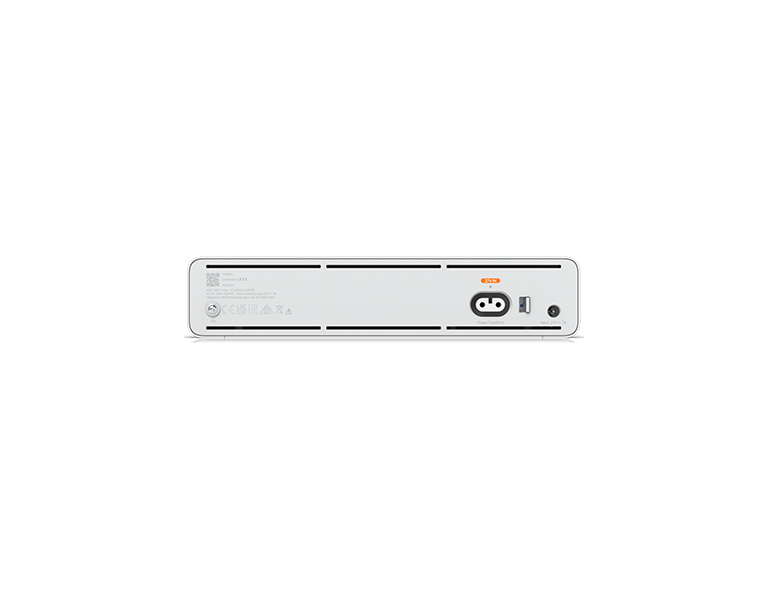

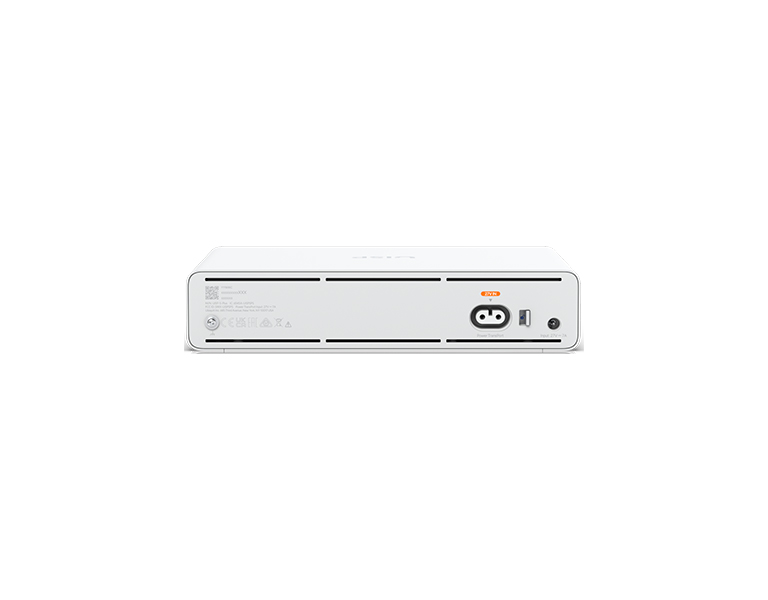

| Power Method | (1) External AC/DC adapter (1) Power TransPort DC input 27V DC, 7.04A |
| Power Supply | 27V DC, 7.04A power adapter (included) |
| Supported voltage range | 24 - 28VDC |
| Max. power consumption | 25W (Excluding PoE output.) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Operating temperature | -10 to 50° C |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE,FCC,IC |
| NDAA Compliant | Yes |
| PoE | |
| PoE interface | (4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4 |
| Total available PoE | 160W (With included power adapter.) |
| Max. passive PoE wattage per port | 2-pair mode: 20W/27V DC 4-pair mode: 40W/27V DC |
| Passive PoE voltage range | 27VDC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE, Speed/Link/Activity |
| SFP data ports | Link/activity |
| Software | |
| Management application | UISP |
