TP-LINK TL-SG3452 V1.2 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
|
• 48× Gigabit RJ45 ports and 4× Gigabit SFP slots |
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*ISP features can only be configured in standalone mode.
| HARDWARE FEATURES | |
| Interface | 48 10/100/1000Mbps RJ45 Ports, 4 Gigabit SFP Slots |
| Console Port | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PERFORMANCE | |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.38 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| PHYSICAL & ENVIRONMENT | |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 34.86 W (220 V/50 Hz) |
| Max Heat Dissipation | 118.94 BTU/hr (220 V/50 Hz) |
| Standby Power Consumption | 11.65 W (220 V/50 Hz) |
| Dimensions(WxDxH) | 440 x 220 x 44 mm |
| Fan Quantity | Fanless |
| Installation | Rack Mountable |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0 °C to 40 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |

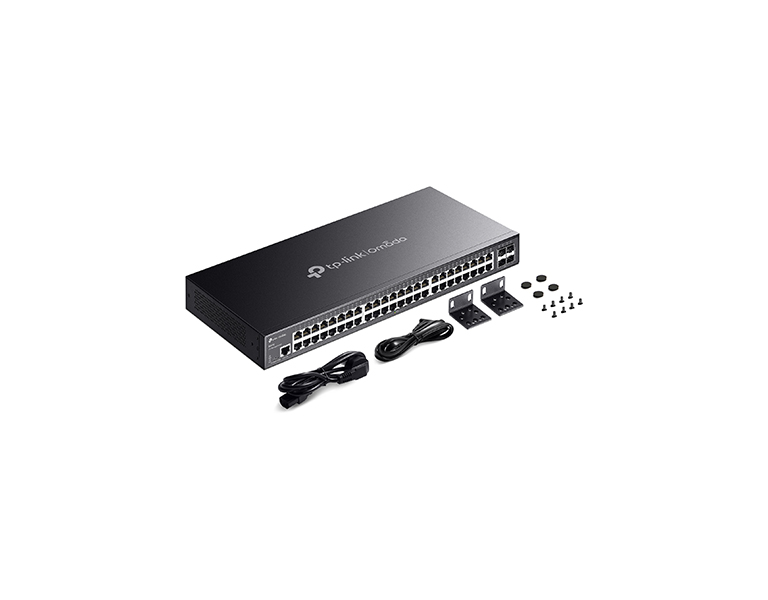

| Package Contents | • TL-SG3452 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
