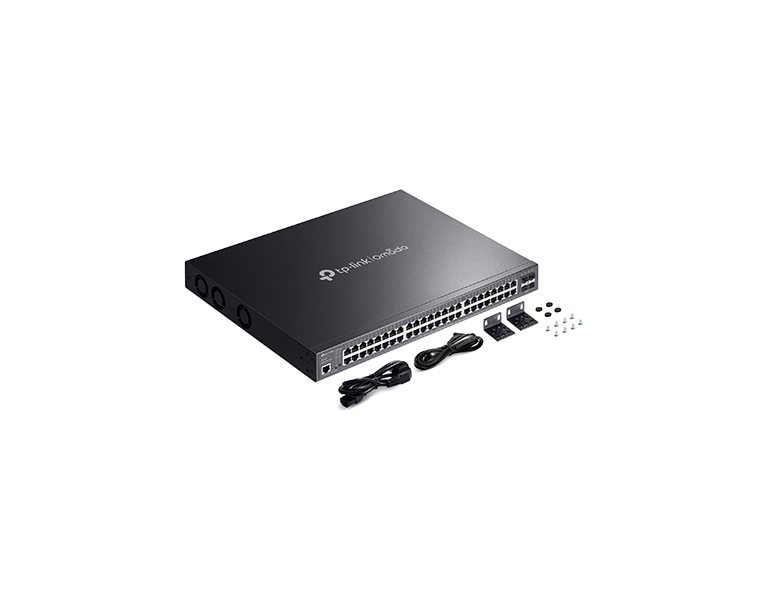

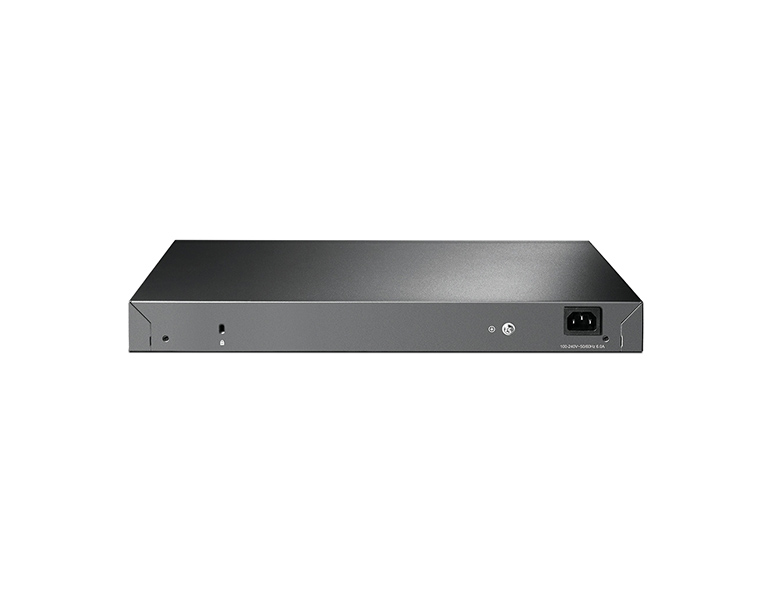

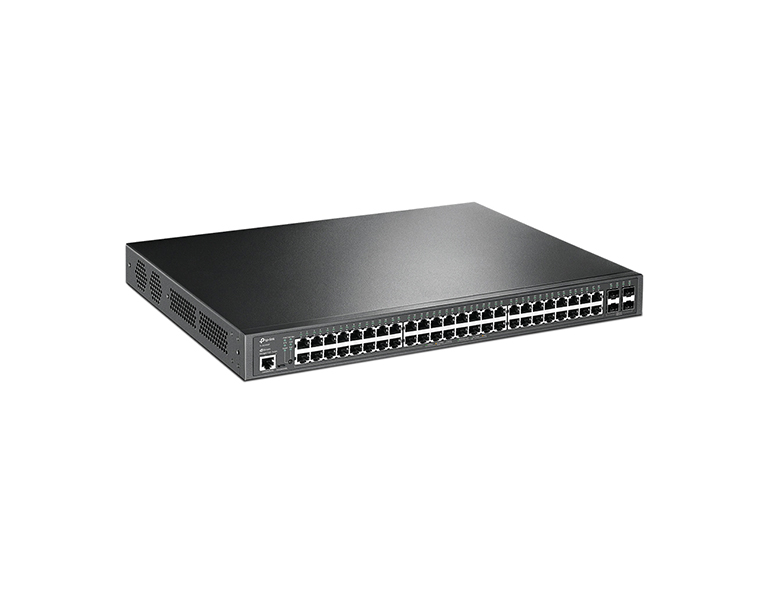

TP-LINK TL-SG3452P V3.3 JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
Κωδικός προϊόντος:
TL-SG3452P
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • 48× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots • 384 W total PoE budget with up to 30 W PoE output per port* • Centralized cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, and IGMP Snooping • ERPS supports rapid protection and recovery in a ring topology • Durable metal casing and rackmountable design |
Multiple Application Scenarios
• Surveillance. (Works with IP Cameras)
• Conference Call. (Works with IP Phones)
• Wi-Fi Coverage. (Works with Access Points)
• Wired Connections. (Works with Non-PoE Devices such as PCs and Printers)
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**ISP features can only be configured in standalone mode.
Χαρακτηριστικά
| General | |
| Interface | 48 10/100/1000Mbps RJ45 Ports,4 Gigabit SFP Slots |
| Console | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet;IEEE 802.3u:100BASE-X Fast Ethernet;IEEE 802.3ab:1000BASE-T Gigabit Ethernet;IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical Fiber) |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 48, up to 30 W |
| PoE Power Budget | 384 W |
| Performance | |
| Switching Capacity | 104 Gbps |
| Packet Forwarding Rate | 77.38 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Physical & Environment | |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 464.2 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation | 1584.08 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| Standby Power Consumption | 27.9 W (110 V/60 Hz) |
| Dimensions (W x D x H) | 440 × 330 × 44 mm |
| Fan Quantity | 3 |
| Installation | Rack Mountable |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
