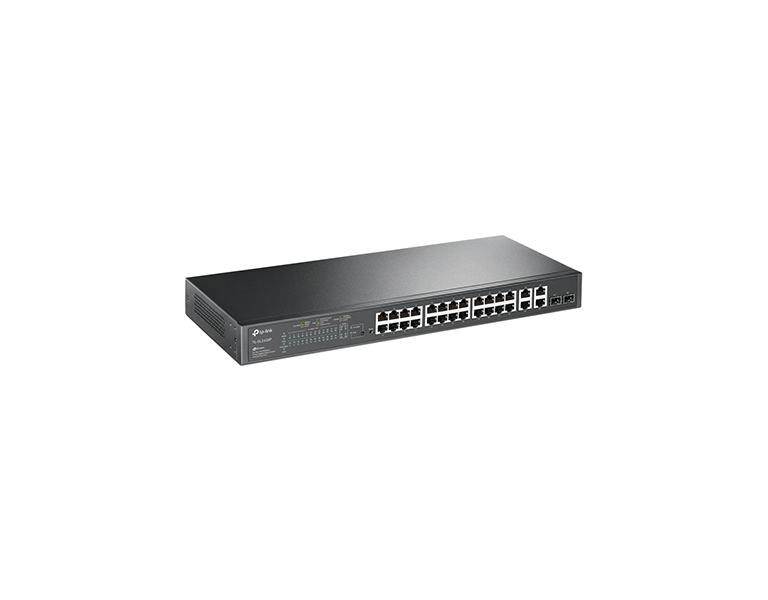

TP-LINK TL-SL2428P V6.2 24-Port Smart Switch with 24-Port PoE+
| • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*. • Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. |
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× 10/100Mbps PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| HARDWARE FEATURES | |
| General | |
| Interface | 24 10/100 Mbps RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Combo Gigabit RJ45/SFP Ports |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 24, up to 30 W |
| PoE Power Budget | 250 W |
| Performance | |
| Switching Capacity | 12.8 Gbps |
| Packet Forwarding Rate | 9.52 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Physical & Environment | |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 291.6 W (110 V/60 Hz) (with 250 W PD connected) |
| Max Heat Dissipation | 995.09 BTU/hr (110 V/60 Hz) (with 250 W PD connected) |
| Standby Power Consumption | 13.2 W (110 V/60 Hz) |
| Installation | Rackmount |
| Dimensions (W × D × H) | 440 mm x 180 mm x 44 mm |
| Fan Quantity | 2 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
