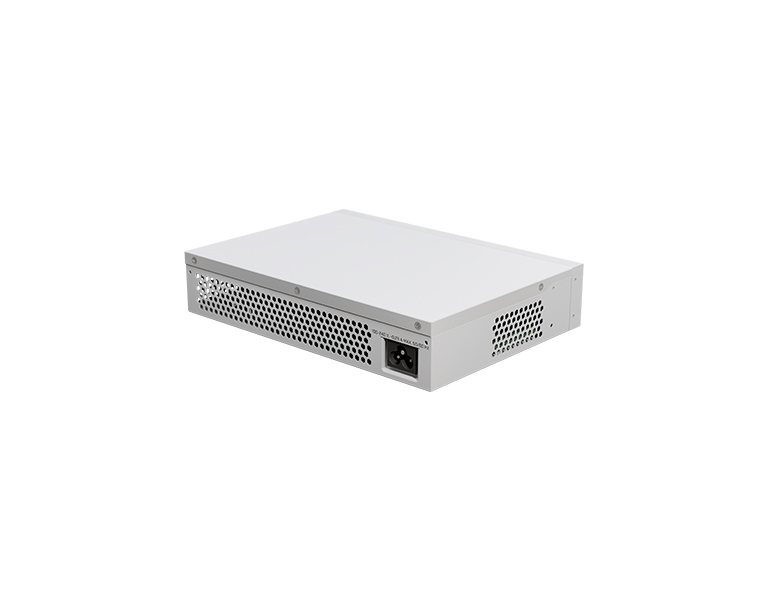

MikroTik CSS318-16G-2S+IN, Cloud Smart Switch
The CSS318-16G-2S+IN is a perfect fit for setups where 24 ports are too many and 8 ports just aren’t enough. Its compact 10-inch form factor and cost-effective design make it the ideal solution for small and medium-sized offices, home networks, or rackmount environments where space and efficiency are key. With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, you get all the connectivity you need without unnecessary bulk. With its versatile mounting options, the CSS318-16G-2S+ can be installed in 10-inch racks, standard 19-inch racks, or even side-by-side—fitting two switches in a single 1U 19-inch space.
Configuration is effortless with MikroTik’s lightweight SwOS. Accessible directly from your web browser, SwOS gives you the core functionality of a managed switch and more:
• Port-to-port forwarding
• Broadcast storm control
• MAC filtering
• VLAN configuration
• Traffic mirroring
• Bandwidth limitation
• Adjustment of MAC and IP header fields
| Specifications | |
| Product code | CSS318-16G-2S+IN |
| Switch chip model | 98DX2518 |
| Operating System | SwOS |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 |
| AC input range | 100-240 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 13 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| Ethernet | |
| 10/100/1000 Ethernet ports | 16 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |

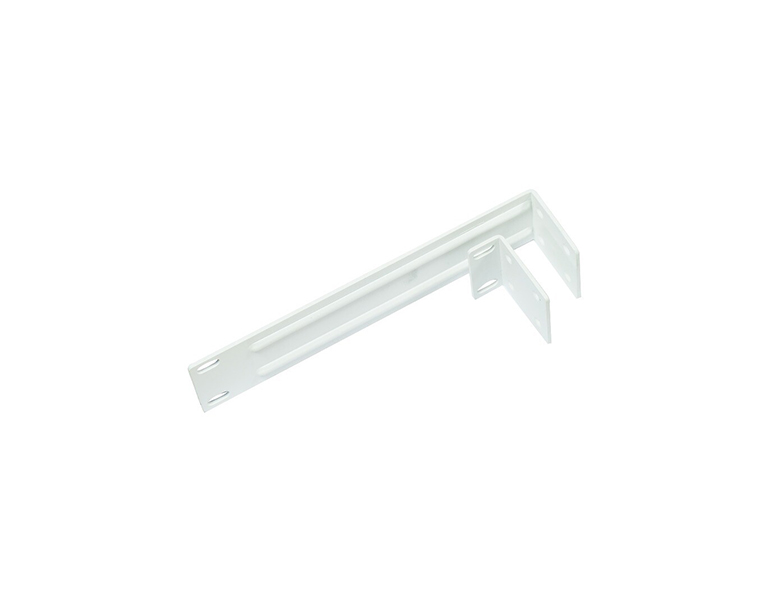

| Included Parts | • Power cord • Fastening set • Rack ears |
