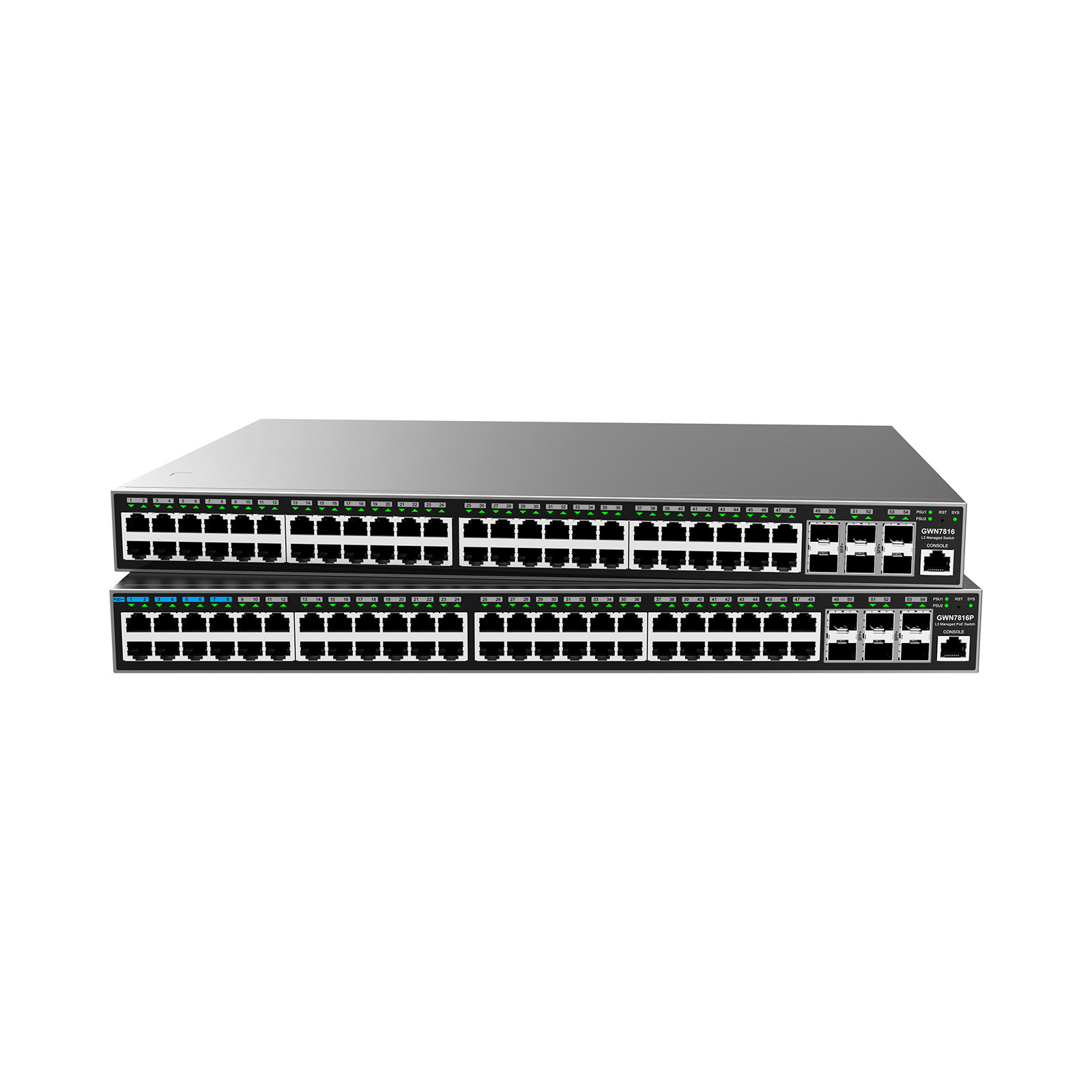

Grandstream GWN7816P 48-Port Gigabit L3 Managed Switch

Κωδικός προϊόντος:
GWN7816P
909,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
733,06 €
14 Ημέρες

Grandstream GWN7816P 48-Port Gigabit L3 Managed Switch

Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
36 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

The GWN7816(P) are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7816P provids smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7816(P) can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With an advanced set of features, comprehensive security protection, and flexible management options, the GWN7816(P) is ideal for enterprises and medium-to-large businesses who require high-performance networks with maximum capacity and control.

Features:

• 48 Gigabit Ethernet ports and 6 10Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+, PoE++ (GWN7816P) power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform, CLI management
• Built-in QoS allows for prioritization of network traffic
• Supports stacking (pending) for easy management on one interface while creating redundant backup between multiple devices

Χαρακτηριστικά
Specifications
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p,
IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
PoE Standards IEEE 802.3af/at/bt
Gigabit Ports 48
SFP+ Ports 6
Note: Support DAC cable, and must be ≤ 5m
Maximum no. of Supported Modules SM-10G: 6
MM-10G: 6
RJ45-10G: 3
Note: RJ45-10G modules must be interval inserted
Console 1
# of PoE Ports 48
PSUs 1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately)
Maximum Output Power Per PoE Port 60W(1-8,PoE++)
30W(9-48)
Max Total PoE Output Power 740W with 1 PSU
PoE Standards IEEE 802.3af/at/bt
Surge Protection ± 4KV CM and ± 2KV DM for power
± 4KV CM for network ports
ESD ± 12KV for contact discharge
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 108Gbps
Switching Capability 216Gbps
Forwarding Rate 160.704Mpps
Packet Buffer 16Mb
Network Latency <4µs
Switching • 32K MAC addresses, including static, dynamic and filtering MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP(pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)
Routing • Static routing
• Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, BGP
• Policy routing
Multicast • IGMP Snooping with IGMPv2 and IGMPv3
• MLD Snooping with MLDv1 and MLDv2
• MVR(pending)
QoS/ACL • Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6
DHCP DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance CPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore,
syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(pending) and copper test
Security • User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support
Mounting Desktop, or Rail-Mount
(rack-mounting kits included)
LEDs 1x tri-color LED for device tracking and status indication
2x bi-color LEDs for per power supply PSU1/2
54x green-color LEDs for data transferring
Fan 4
Environmental Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
Dimensions 440mm(L)x380mm(W)x44mm(H)
Unit Weight 6 Kg
Package Content • Switch
• 1x 1.2m(10A) AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 1x Power Cord Anti-Trip
• 2x Front Rack-Mounting Kits
• 2x Rear Rack-Mounting Kits
• 2x Rear Slideways
• 16x Screws(KM 3*6)
• 1x Quick Installation Guide
Hot-Swappable PSU Available for Separate Purchase
Compliance FCC, CE, RCM, IC, UKCA
