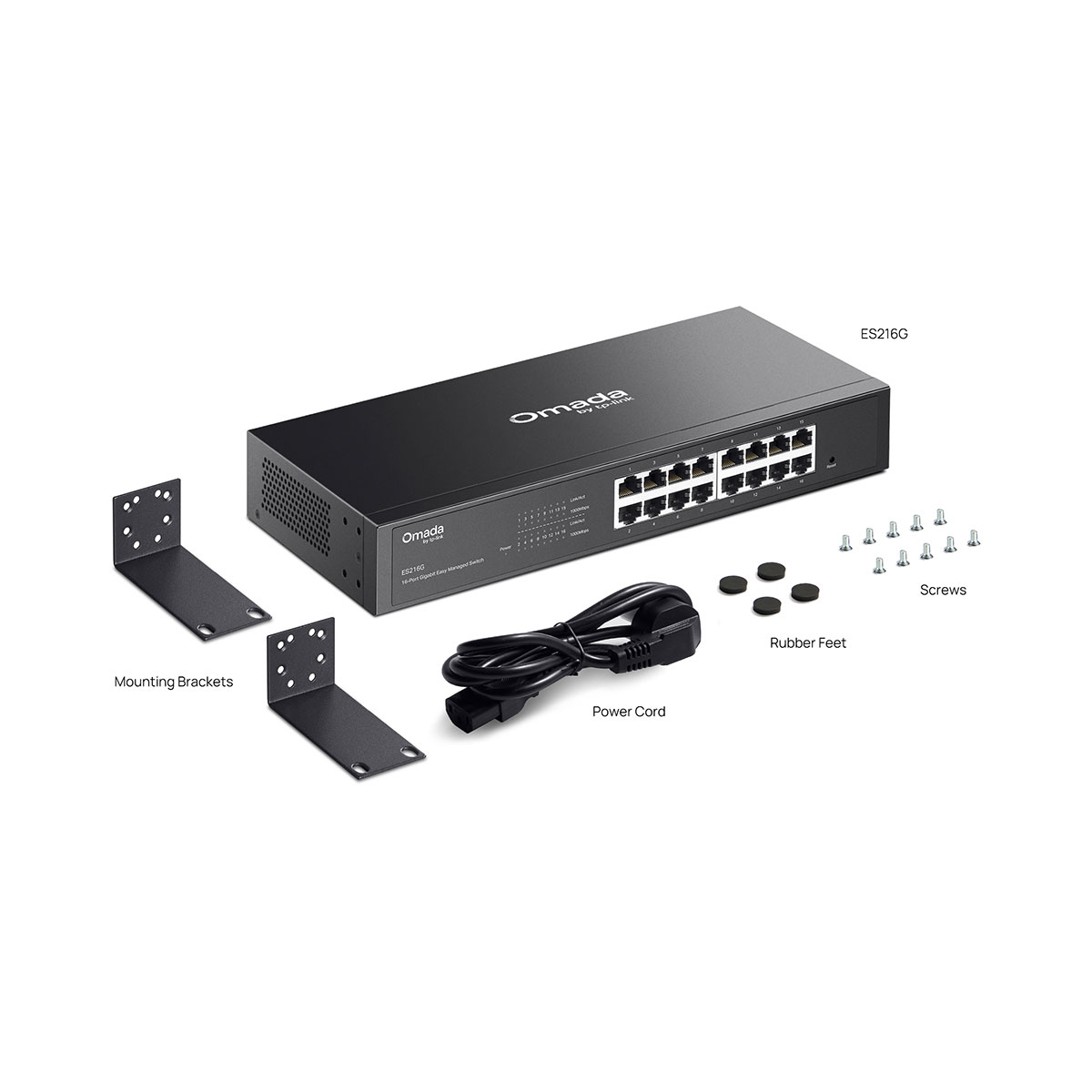

TP-LINK ES216G V1.2 Omada 16-Port Gigabit Easy Managed Switch
Κωδικός προϊόντος:
ES216G
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

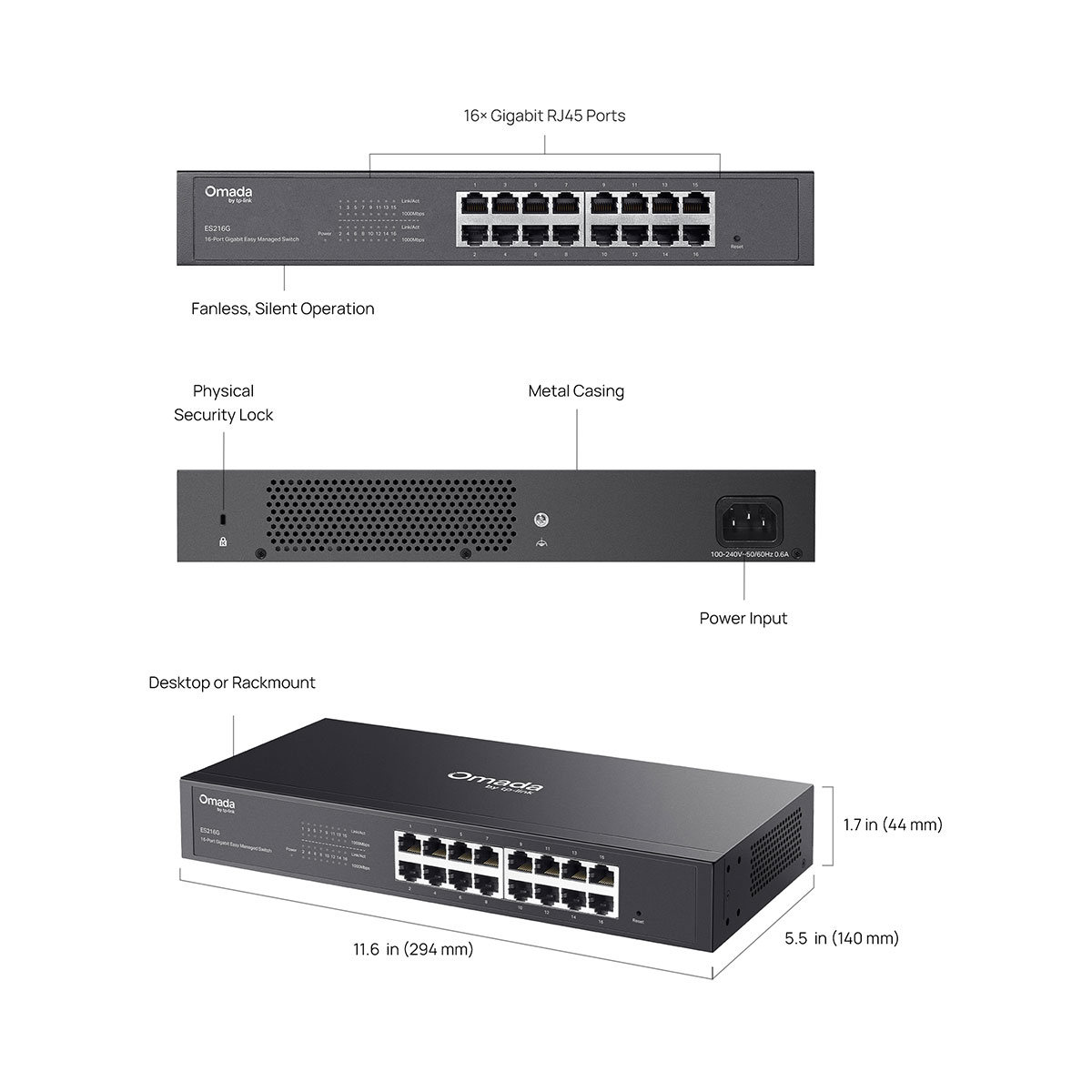

| • 16× 10/100/1000Mbps RJ45 ports • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • VLAN, Port Isolation, Cable Test, QoS△ for reliable surveillance networking • Automatic Loop Prevention and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/rack mounting design |
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode. VLAN QoS is supported under Controller Mode.
Χαρακτηριστικά
| Hardware Features & Performance | |
| General | |
| Interface | 16 × 10/100/1000 Mbps RJ45 Ports |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| Performance | |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Physical & Environment | |
| Power Supply | 100-240V ~ 50/60Hz |
| Standby Power Consumption | 4.2 W (110V/60 Hz) |
| Max Power Consumption | 8.4 W (110V/60Hz) |
| Max Heat Dissipation | 28.52 BTU/hr (110 V/60 Hz) |
| MTBF | 2131140h @ 25°C |
| Dimensions (W x D x H) |
294 × 140 × 44 mm |
| Net Weight | 1.14 kg |
| Fan Quantity | Fanless |
| Installation | Desktop / Rack Mounting |
| Operating Temperature | -5 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet Ports |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
