MaxLink PSBT-10-8P-250 PoE switch, 10x LAN/8x PoE 250m, 802.3af/at/bt

Κωδικός προϊόντος:
PSBT-10-8P-250
49,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
39,52 €
Άμεσα διαθέσιμο
MaxLink PSBT-10-8P-250 PoE switch, 10x LAN/8x PoE 250m, 802.3af/at/bt
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Προσθήκη στο καλάθι
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
24 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

MaxLink PSBT-10-8P-250 is 10 port 10/100Mbps unmanaged switch with 8 PoE ports. Switch automatically detecting and powering 802.3af/at (up to 30W/port) devices on 1 - 8 ports. 9th and 10th ports are normal ethernet ports without PoE functionality as uplink ports. Total PoE budget for devices is 120W with external power source.

Port 1 additionally supports standard 802.3bt, so you can power your device with up to 60W!
Manual mode switch
1. Normal "N": The switch supplies the device at a distance of no more than 100m. The port-to-port throughput is 10/100Mbps.
2. VLAN: Ports are logically separated from one another, preventing unwanted broadcast storms in this mode. The switch supplies power to the device up to 100m and the portability to the port is 10/100Mbps.
3. 250m: Long Range Mode. Switch powering devices up to 250m with a reduced 10Mbps throughput per port.

With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af/at PoE standard.



Χαρακτηριστικά
Specifications
Network Port 7x 10/100Mbps PoE RJ45 port (port 2~port 8) 802.3af/at
1x 10/100Mbps PoE RJ45 port (port 1) 802.3af/at/bt
2x 10/100Mbps Non-POE RJ45 port (port 7, 8)
Transfer Rate 100Mbps full Duplex, 10 or 100Mbps Half Duplex
Network interface: 10BASE-T or 100BASE-TX Ethernet RJ-45
Performance network delay (100 to 100Mbps): maximum 20 μs (using 64 byte packet)
MAC address capacity: 4K
Frames filter and transfer rate:
10M port maximum 14,800pps
100M port maximum 148,800pps
Network protocol and standard IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet
POE pin 1/2(+), 3/6(-);
LEDs indicator Power - PWR
Link/PoE
250M/VLAN
Power Total power: 120W (All PoE port, port 1~port 8) single port max. 30W, (port 1 up to 60W)
Input power: 120W; 52V @ 2.5A DC output power
Dimensions(LxWxH) 210mm x 75mm x 28mm
Environment Operating Temperature: 0°~40°C
Storage Temperature: -30℃~70℃
Working Humidity: 10%~90% (Non-condensing)
Storage Temperature: 5%~90% (Non-condensing)
EMC CE Class B
FCC Part 15, Class B
VCCI Class B, RoHS
Package contents Device

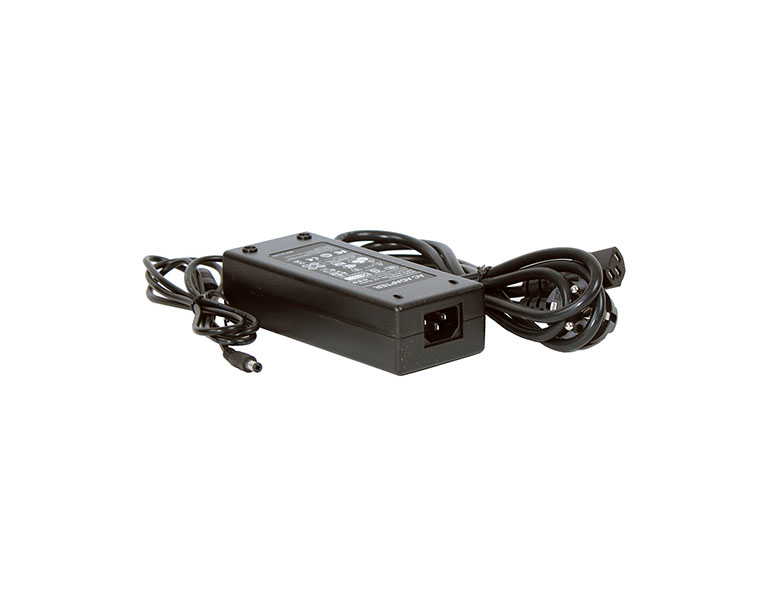

Power adapter 52V/2.5A
Power cord
