Περιγραφή

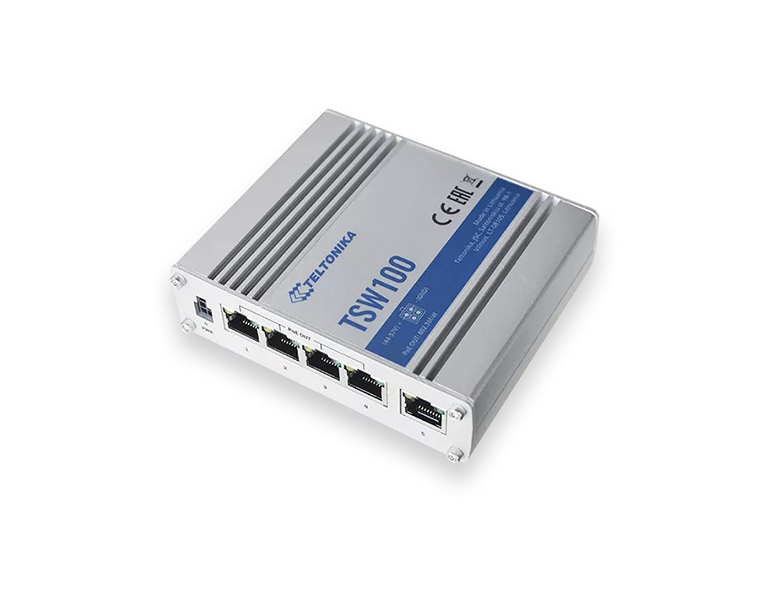

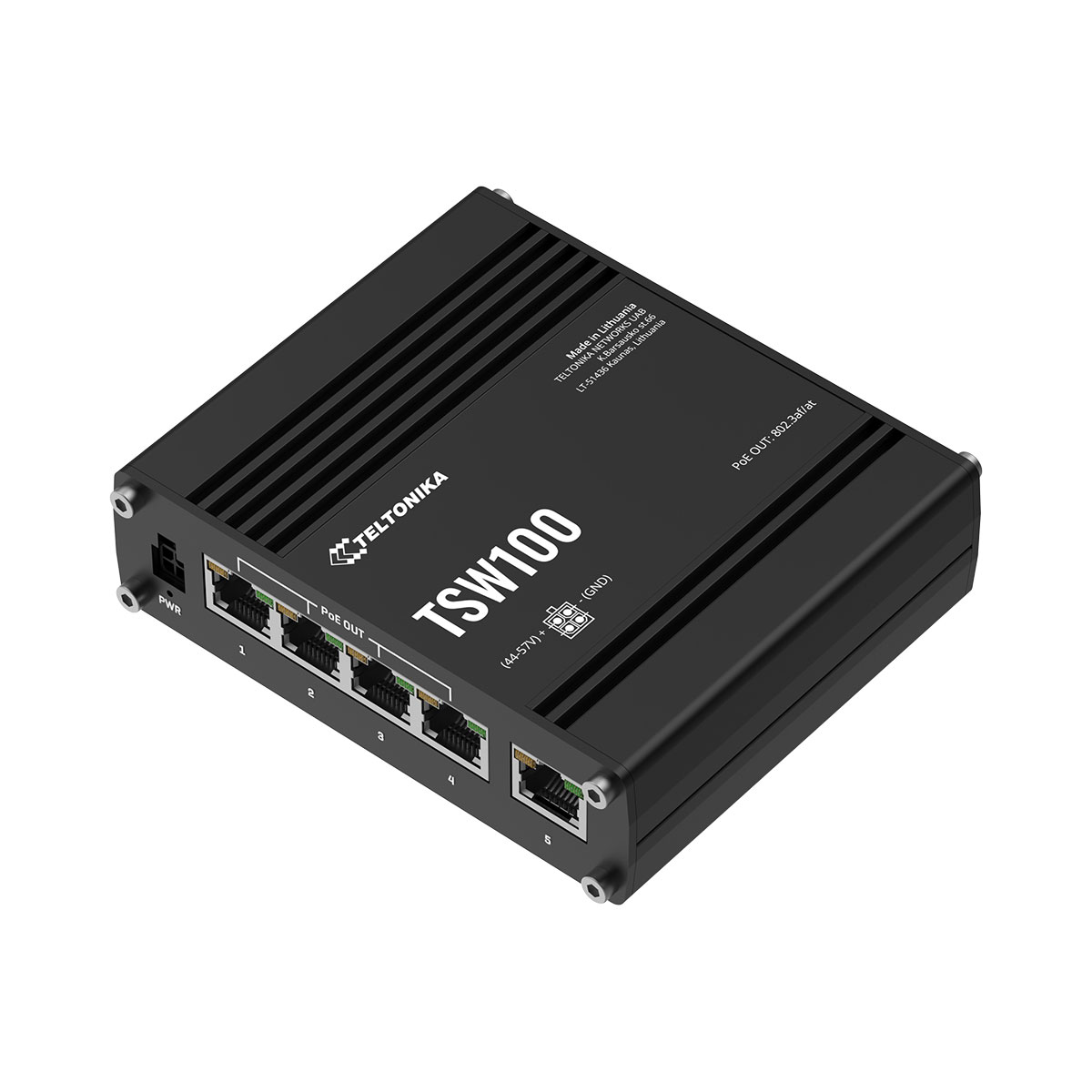

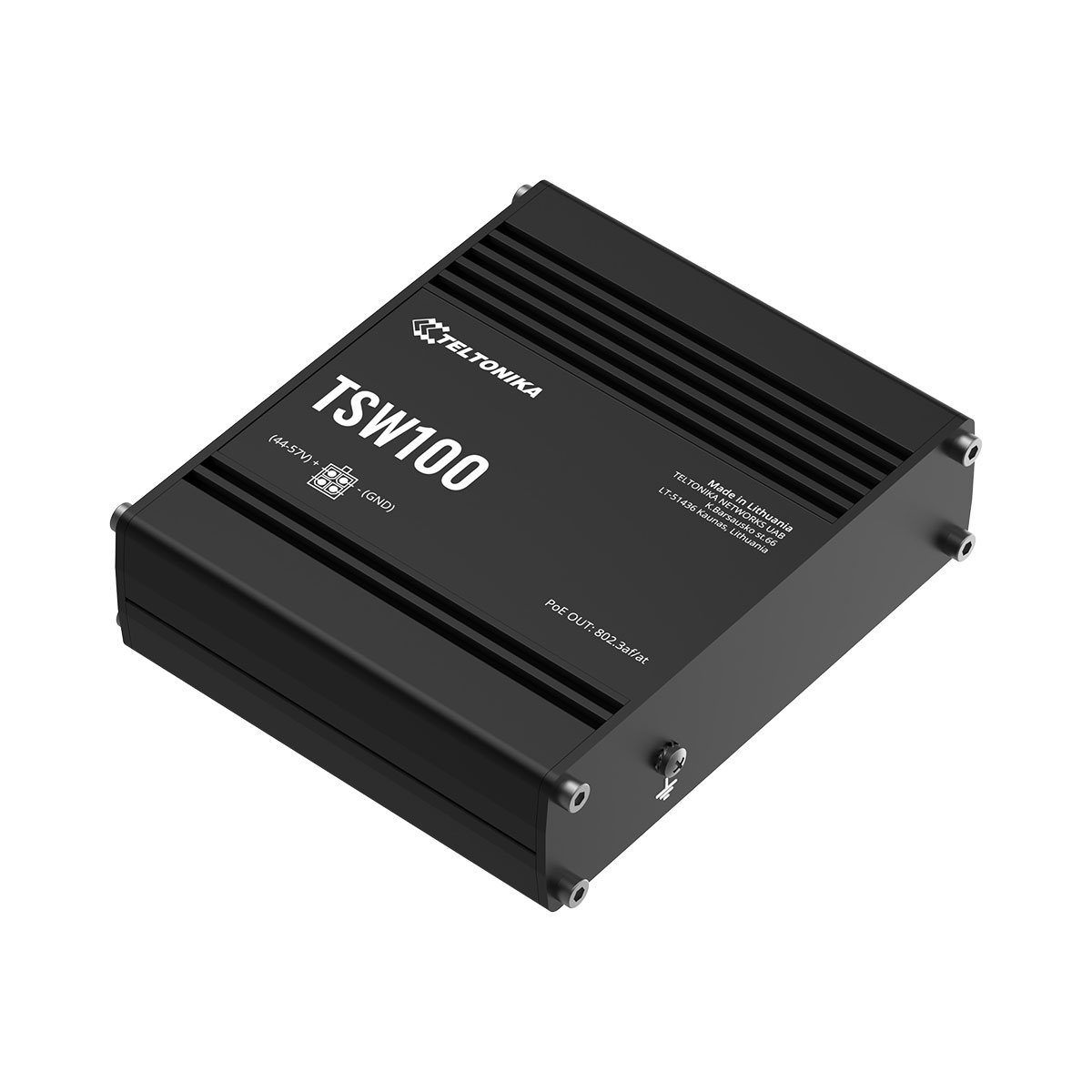

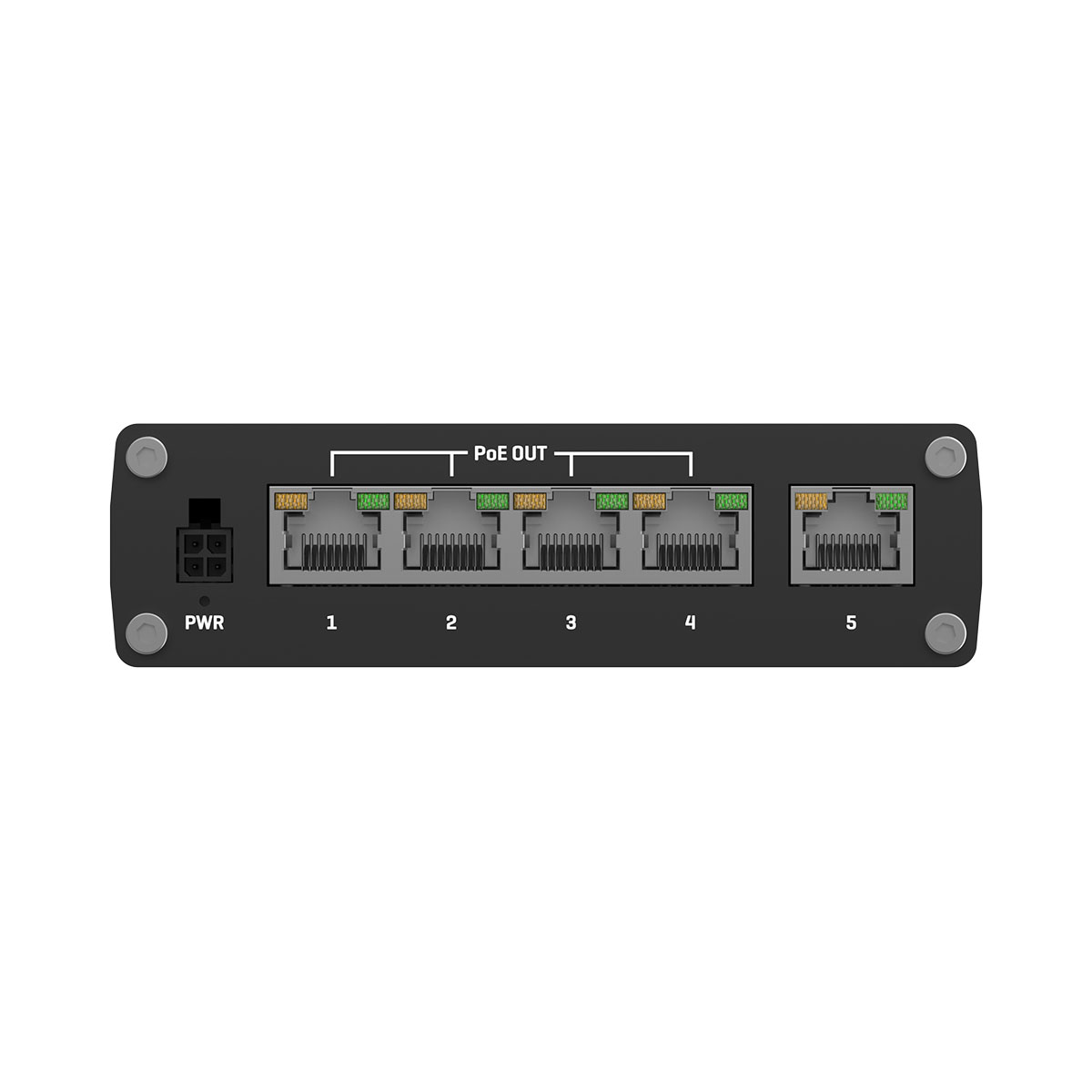

• TSW100 is the first industrial unmanaged switch from Teltonika Networks.
• Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
• Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
• It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
• Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Powering option | 4pin power socket, 7-58 VDC |
| Power consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W |
| PoE standart | 802.3af/at (max 30 W per port, total power budget 120W) |
| Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE Out, 1 x ETH |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |

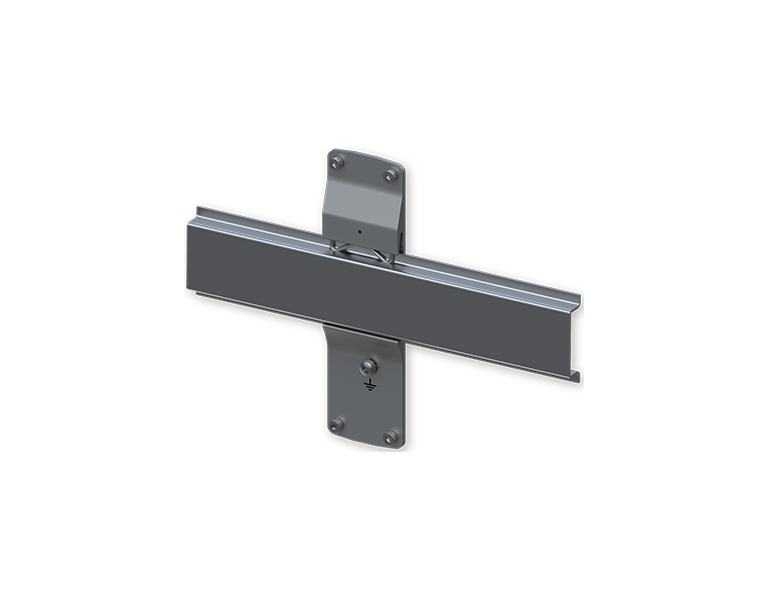

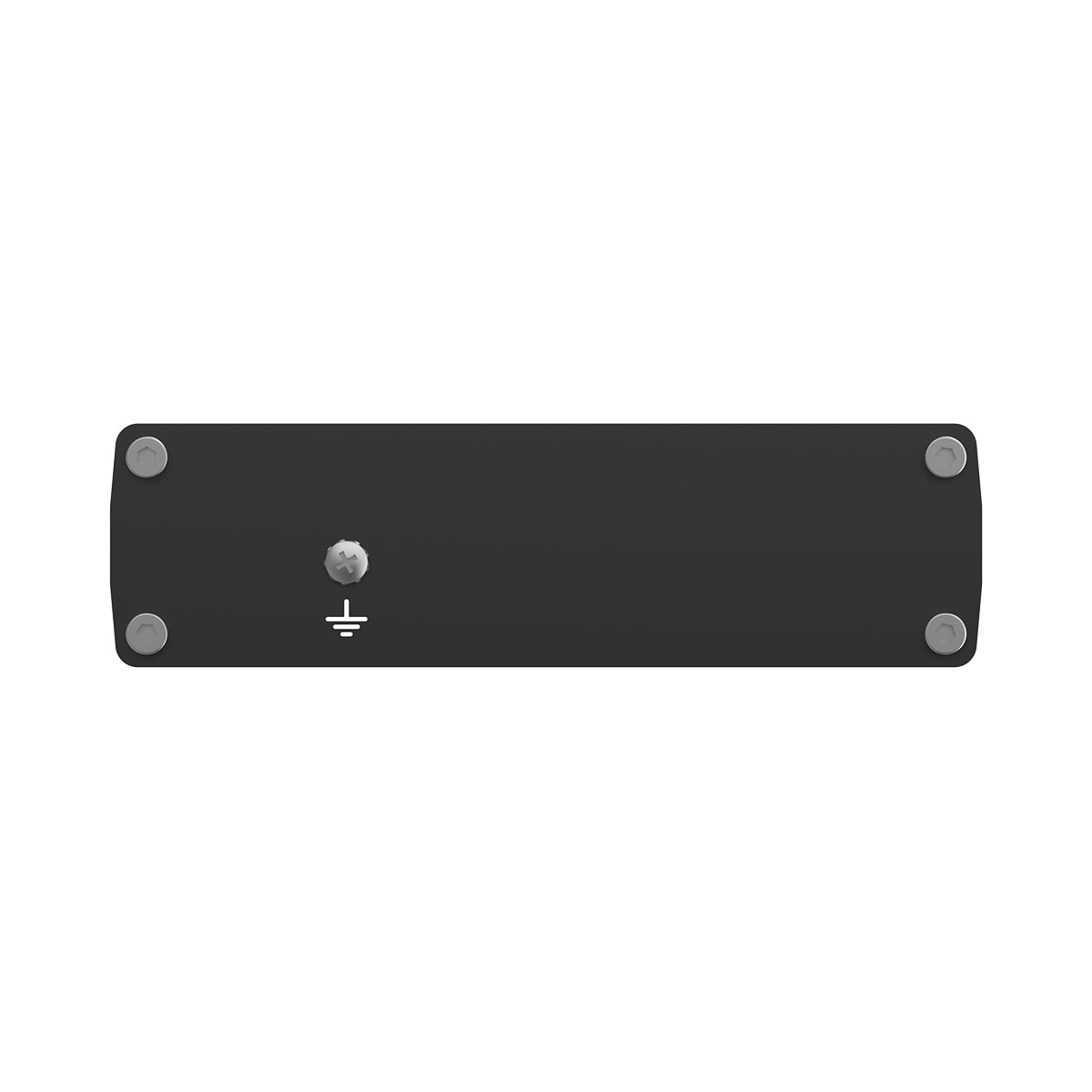

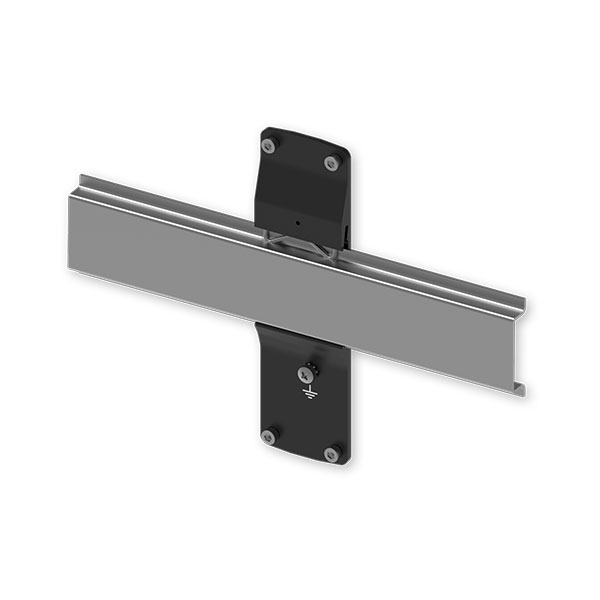

| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 350 g |
| Performance | |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |

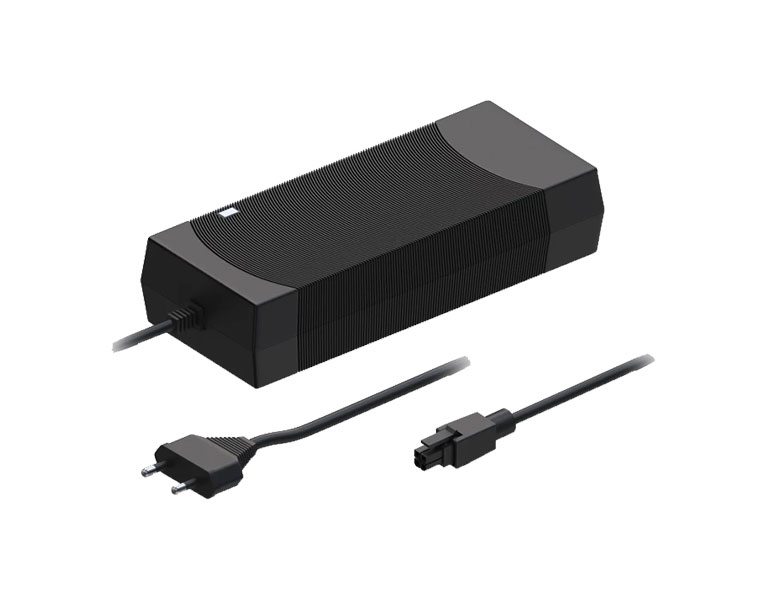

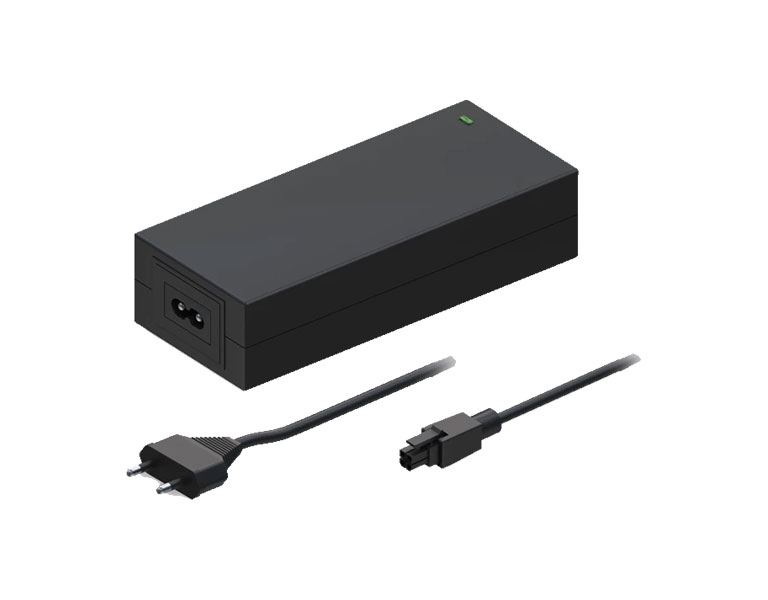

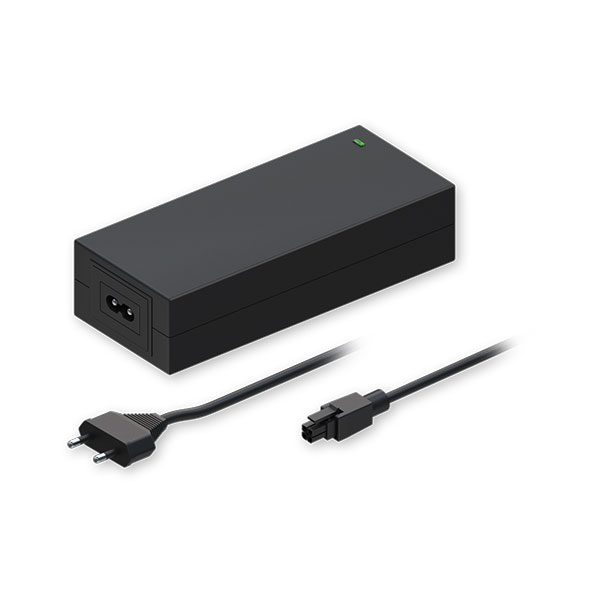

| Standard Package Contains | • TSW100 • 62 W PSU • QSG (Quick Start Guide) • Packaging box |

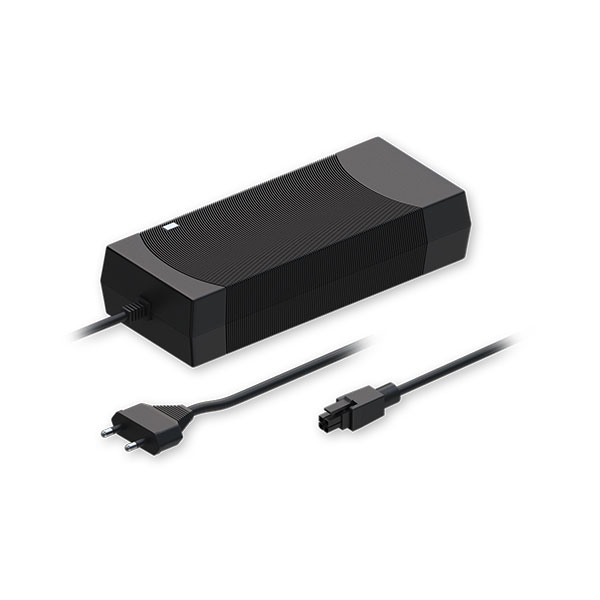

*Provided power supply only allows 60 W PoE power budget at PSE, to reach maximum 120 W at PSE >130 W power PSU must be used.
