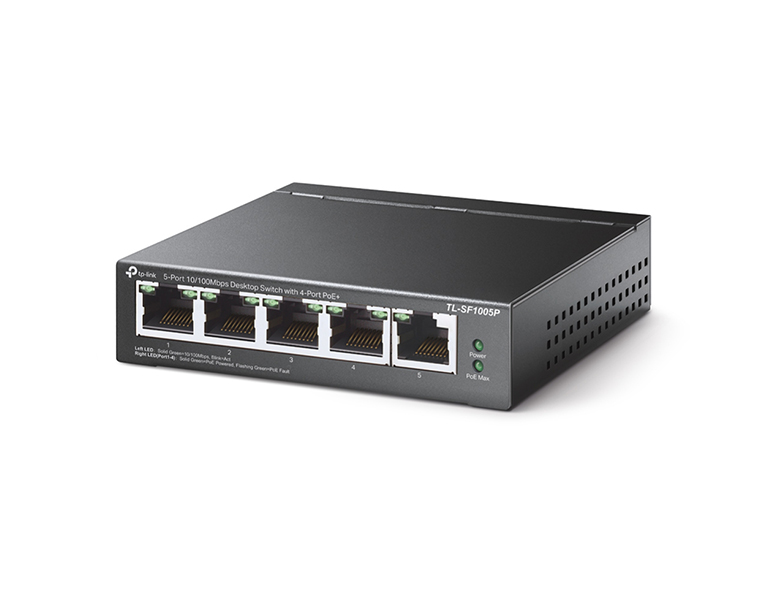

TP-LINK TL-SF1005P V5 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
| • 4x PoE+ ports transfer data and power on individual cables • 5× 10/100 Mbps RJ45 ports • Works with IEEE 802.3af/at compliant PDs • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 67 W for all PoE ports* • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Plug and play with no configuration required |
Overview
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
Four of the 5 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 67W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 67 W. If port 1, 2 and 4 are consuming 15.4 W respectively, and an additional PoE device with 21 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode**.
• Priority Mode ensures high priority of port 1–2 to guarantee the quality of sensitive application.
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Easy of Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE+ is an ideal choice for expanding your network.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
| HARDWARE FEATURES | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Interface | 6*10/100 Mbps RJ45 Ports with 4 PoE+ Ports(Port 1 to Port 4) AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port1-Port4 Power Supply: 67 W |
| Transmission Method | Store-And-Forward |

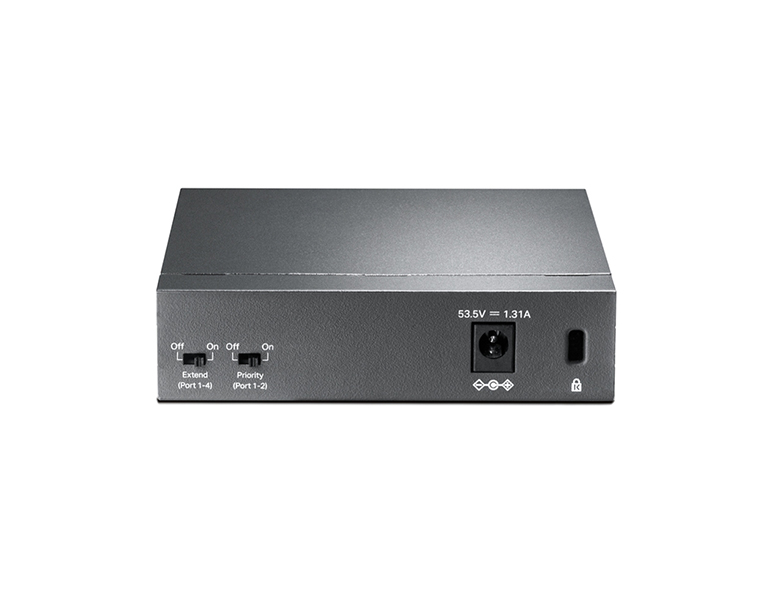

| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Switch Capacity | 1.2 Gbps |
| Mac Address Table | 2K |
| Dimensions(WxDxH) | 99.8 x 98 x 25 mm |
| Fan Quantity | Fanless |
| LED | Power, Link/Act, PoE Status, PoE Max |
| Extend Mode | Yes |
| Priority Mode | Yes |
| PoE Auto Recovery | YES (For Ports 1-4) |
| Max Power Consumption | 3.19 W (220V/50Hz. no PD connected) 75.08 W (220V/50Hz. with 67 W PD connected) |
| Max Heat Dissipation | 10.88 BTU/h (no PD connected) 256.02 BTU/h (with 67 W PD connected) |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1005P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% RH, non-condensing Storage Humidity: 5%~90% RH, non-condensing |
