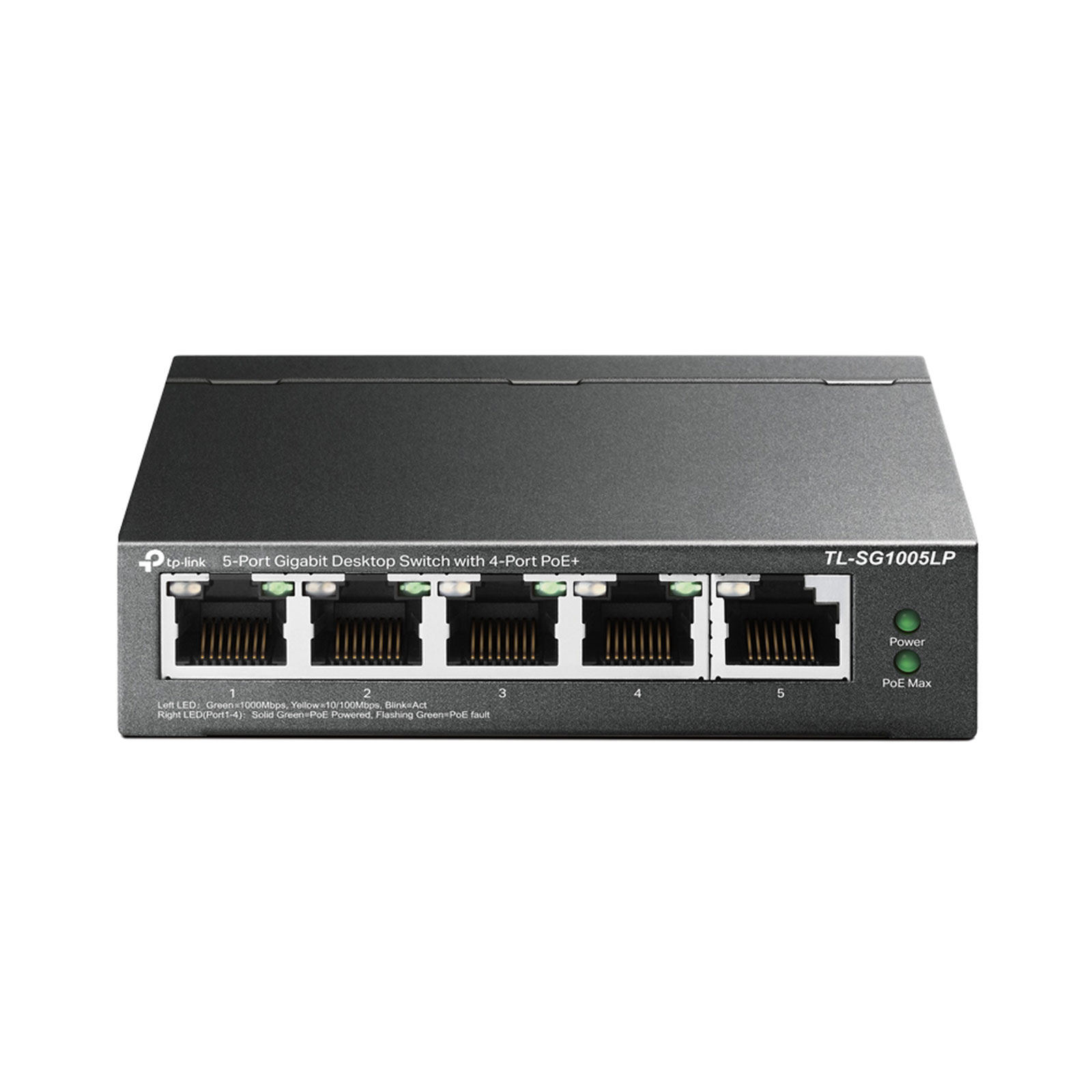

TP-LINK TL-SG1005LP V4 5-Port Gigabit Desktop Switch with 4-Port PoE+
| • 4× gigabit PoE+ ports with up to 30 W PoE output per port* • 40 W total PoE budget* • Up to 250m data and power transmitting range under Extend Mode** • Automatically reboots your dropped or unresponsive PoE-powered devices. • Simply plug and play for instant connectivity with no configuration required. •Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. • Desktop / Wall-mounting |
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices. TL-SG1005LP
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play, No Configuration Required
1)Plug in
2)Connect Devices
3)Enjoy
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
| SPECIFICATIONS | |

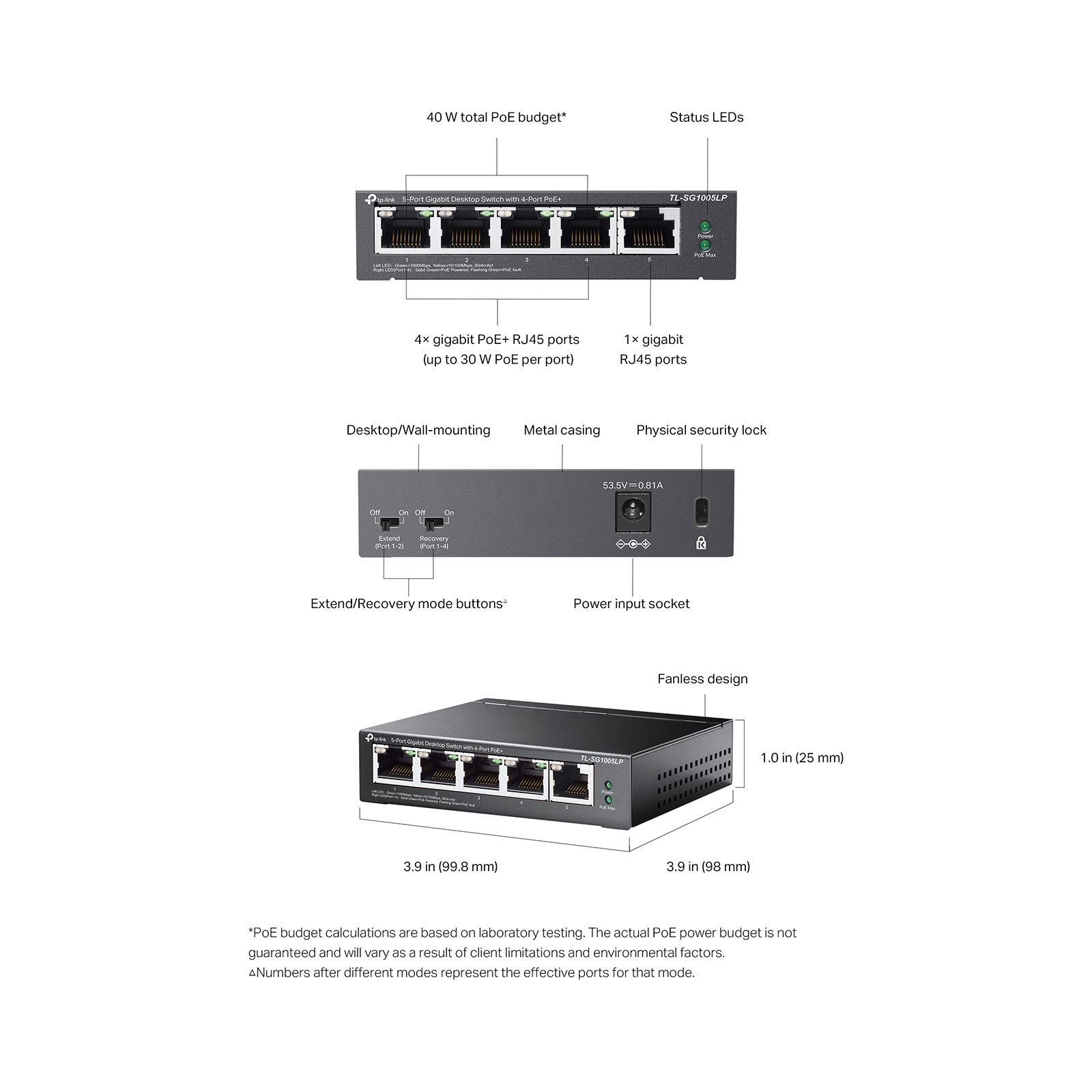

| Interface | • 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) • AUTO Negotiation/AUTO MDI/MDIX |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) • 1000BASE-T: UTP category 5e or above cable (maximum 100m) |
| PoE Ports (RJ45) | PoE Standard: 802.3 af/at PoE Ports: 1-4, up to 30 W per port PoE Power Budget: 40 W |
| Mac Address Table | 2K |
| Switching Capacity | 10 Gbps |
| Packet Buffer Capacity | 1 Mbit |
| Max Power Consumption | 46.9 W |
| Max Heat Dissipation | 159.46 BTU/h |
| Transmission Method | Store-And-Forward |
| Packet Forwarding Rate | 7.44 Mbps |
| Jumbo Frame | 9 KB |
| MTBF | 611257 hours @ 25° C |
| Extend Mode | For Ports 1-2 |
| PoE Auto Recovery | For Ports 1-4 |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Certification | FCC, CE |

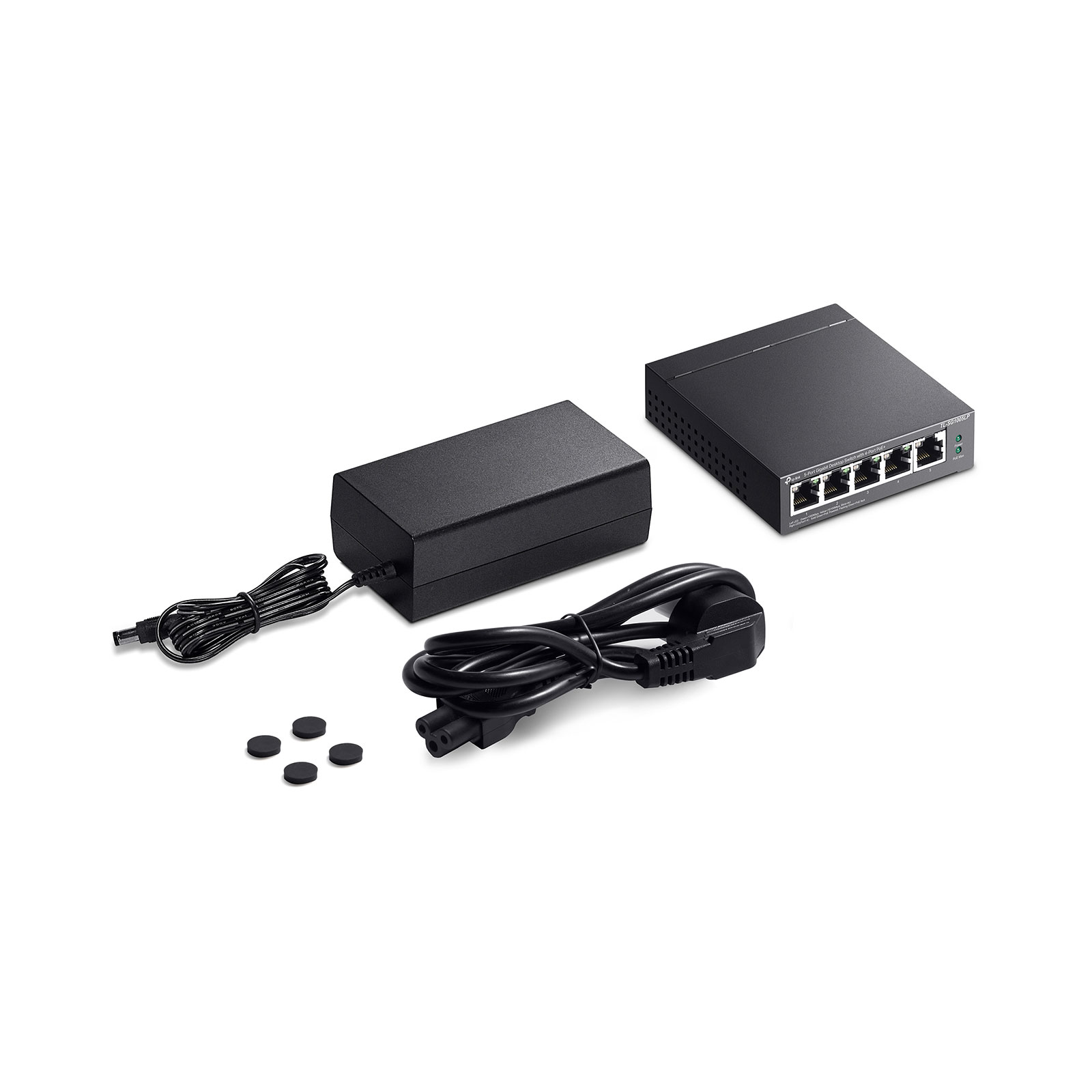

| Package Contents | Switch, Power Adapter, Installation Guide, Power Cord, Rubber Feet |
| Operating Temperature | -5°C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
