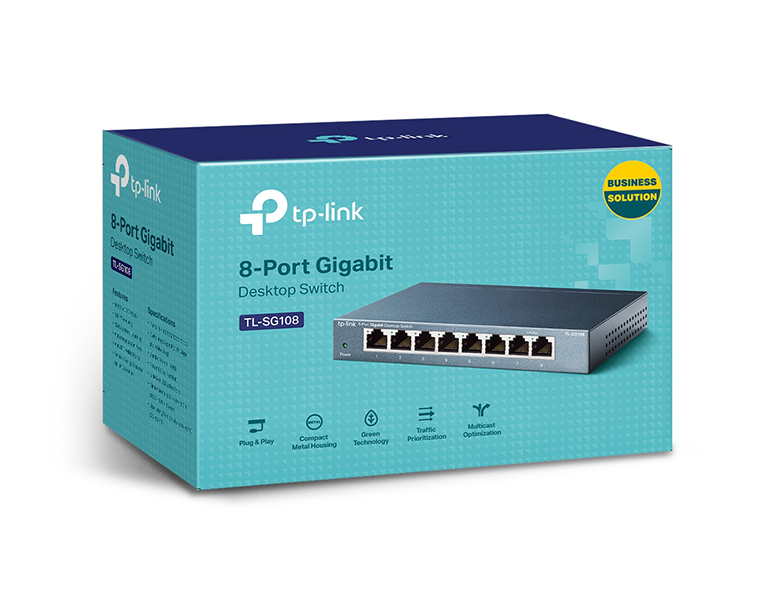

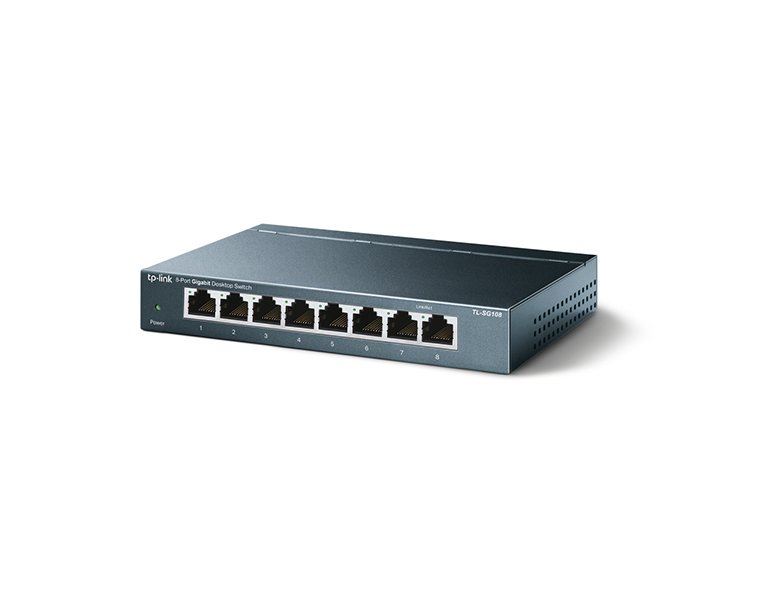

TP-LINK TL-SG108 V9 8-Port Gigabit Desktop Switch
| • 8x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX • Green Ethernet technology saves power consumption • IEEE 802.3x flow control provides reliable data transfer • Steel housing, desktop or wall-mounting design • Support 802.1p/DSCP QoS and IGMP Snooping function • Plug and play, no configuration needed • Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping |
Conveniently Conduct Business
The TL-SG108 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG108 helps you deal with your business quickly and easily, any time.
Plug and Play, No Configuration Required
A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
Eight Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG108 8-port Gigabit desktop switch. 8 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
Long Product Life with Durable Metal Casing
Interior components of TL-SG108 are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG108 delivers switching performance you can depend on.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.
| FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 ports Auto Negotiation Auto MDI/MDIX |
| Max Power Consumption | 3.75 W (220 V/50 Hz) |
| Power Supply | External Adapter (output: 5 VDC/0.6 A) |
| Forwarding Mode | Store and forward |
| Buffer Memory | 1.5Mb |
| LEDs | Power, Link/Act (indicators per port built into RJ45 port) |
| Dimensions(WxDxH) | 158 x 101 x 25 mm |
| Packet Forwarding Rate | 11.9Mpps |
| Switching Capacity | 16Gbps |
| Max Heat Dissipation | 12.79 BTU/h |
| MAC Address Table | 4K |
| Jumbo Frame | 16KB |
| Advanced Features | Green Technology 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Loop Prevention |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10% ~ 90%RH, non-condensing Storage Humidity: 5%~95%RH, non-condensing |
