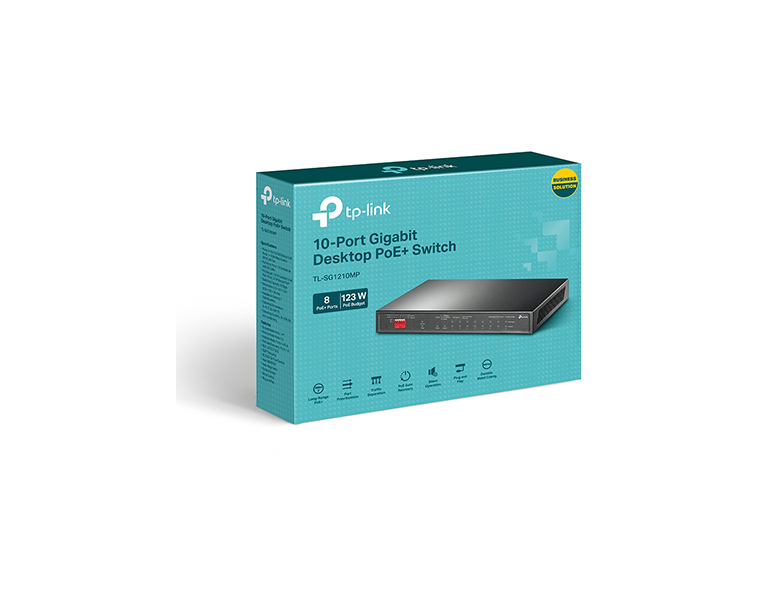

TP-LINK TL-SG1210MP V3 10-Port Gigabit Desktop Switch with 8-Port PoE+
| • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W* • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port • Up to 250 m data and power transmission range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications • Isolation Mode allows one-click client traffic separation for higher security and performance • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery. • Plug and play with no configuration required • Fanless design reduces power consumption and works silently in its location |
Dedicated 8 PoE+ Ports (123W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play, No Configuration Required
1. Plug in
2. Connect Devices
3. Enjoy
Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m *—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Keep Your Network Smooth and Safe with Port Prioritization and Separation
Port Prioritization
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.
Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| SPECIFICATIONS | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z |
| Network Ports | 9 10/100/1000 Mbps RJ45 Ports 1 Gigabit Combo Port |
| Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| PoE | PoE Standard: IEEE 802.3af, IEEE 802.3at PoE Port 1–8, up to 30 W per port PoE Power Budget 123 W* |
| Auto Negotiation | YES |
| Auto MDI/MDIX | YES |
| PoE Power on RJ45 | Power+: pin 3 & pin 6 Power -: pin 1 & pin 2 |
| Max Power Consumption | 7.93 W (220 V/50 Hz no PD connected) 141.40 W (220 V/50 Hz with 123 W* PD connected) |
| Max Heat Dissipation | 27.04 BTU/h (220 V/50 Hz no PD connected) 482.17 BTU/h (220 V/50 Hz with 123 W* PD connected) |
| Forwarding Mode | Store and Forward |
| Switch Capacity | 20 Gbps |
| MAC Address Table | 4K, Auto-learning, Auto-aging |
| Extend Mode | YES (For Ports 1–4) |
| Priority Mode | YES (For Ports 1–2) |
| Isolation Mode | YES (For Ports 1–4 / 5-8) |
| PoE Auto Recovery | YES (For Ports 1-8) |
| Flow Conrol | YES |
| Fanless | YES |
| LED | Power, Link/Act, PoE Status, PoE MAX |
| Dimensions(WxDxH) | 209 x 126 x 26 mm |
| Certification | CE, FCC |
| Package Contents | TL-SG1210MP, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
