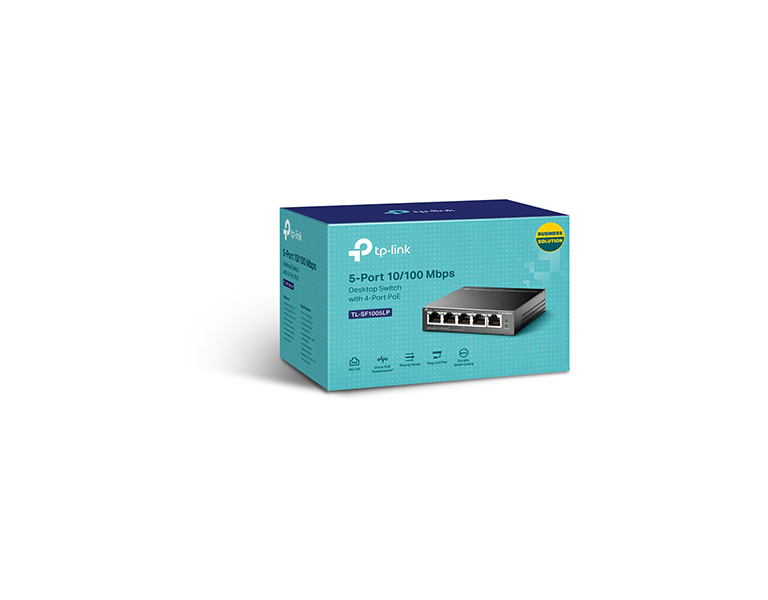

TP-LINK TL-SF1005LP V3 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
| • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port* • 41 W total PoE budget* • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application. • Automatically reboots your dropped or unresponsive PoE-powered devices. • Simply plug and play for instant connectivity with no configuration required. • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses. • Desktop / Wall-mounting |
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 41 W with 30 W max per PoE+ port. When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles△
• Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
• One-click Port Priority
Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.
• PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| Specifications | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | • 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 Power Supply: 40 W |
| Transmission Method | Store-And-Forward |
| Switching Capacity | 1 Gbps |
| Mac Address Table | 2K |
| Packet Buffer Capacity | 768 Kbit |
| Jumbo Frame | 2 KB |
| Fan Quantity | Fanless |
| Extend Mode | For Ports 1-4 |
| Priority Mode | For Ports 1-2 |
| PoE Auto Recovery | For Ports 1-4 |
| Max Power Consumption | 45.67 W |
| Max Heat Dissipation | 155.278 BTU/h |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Dimensions ( W x D x H ) | 99.8 x 98 x 25 mm |
| Certifications | FCC, CE, RoHS |
| Package Contents | Switch Power Adapter Installation Guide |
| Environment | Operating Temperature: 0 °C~40 °C Storage Temperature: -40 °C~70 °C Operating Humidity: 10% ~ 90% RH, non-condensing Storage Humidity: 5%~90% RH, non-condensing |
Disclaimers
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type
