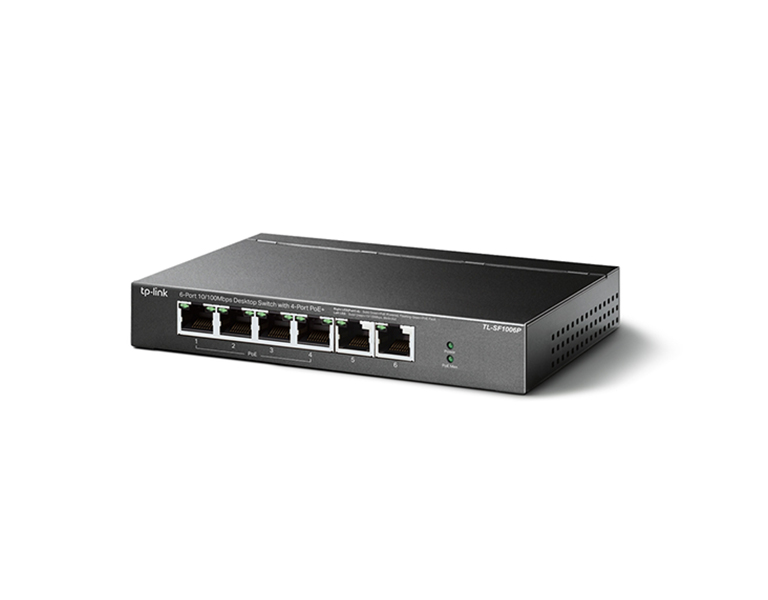

TP-LINK TL-SF1006P V3 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
| • 6x 10/100 Mbps RJ45 ports • 4x PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af/at compliant PDs • Up to 250m data and power transmitting range under Extend Mode** • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 67 W for all PoE ports* • Plug and play with no configuration required |
Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 60 μήνες |
| SPECIFICATIONS | |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Interface | 6*10/100Mbps RJ45 Ports with 4 PoE+ Ports(Port 1 to Port 4) AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100m) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port1- Port4, up to 30 W per port Power Supply: 67 W |
| Switching Capacity | 1.2 Gbps |
| Mac Address Table | 2K |
| Dimensions(WxDxH) | 158 x 101 x 25 mm |
| Fan Quantity | Fanless |
| Extend Mode | Yes |
| Priority Mode | Yes |
| PoE Auto Recovery | Yes (For Ports 1-4) |
| Transmission Method | Store-And-Forward |
| Max Power Consumption | 2.52W (220V/50Hz. no PD connected) 77.8W (220V/50Hz. with 67W PD connected) |
| Max Heat Dissipation | 8.76 BTU/h (no PD connected) 265.29 BTU/h (with 67W PD connected) |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31A) |
| LED | Power, Link/Act, PoE Status, PoE Max |
| Dimensions ( W x D x H ) | 158 x 101 x 25 mm |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1006P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Note:
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
