ΠΡΟΣΟΧΗ!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!

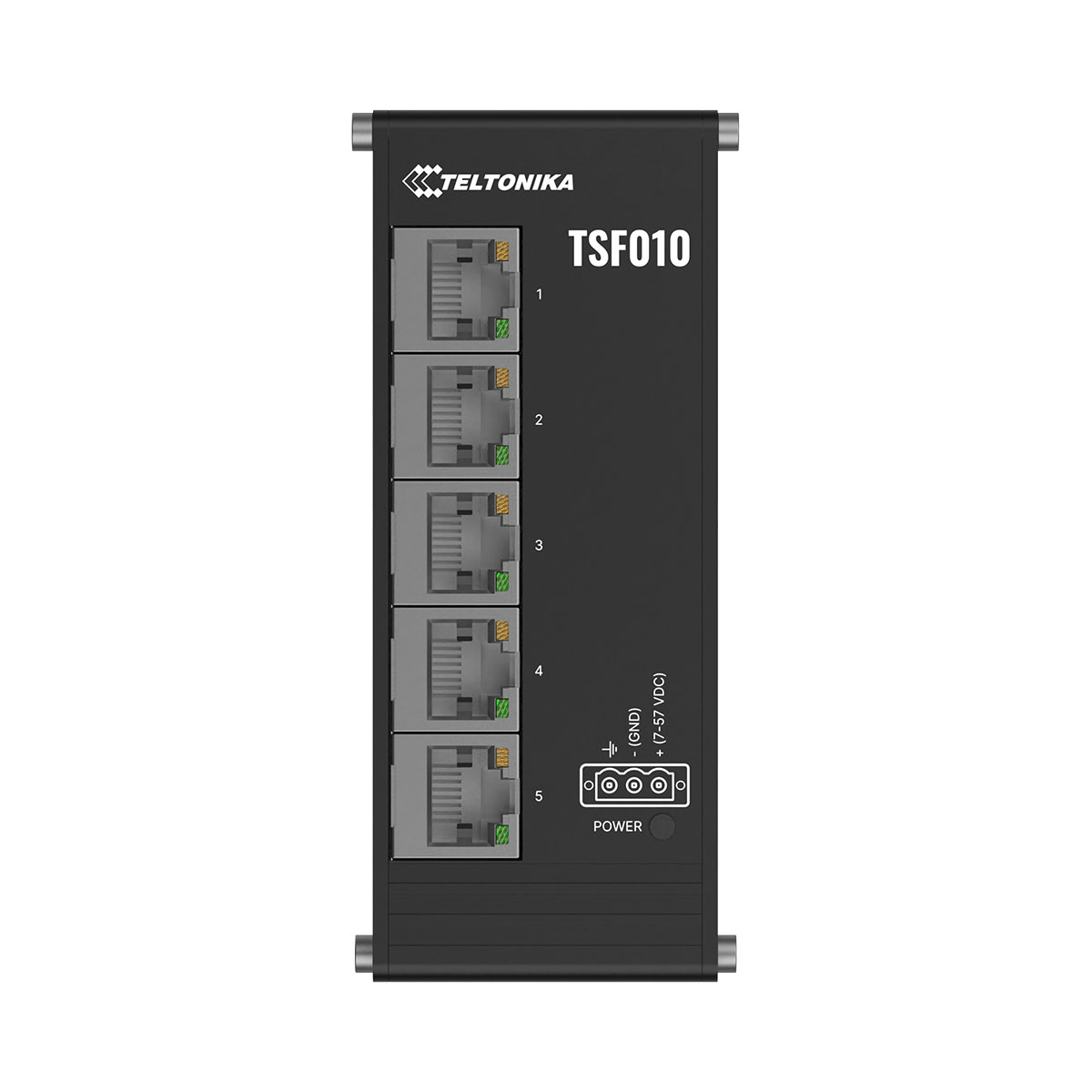

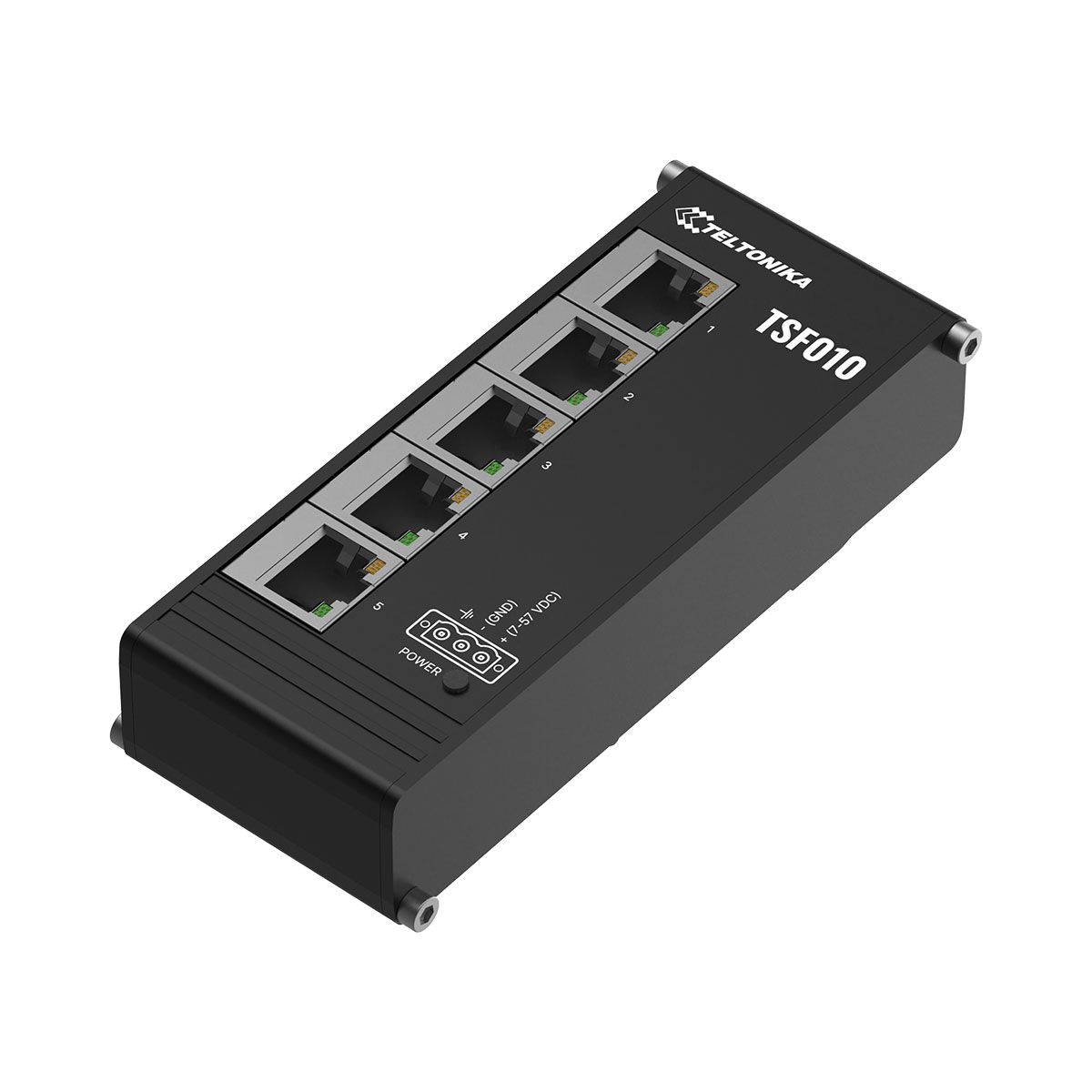

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
Χαρακτηριστικά
| Specifications | |
| Hardware | |

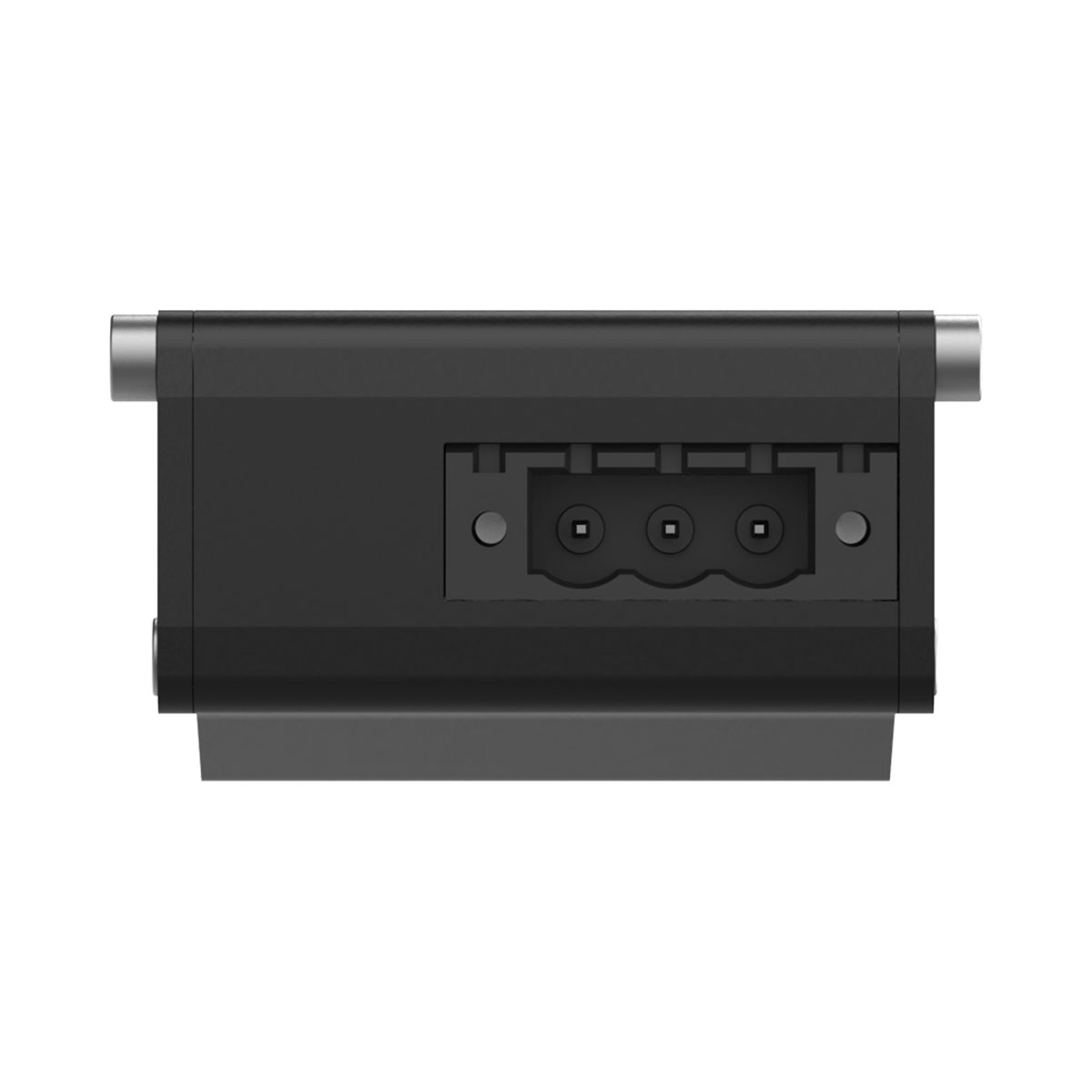

| Powering options | 3-pin industrial DC power socket, 7 – 57 VDC |
| Power consumption | Idle: 1 W / Max: 1.5 W |
| Ethernet | 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Ingress Protection Rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions | 113 x 28 x 50 mm |
| Weight | 142 g |
| Grounding | Grounding terminal on power connector |

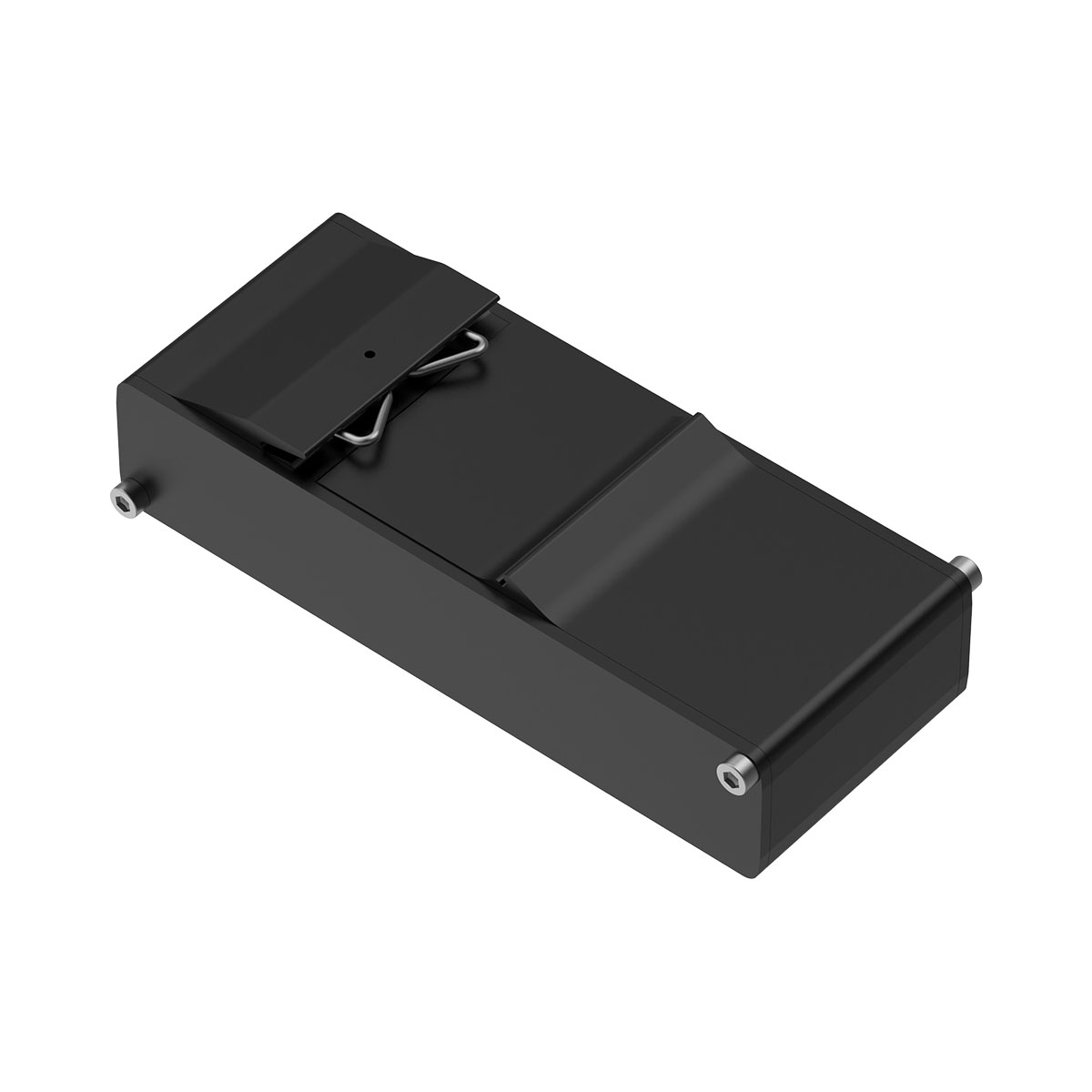

| Mounting options | Integrated DIN rail bracket |
| Performance | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
