TP-LINK TL-SG1016DE V7 16-Port Gigabit Easy Smart Switch

Κωδικός προϊόντος:
TL-SG1016DE
Κατασκευαστής Tp-link
Τιμή πώλησης: 89,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 71,77 €
Διαθεσιμότητα:
Ημερομηνία Παραλαβής: 12-12-2024

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών

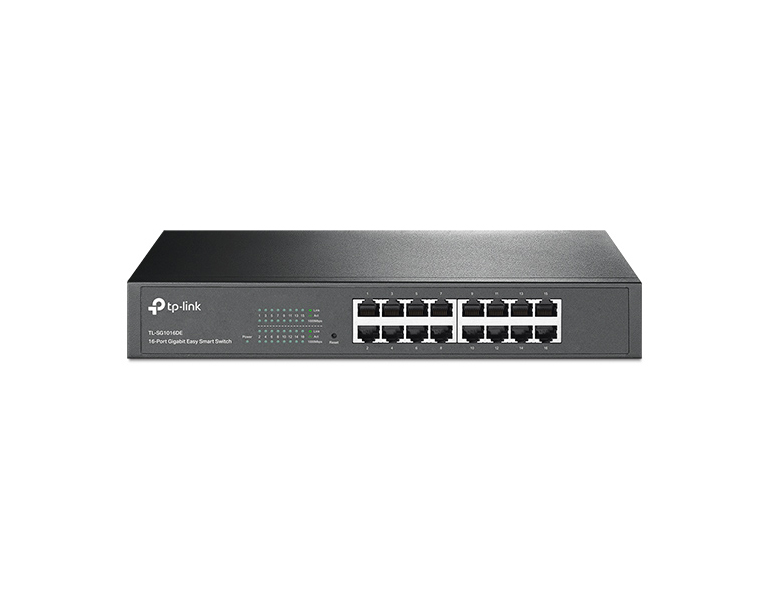

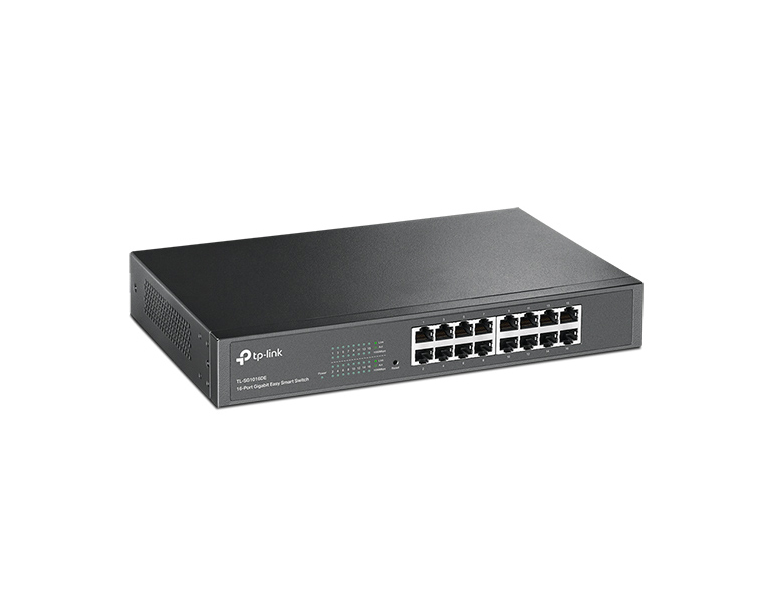

TP-LINK TL-SG1016DE V7 16-Port Gigabit Easy Smart Switch
• 16 10/100/1000Mbps RJ45 ports
• Provides network monitoring, traffic prioritization and VLAN features
• Green technology reduces power consumption
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration

What This Product Does
The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers Port Priority/802.1P Priority and DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save power consumption, making it an eco-friendly solution for your business network.

Effective Management
TP-LINK’s Gigabit Easy Smart switch, TL-SG1016DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1016DE 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016DE can automatically detect the link status of each port and reduce the power consumption of idle ports.

Power Budget According to Cable Length
Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016DE analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Easy to Use
TL-SG1016DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

1.DSCP QoS is for V2 and later version.

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 60 μήνες
HARDWARE FEATURES
General
Interfaces • 16 10/100/1000 Mbps RJ45
• AUTO Negotiation/AUTO MDI/MDIX
Standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Performance
Switching Capacity 32 Gbps
Forwarding Rate 23.8 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
Physical & Environment

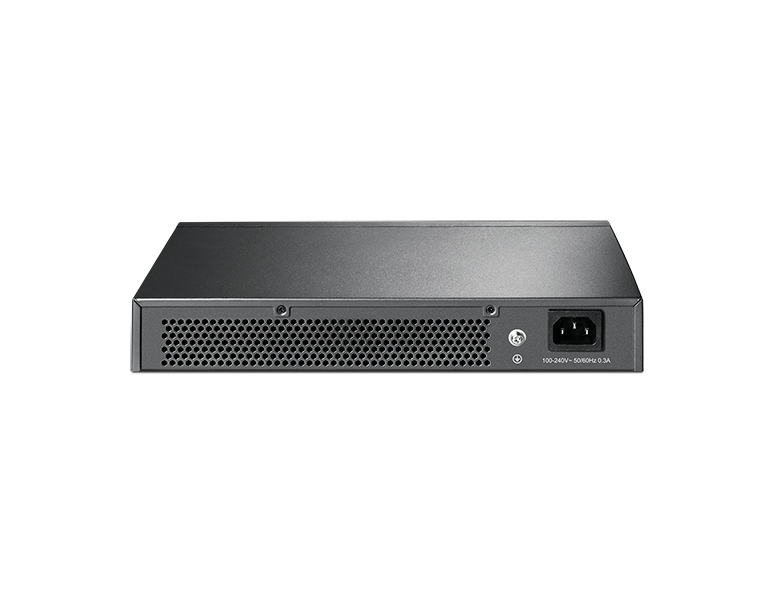

Power Supply 100-240 V, 50/60 Hz
Maximum Power Consumption 10.27 W
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)
• 1000BASE-T: UTP category 5e or above cable (maximum 100m)
Dimensions (W×D×H) 294 × 140 × 44 mm
Maximum Heat Dissipation 34.92 BTU/h
Fan Quantity Fanless
Installation Desktop/Rack Mountable
Operating Temperature 0°C-40°C
Storage Temperature -40 °C–70 °C
Operating Humidity 10%–90%RH, non-condensing
Storage Humidity 5%–90%RH, non-condensing
Certification CE, FCC, RoHS
Software Features
L2 Features • IGMP Snooping
• Link Aggregation
• Port Mirroring
• Cable Test
• Loop Prevention
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs) • MTU/Port-Based/802.1Q tag VLAN
QoS • 4 Priority Queues
• Support Port-based/802.1p/DSCP priority
• Bandwidth Control
• Storm Control
Management • Web-based Graphic User Interface (GUI)
• Easy Smart Configuration Utility
