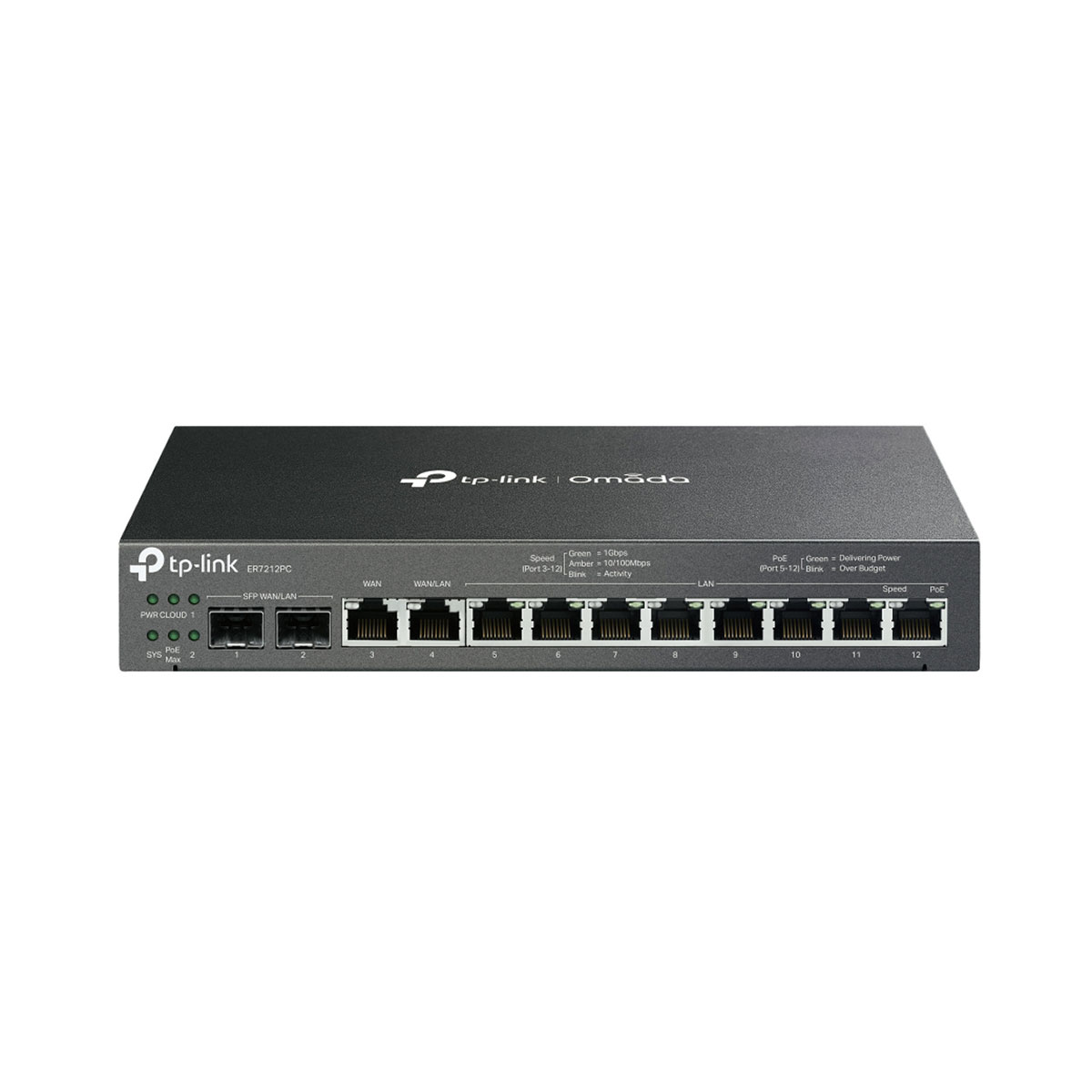

TP-LINK ER7212PC V2 Omada 3-in-1 Gigabit VPN Router
TP-LINK ER7212PC V2 Omada 3-in-1 Gigabit VPN Router
|
• 3-in-1 Router: Integrates 8× PoE+ ports with 110W PoE budget and centralized management capability. Up to 22 Omada devices（2 gateway，20 switches and EAPs in total）can be centrally managed. |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
| Specifications | |
| Hardware | |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |

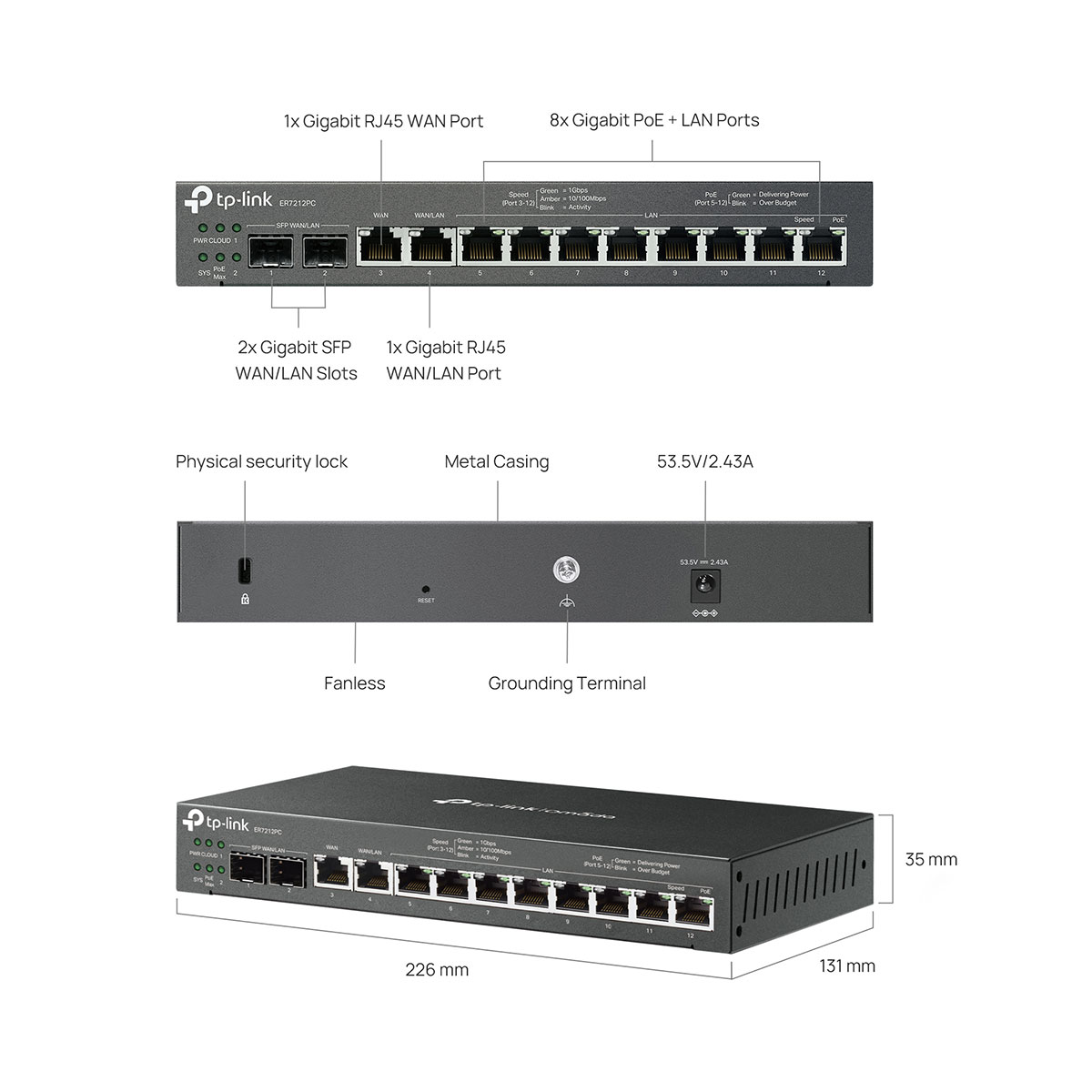

| Interface | 2 Gigabit SFP WAN/LAN ports 1 Gigabit WAN port 1 Gigabit LAN/WAN port 8 Gigabit LAN ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset button |
| Power Supply | 53.5VDC/2.43A Adapter |
| Flash | 32Mbit Nor+8GB eMMC |
| DRAM | 2 GB DDR4 |
| PoE | 8 ports PoE+ output, 110 W PoE Budget |
| Surge Protection | 6kV |
| Dimensions ( W x D x H ) | 226 × 131 × 35 mm |
| Fan | Fanless |
| Enclosure Materials | Steel |
| Installation | Desktop/Wall-mount/Rack-mount |
| Max Power Consumption | 131 W (110 V/60 Hz) (With 110 W PD connected) |
| SDN Support | |
| Integrated Controller Software | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration Management up to 22 Omada devices (2 gateways, 20 switches and EAPs in total) OpenAPI |
| Performance | |
| Concurrent Session | 50,000 |
| New Sessions /Second | 3,800 |
| Static IP NAT Throughput (Upload /Download) | 940.2 Mbps / 947.5 Mbps |
| DHCP NAT Throughput (Upload /Download) | 947.8 Mbps / 948.6 Mbps |
| PPPoE NAT Throughput (Upload /Download) | 943.1 Mbps / 942.6 Mbps |
| L2TP NAT Throughput (Upload /Download) | 898.4 Mbps / 915.8 Mbps |
| PPTP NAT Throughput (Upload /Download) | 909.7 Mbps / 912.8 Mbps |
| 66 Byte Packet forwarding rate | 1,453,459 pps / 1,453,459 pps |
| 154,069 pps / 156,977 pps | 81,272 pps / 81,272 pps |
| IPSec VPN Throughput (AES256) | 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | Unencrypted: 845.3 Mbps Encrypted: 333.2 Mbps |
| PPTP VPN Throughput | Unencrypted: 1012.6 Mbps Encrypted: 401.4 Mbps |
| Basic Functions | |
| WAN Connection Type | Static IP Dynamic IP PPPoE PPTP L2TP |
| DHCP | DHCP Server DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| IPTV | IGMP v2/v3 Proxy |
| IPv6 | √ |
| VLAN | 802.1Q VLAN |
| Transmission | |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup Online Detection |
| NAT | Multi-Net NAT Virtual Server NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| VPN | |
| IPSec VPN | 20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 SHA1, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10)1 16 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10)1 16 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (10)1 16 OpenVPN Tunnels |
| Security | |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | URL Filtering |
| Access Control | Source/Destination IP Based Access Control |
| Authentication | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher/ SMS / Radius) External Radius Sever External Portal Sever Facebook |
| Management | |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Syslog Support |
| Others | |
| Certification | CE, FCC, RoHS |

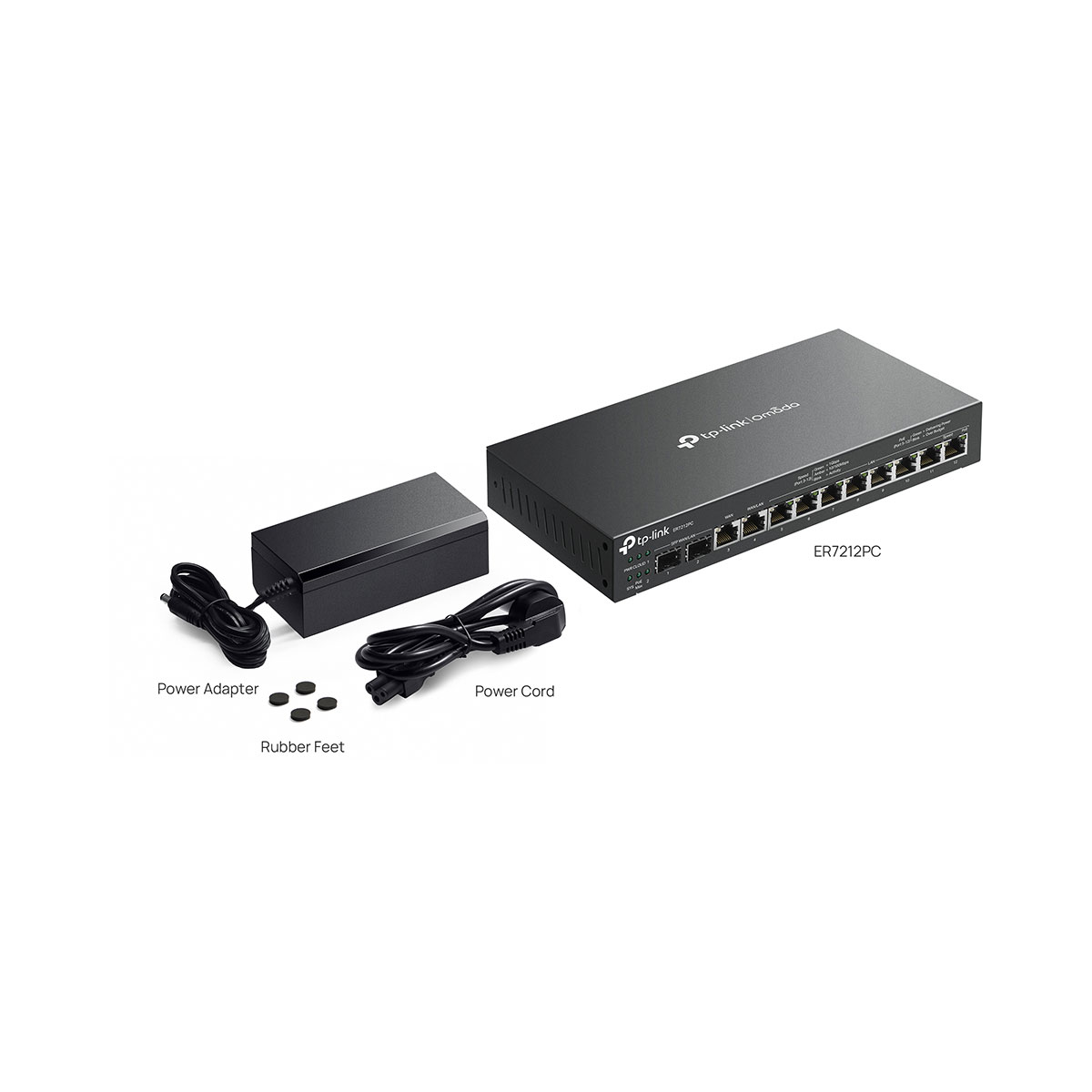

| Package Contents | ER7212PC, Power Adapter, Power Cord, Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -5 °C to 45 °C Storage Temperature: -40 °C to 70 °C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
