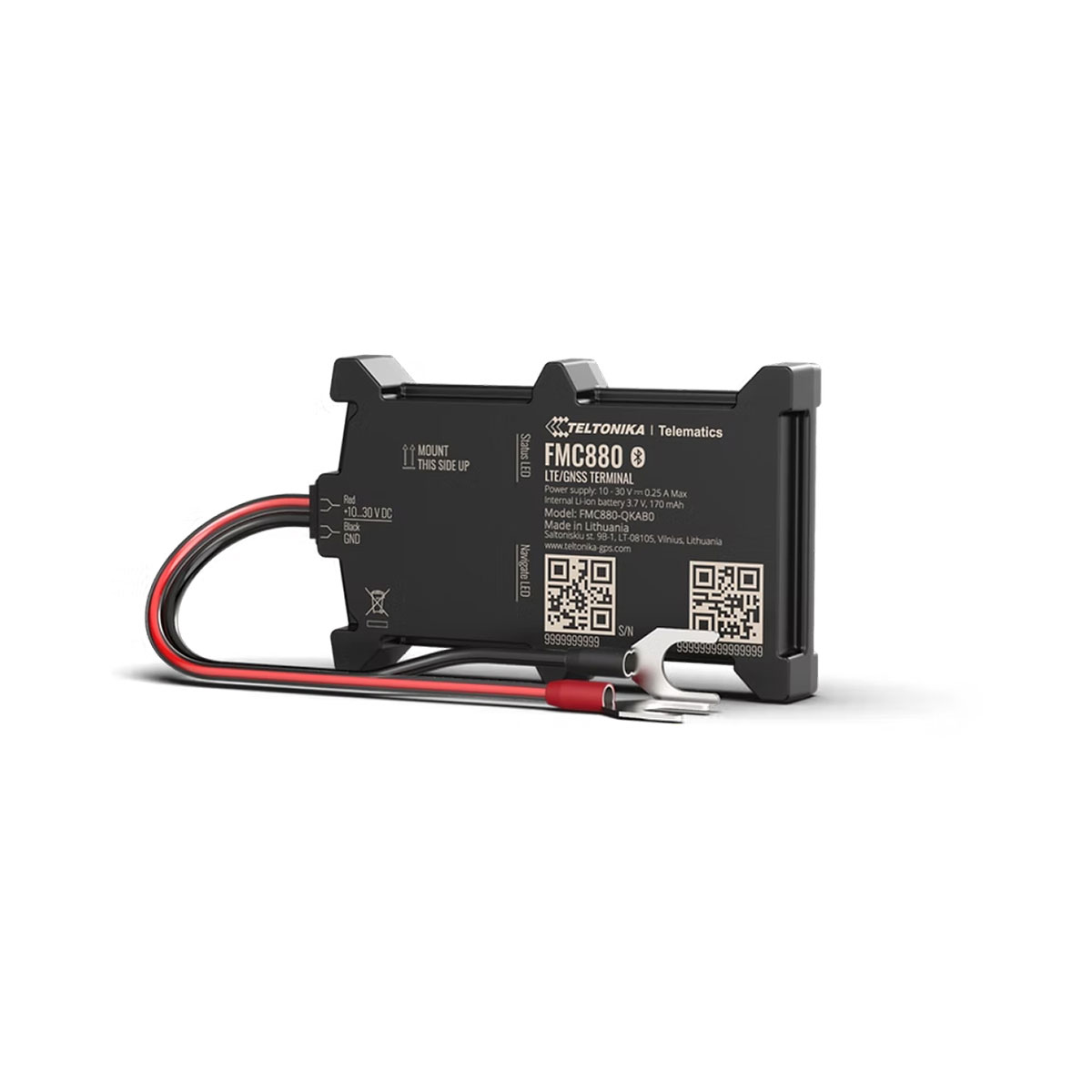

Teltonika FMC880 GPS Tracker Water-Resistant High GNSS Precision Battery-Mounted 4G LTE Cat1
Teltonika FMC880 GPS Tracker Water-Resistant High GNSS Precision Battery-Mounted 4G LTE Cat1
Teltonika FMC880 tracker is waterproof device with 4G LTE Cat M1 and BLUETOOTH® connectivity. An extremely fast and easy installation allows connecting device in a few minutes! No specific knowledge or engineers are required for installation. This vehicle GPS trackers has a higher IP65 rating and a slim design which is essential for under-bonnet installation. Thanks to that, FMC880 tracker perfectly suits for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other industries, where simple integration is a must. It is a perfect solution for real time monitoring, specially for beginners and those, who are looking for new opportunities to expand their businesses. FMC880 device has a built-in accelerometer, which provides accurate crash trace data. This tracker also supports various BLUETOOTH® Low Energy sensors, beacons, firmware and configuration update via BLUETOOTH®. All of that increase the number of possible use scenarios in any market. It is quick to install, easy to use and ready to start tracking in minutes!
| Specifications | |
| Module | |
| Name | FMC880-QJAB0: Quectel EG915U-EU with AG3335 FMC880-QKAB0: Quectel EG915U-LA with AG3335 |
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
| GNSS | |
| GNSS | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS* L5: GPS, GALILEO, BEIDOU |
| Receiver | L1: 75 channel L5: 60 channel |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 1.5 m CEP |
| Velocity accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | FMC880-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 FMC880-QKAB0: LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Transmit power | Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Bluetooth: 5.54±2dBM Bluetooth LE: -4.26±2dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V |
| Internal fuse | 3 A, 125 V |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support |
| Physical | |
| Dimensions(LxWxH) | 92.5 x 57.6 x 14 mm |
| Weight | 63 g |
| Interface | |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 USB Micro B |
| Cellular antenna | Internal High Gain |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating temperature (with battery) |
0 °C to +40 °C |
| Storage temperature (with battery) |
-20 °C to +45 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, Teltonika Configurator (USB, Bluetooth® wireless technology) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & Approvals | |
| Regulatory | E-Mark, RoHS, REACH, RCM, Declaration of IMEI assignment, ICASA, CITC, IMDA |
