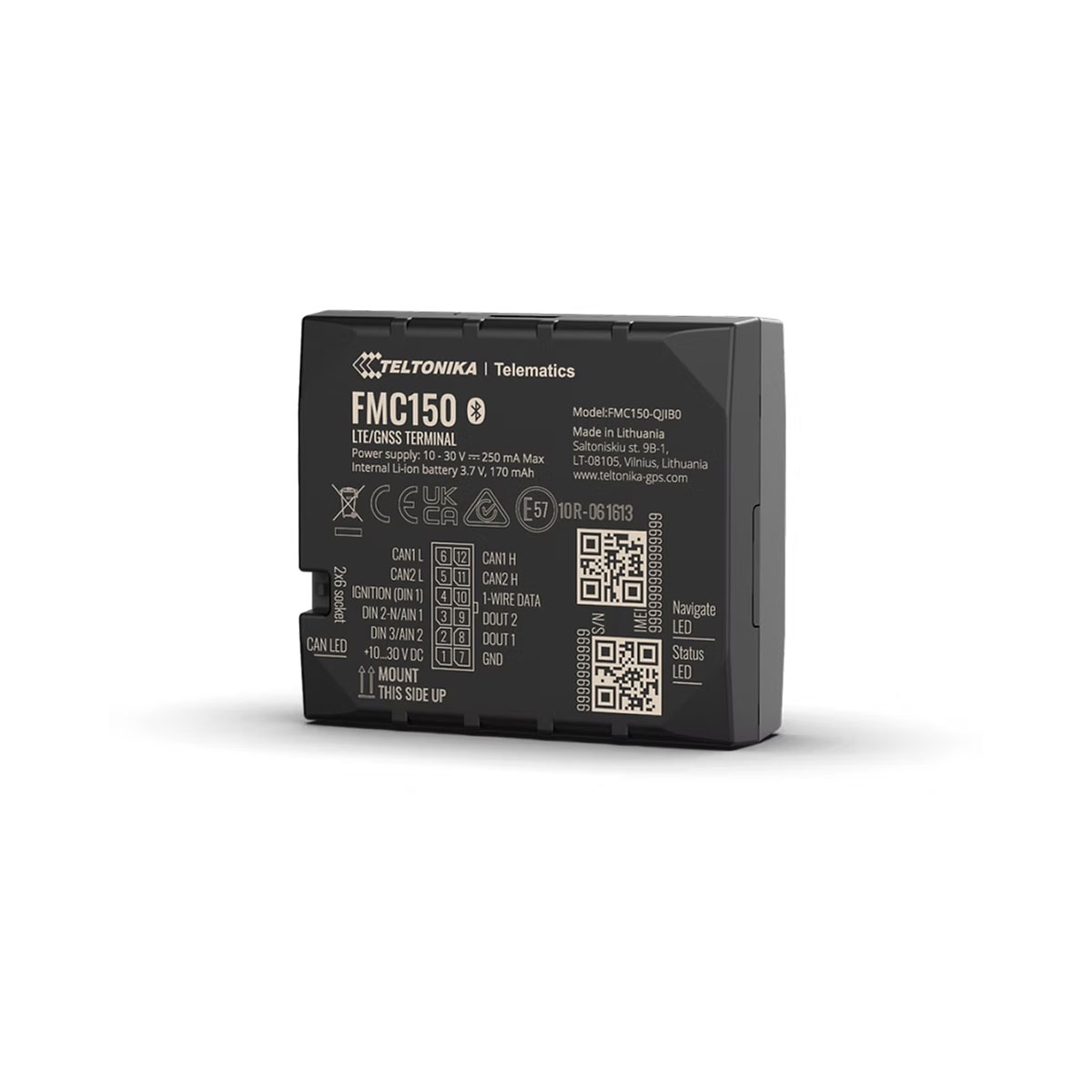

Teltonika FMC150 Advanced 4G Tracker with Integrated CAN Data Processor
Κωδικός προϊόντος:
FMC150
109,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
87,90 €
Άμεσα διαθέσιμο
Teltonika FMC150 Advanced 4G Tracker with Integrated CAN Data Processor
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
FMC150 is an ADVANCED 4G CAT 1/GSM/GNSS/BLUETOOTH®LE tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks and buses. With the current software version FMC150 can be used in advanced applications as logistics, delivery services, utility transport, car sharing and more. For now, one SW option is available to fulfil your business demands:
A default FMC150 software version with LV-CAN parameters, including fuel level, consumption, odometer, CAN speed, pedal position, Supported vehicle types: light vehicles, electric vehicles, trucks and buses.
Χαρακτηριστικά
| Specifications | |
| Module | |
| Name | FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500 FMC150-QKIB0: Quectel EG915U-LA with Teltonika TM2500 |
| Technology | LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 CEP |
| Velocity Accuracy | < 0.1m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | LTE Cat 1, GSM |
| 2G bands | FMC150-QJIB0: GSM: B2/B3/B5/B8 FMC150-QKIB0: GSM: B2/B3/B5/B8 |
| 4G bands | FMC150-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28 FMC150-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66 |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| BLUETOOTH® technology | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support |
| Physical specification | |
| Dimensions(LxWxH) | 65 x 56.6 x 20.6 mm |
| Weight | 55 g |
| Interface | |
| Digital Inputs | FMC150-QJIB0: 3 FMC150-QKIB0: 2 |
| Negative Inputs | FMC150-QJIB0: 1 (Digital Input 2) FMC150-QKIB0: - |
| Impulse Inputs | FMC150-QJIB0: 2 (Digital Input 1, Digital Input 2) FMC150-QKIB0: 1 (Digital Input 1) |
| Digital Outputs | FMC150-QJIBO: 2 FMC150-QKIBO: 3 |
| Analog Inputs | FMC150-QJIB0: 2 FMC150-QKIB0: 1 |
| CAN interfaces | 2 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 3 status LED lights |
| SIM | Micro-SIM or eSIM |
| Memory | 128MB internal flash memory |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | -0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| CAN Data | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, RCM, RoHS, REACH |
