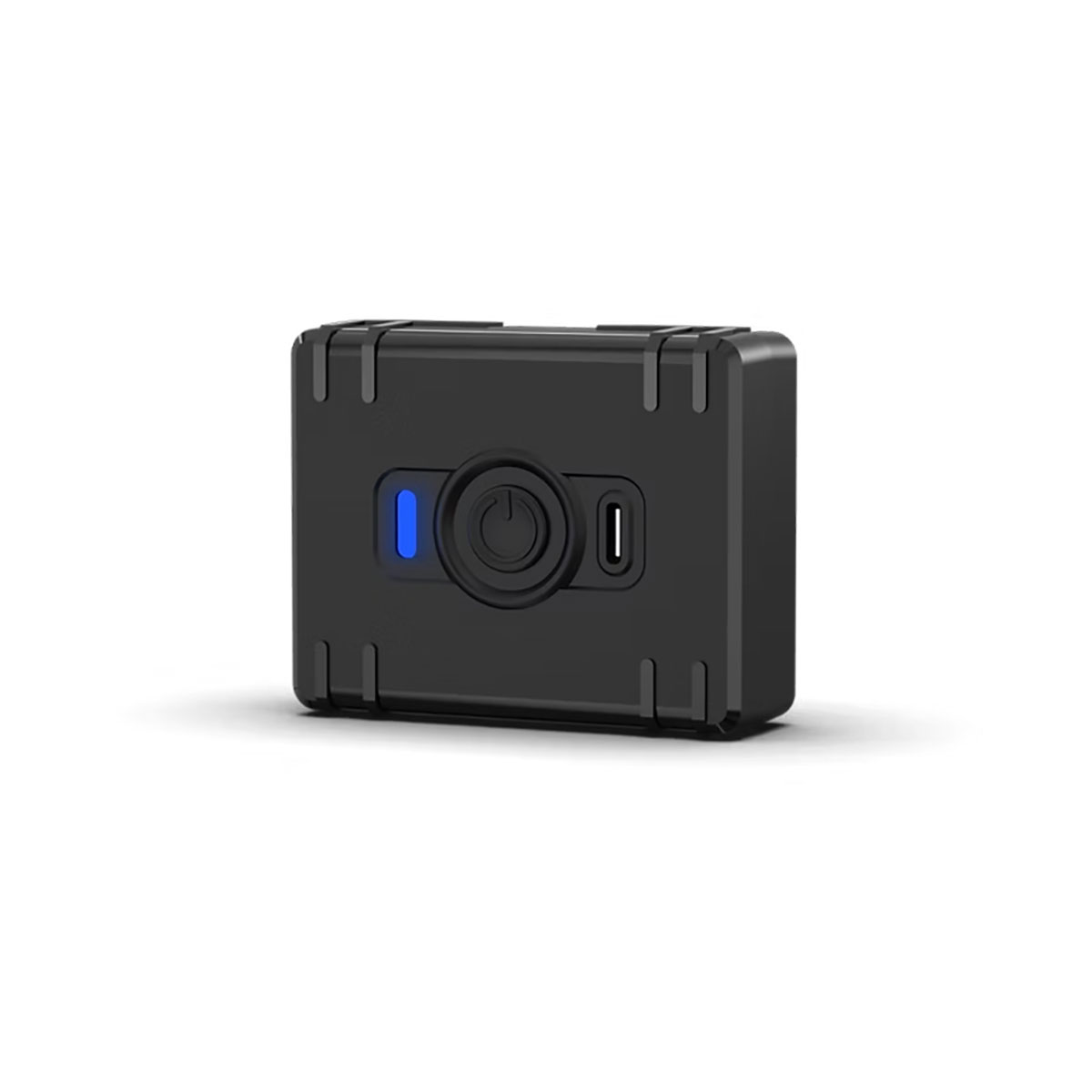

Teltonika ATC700 Mini Asset Tracker Rechargeable, 4G LTE Cat1, IP65
Κωδικός προϊόντος:
ATC700
82,50 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
66,53 €
Άμεσα διαθέσιμο
Teltonika ATC700 Mini Asset Tracker Rechargeable, 4G LTE Cat1, IP65
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Track, charge, repeat
The device comes with a 1,000 mAh rechargeable battery to provide reliable power and uninterrupted tracking.
Back-up power support
Compatibility with power banks ensures device operation during prolonged activities or in remote locations.
Various button usage options
A multi-action button can be used for different scenarios, such as to activate tracking or act as a panic button.
Reliable operation, effortless installation
Protection in extreme weather conditions and fast device set-up without any wires.
Χαρακτηριστικά
| Specifications | |
| Module | |
| Technology | LTE CAT 1/GSM/GPRS/GNSS |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receiver | 135 tracking/acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 1.8 m CEP |
| Warm start | < 25 s |
| Hot start | < 1 s |
| Cellular | |
| Technology | LTE CAT 1/GSM |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Tramsmit power | Class 4 for GSM850/900: 33±4dBM Class 1 for GSM1800/1900: 30±2dBM Class 3 for LTE-FDD: 23±2dBM |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP) |
| Data codec |
|
| Codec support | Codec 8 Extended |
| Power | |
| Internal battery | 1000 mAh Li-Po battery, 3.7V (3.7Wh) |
| Physical specification | |
| Dimensions | 62.2 x 54.2 x 20.3 mm (L x W x H) |
| Weight | 71 g |
| Operating environment | |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature (with battery) |
-10 °C to +25 °C for 1 month 0 °C to +25 °C for longer than 3 months |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65* *(internally tested, not certified). IP68 - in development. |
| Battery charge temperature |
0°C to +45°C |
| Battery discharge temperature |
-20°C to +60°C |
| Battery storage conditions |
-10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year |
| Interface |
|
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 USB Type-C |
| LED indication | 1 status RGB LED light |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Movement-based tracking, Periodic tracking, Scheduler, Alarm button, Power bank support, Configurable LED indication |
| Sleep modes | Online sleep, Power off sleep |
| Configuration and firmware update | FOTA WEB, Teltonika Configuration Tool (TCT) |
| SMS | Configuration, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Certification & Approvals | |
| Regulatory | CE RED, UKCA, E-Mark, RCM |
