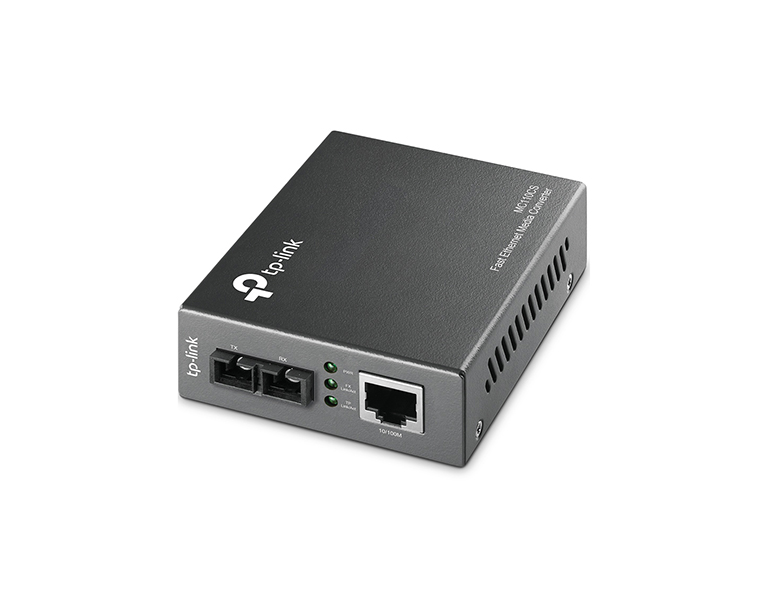

TP-LINK MC110CS V6 10/100Mbps Single-Mode Media Converter
| • Complies with 802.3u 10/100Base-TX, 100Base-FX standards • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Extends fiber distance up to 20km |
What This Product Does
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
| SPECIFICATIONS | |
| Standards | IEEE 802.3u, IEEE 802.3x |
| Interface | 1 100Mbps SC port 10/100Mbps RJ45 port |
| Transmission Distance | 20km |
| Transmission Media | Single-mode Fiber, TP |
| Wave Length | 1310nm |
| Dimensions (WxDxH) | 94.5 x 73.0 x 27.0 mm |
| Environment | Operating Temperature: 0°C-40°C (32°F-104°F) Storage Temperature: -40°C-70°C (-40°F-158°F) Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing |
| Power Supply | 9V/0.6A |
| Max Power Consumption | 2.4W |
| Certifications | CE, FCC |
