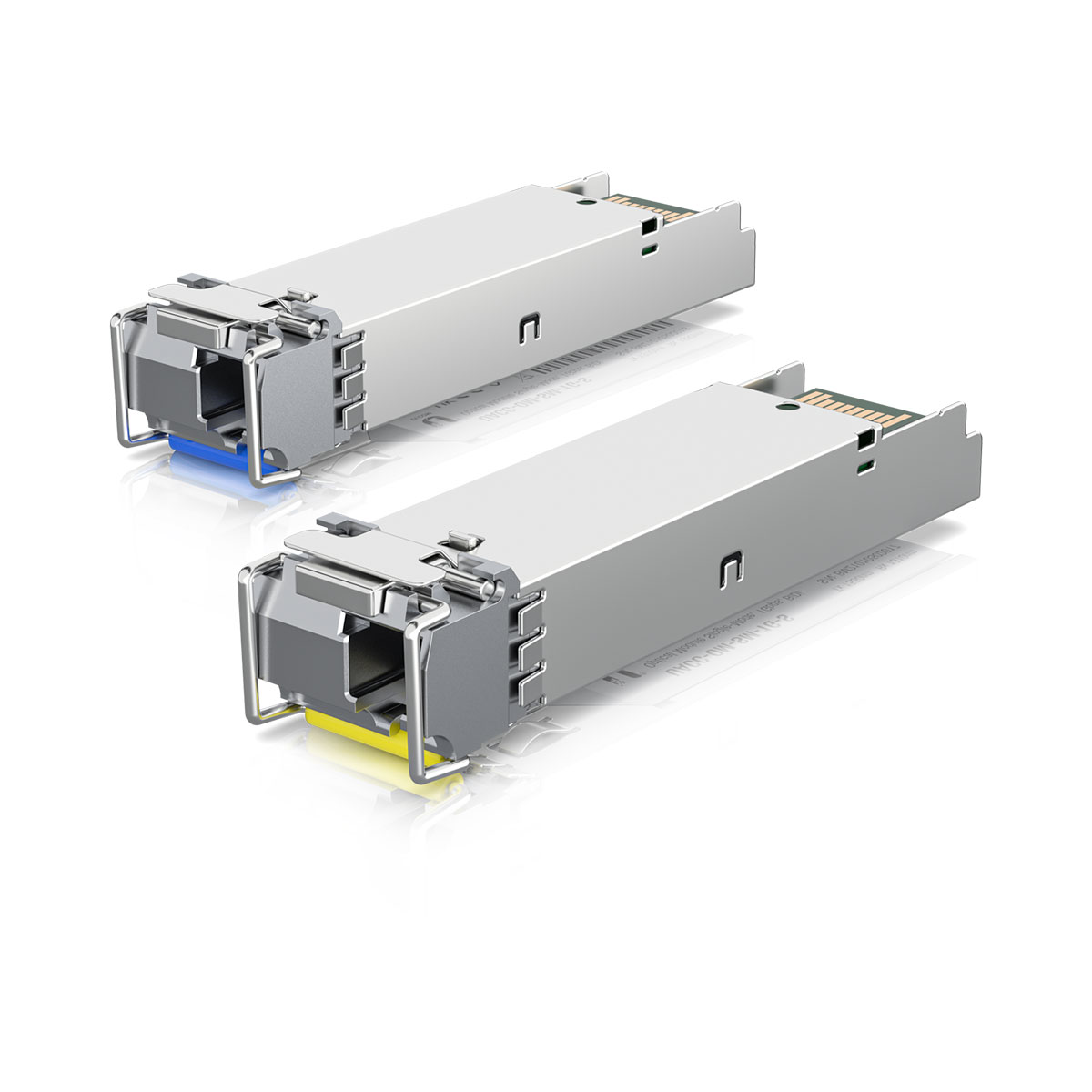

Ubiquiti UACC-OM-SM-1G-S-2 U Fiber, Single-Mode Module, 1G, BiDi, 2-Pack
Κωδικός προϊόντος:
UACC-OM-SM-1G-S-2
31,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
25,00 €
Άμεσα διαθέσιμο
Ημερομηνία επόμενης παραλαβής: 03/07/2025
Ubiquiti UACC-OM-SM-1G-S-2 U Fiber, Single-Mode Module, 1G, BiDi, 2-Pack
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
The 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.
Features:
• 1.25 Gbps throughput
• Simplex LC connector
• Supports connections up to 3 km
• Supported media: SM Fiber (Fiber cable is not included)
Χαρακτηριστικά
| Specifications | |
| Supported Media | Single-Mode Fiber |
| Format | SFP |
| Transmission speed | 1 Gbps |
| Wavelength - Tx/Rx | 1310 / 1550, 1550 / 1310 nm |
| Transfer type | WDM |
| Cable Distance | 3 km |
| Optical Connectors | (1) LC |
| Compatibility | Universal |
| DDMI- diagnostics | Yes |
| Max. Power Consumption | 1W |
| Operating Temperature | 0 to 70° C |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
