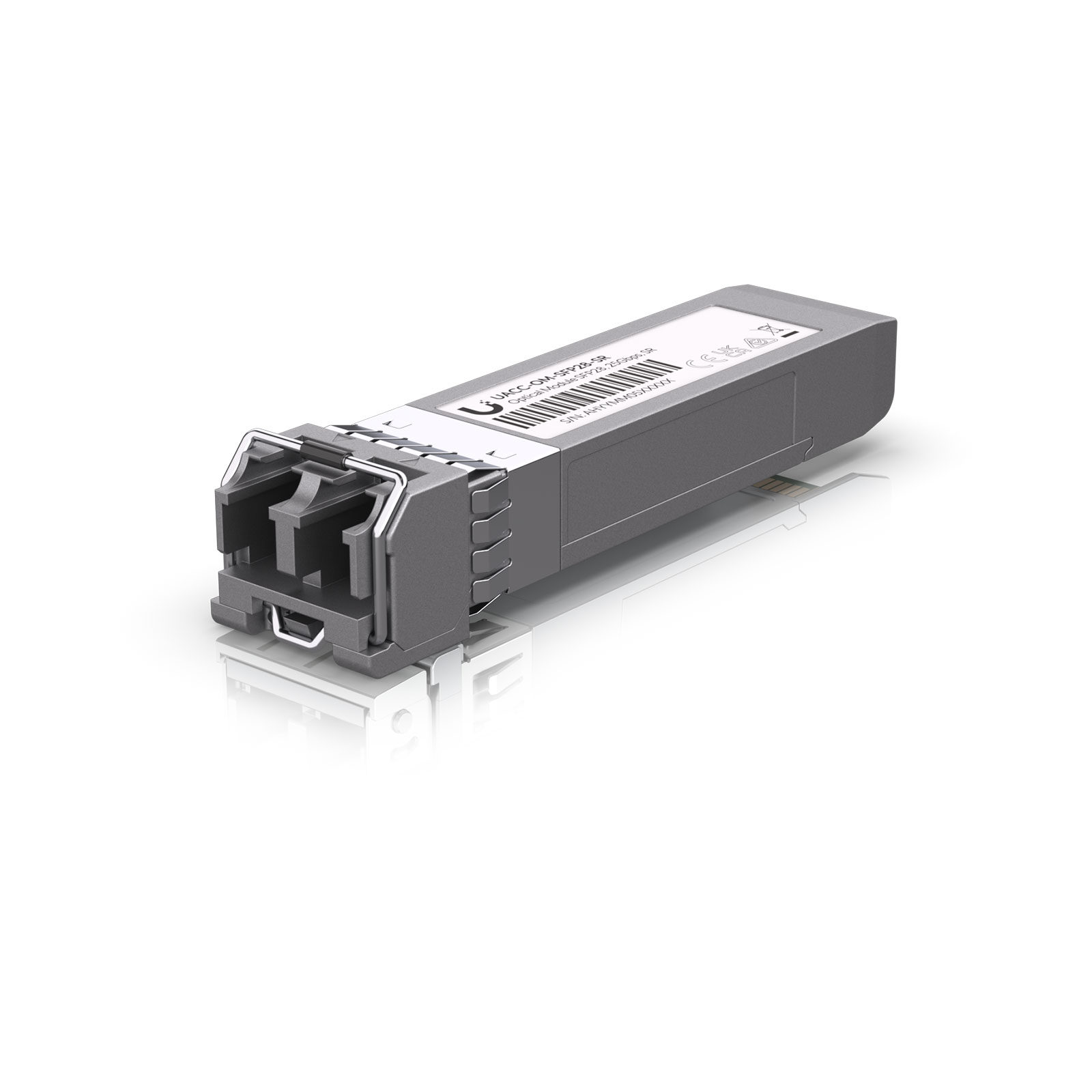

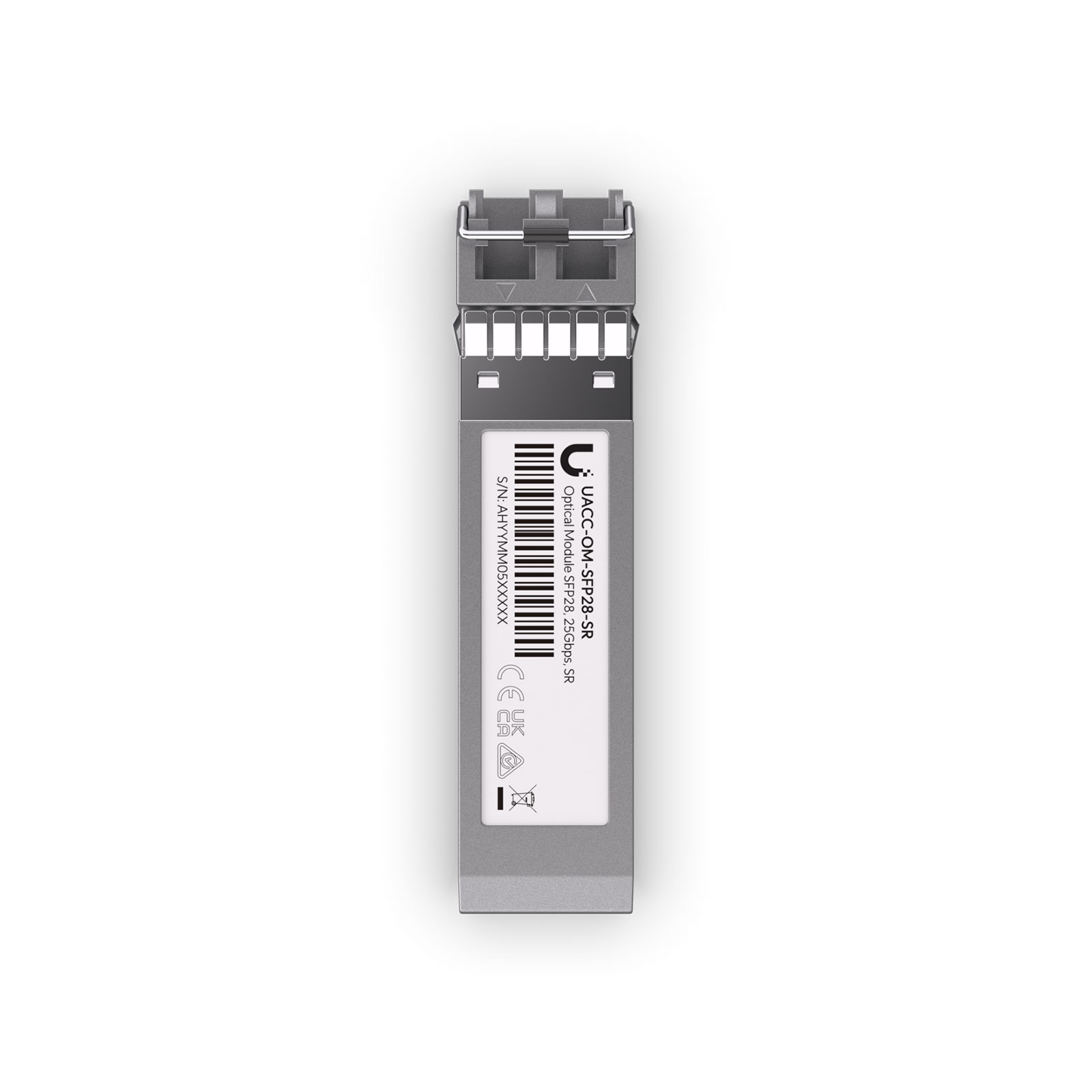

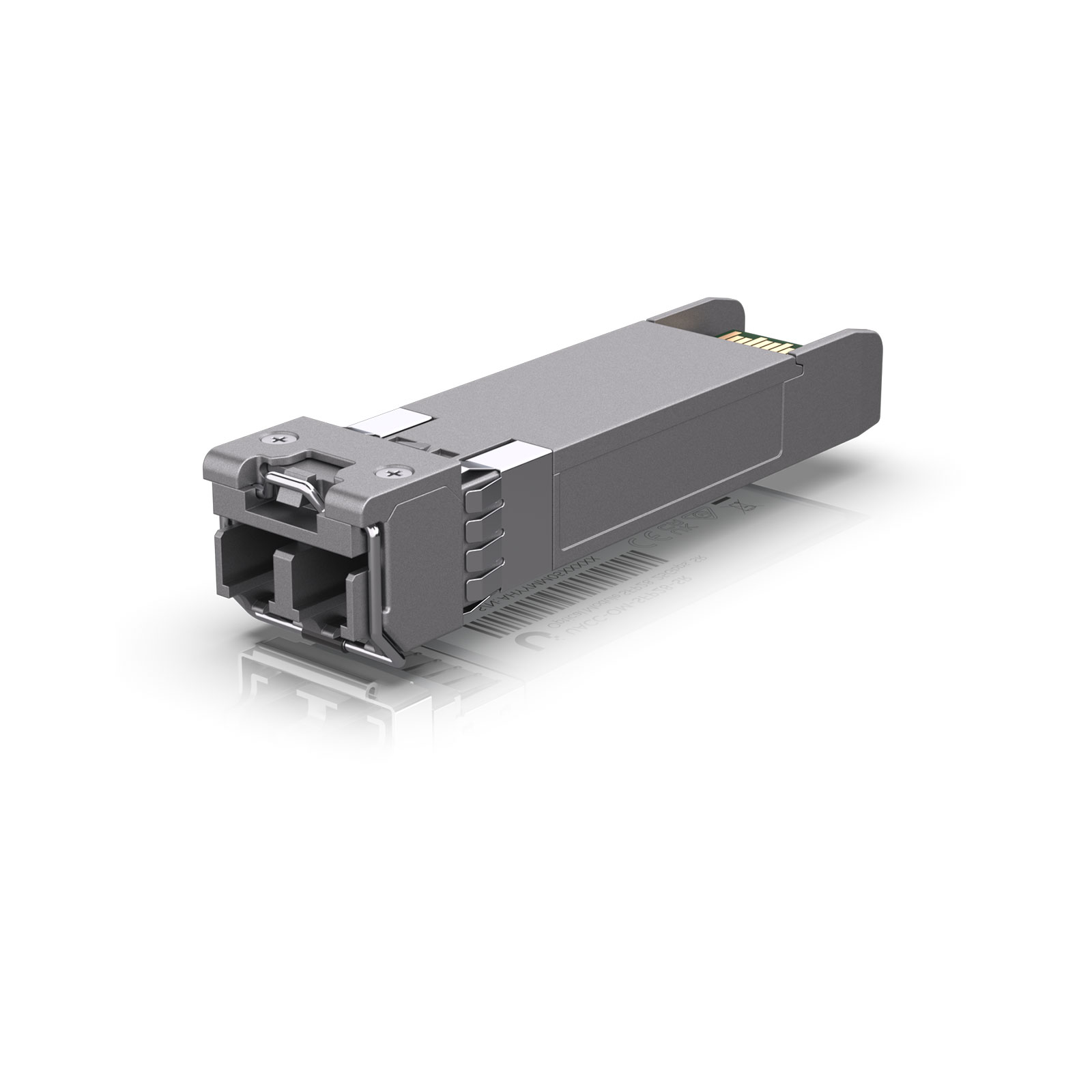

Ubiquiti UACC-OM-SFP28-SR 25 Gbps, Multi-Mode, 100m
Κωδικός προϊόντος:
UACC-OM-SFP28-SR
63,20 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
50,97 €
Άμεσα διαθέσιμο
Ubiquiti UACC-OM-SFP28-SR 25 Gbps, Multi-Mode, 100m
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
The 25 Gbps Multi-mode Optical Module is an optical transceiver capable of sustaining 25 Gbps throughput over a fiber connection. After connecting the module to a compatible fiber line, simply insert it into any SFP28 port to experience true 25 Gbps speed.
Features:
• 25 Gbps throughput
• SFP28-compatible
• Designed for cable deployments spanning up to 100 m (Fiber cable is not included)
Χαρακτηριστικά
| Specifications | |
| Supported Media | Multi-Mode Fiber |
| Connector Type | (2) LC |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Data Rate | 25 Gbps |
| Distance | 100 m |
| Max. Power Consumption | 0.8W |
| Compatibility | Universal |
| DDMI- diagnostics | Yes |
| Operating temperature | 0 to 70° C |
| Model Comparison | ||||||
| UF-MM-1G | UF-MM-10G | UF-SM-1G-S | UF-SM-10G | UF-SM-10G-S | UF-RJ45-1G | |
| Supported Media | Multi-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber S | Single-Mode Fiber | Single-Mode Fiber | Copper |
| Connector Type | (2) LC | (2) LC | (1) LC | (2) LC | (1) LC | RJ45 |
| BiDi | ✓ | ✓ | ||||
| TX Wavelength | 850 nm | 850 nm | Blue: 1310 nm Yellow: 1550 nm |
1310 nm | Blue: 1270 nm Red: 1330 nm |
|
| RX Wavelength | 850 nm | 850 nm | Blue: 1550 nm Yellow: 1310 nm |
1310 nm | Blue: 1330 nm Red: 1270 nm |
|
| Data Rate | 1.25 Gbps SFP | 10 Gbps SFP+ | 1.25 Gbps SFP | 10 Gbps SFP+ | 10 Gbps SFP+ | 10/100/1000 Mbps |
| Cable Distance | 550 m | 300 m | 3 km | 10 km | 10 km | 100 m |
